RAM Double U-Bolt Rail Mount for Larger

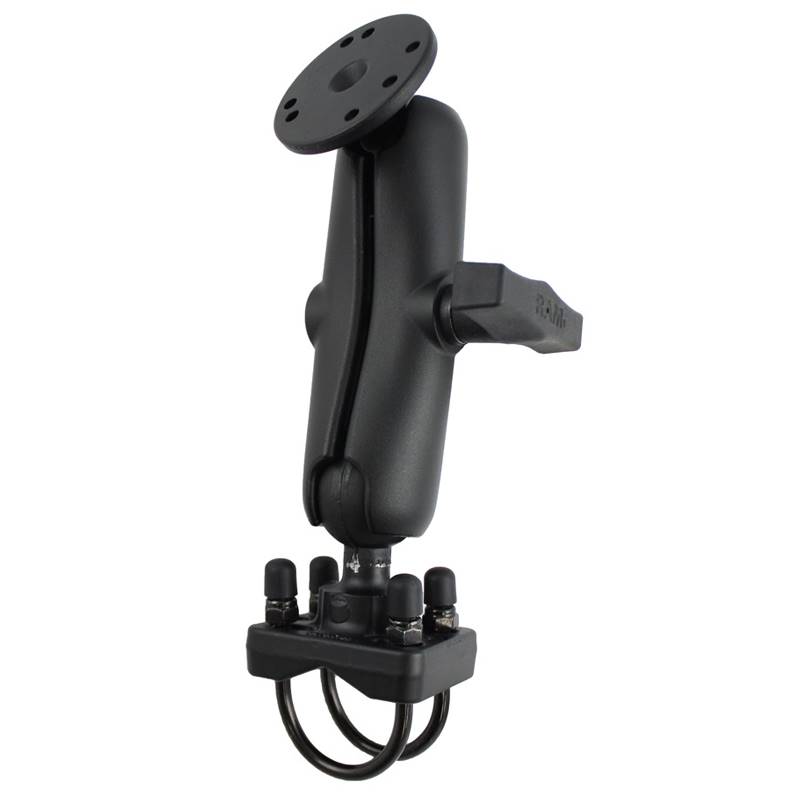

The RAM-101U-235-1 consists of a double socket arm, one round 2.5" diameter round base with the
universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1.25" to
1.5" in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system
with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for
almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

CLAMP RANGE
1.25" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern

Includes double U-bolt base that accommodates rails from 1.25" to 1.5" in diameter and a medium
length, C size RAM double socket arm; ball and socket technology allows for near-infinite
adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
1.46 lbs.
