RAM-101U-246_RAM Double Ball Mount with 100x100mm VESA
RAM-101U-246_RAM Double Ball Mount with 100x100mm VESA
Regular price
$65.99 USD
Regular price
Sale price
$65.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442010156
Mfg Part #:
RAM-101U-246
Availability:
In Stock
Part Number:
RAM-101U-246
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

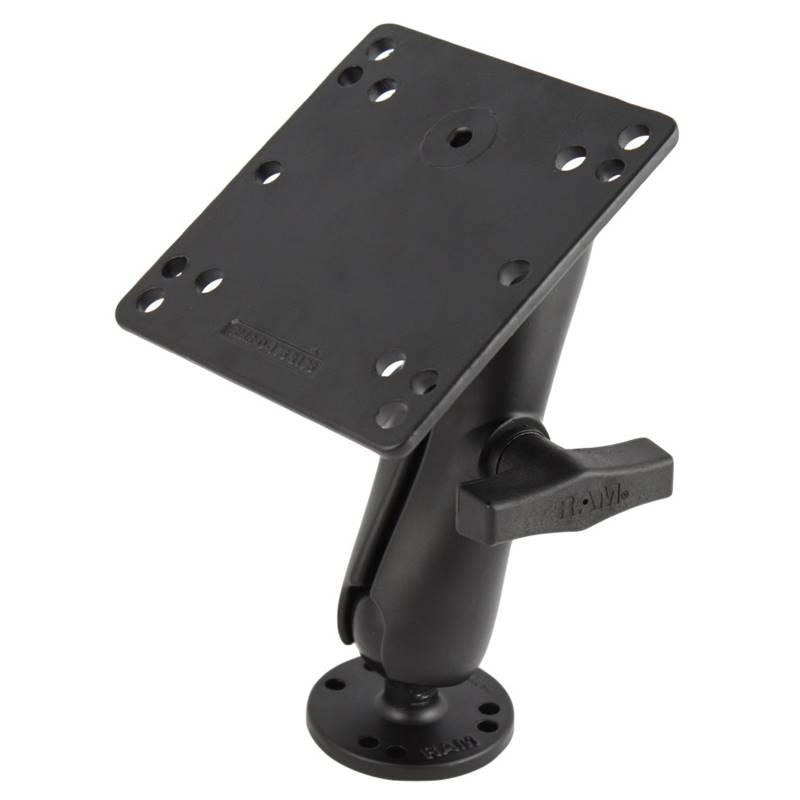

The RAM-101U-246 consists of a 2.5" diameter round base with the universal AMPS hole pattern,
STANDARD length double socket arm and 4.75" square plate with the VESA hole pattern. The VESA plate
contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter
patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber
ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.52 lbs.
STANDARD length double socket arm and 4.75" square plate with the VESA hole pattern. The VESA plate
contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter
patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber
ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.52 lbs.
Dimensions:
- Overall Height: 7.135"
- Material:The "U" in the part number reflects product packaged in poly bag.
- Ball Size:C Size 1.5" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Weight Capacity:Up to 4 lbs
- Weight:1.52 lbs.
