RAM-101U-247-4_RAM 4" Square Post Clamp Mount with Roun

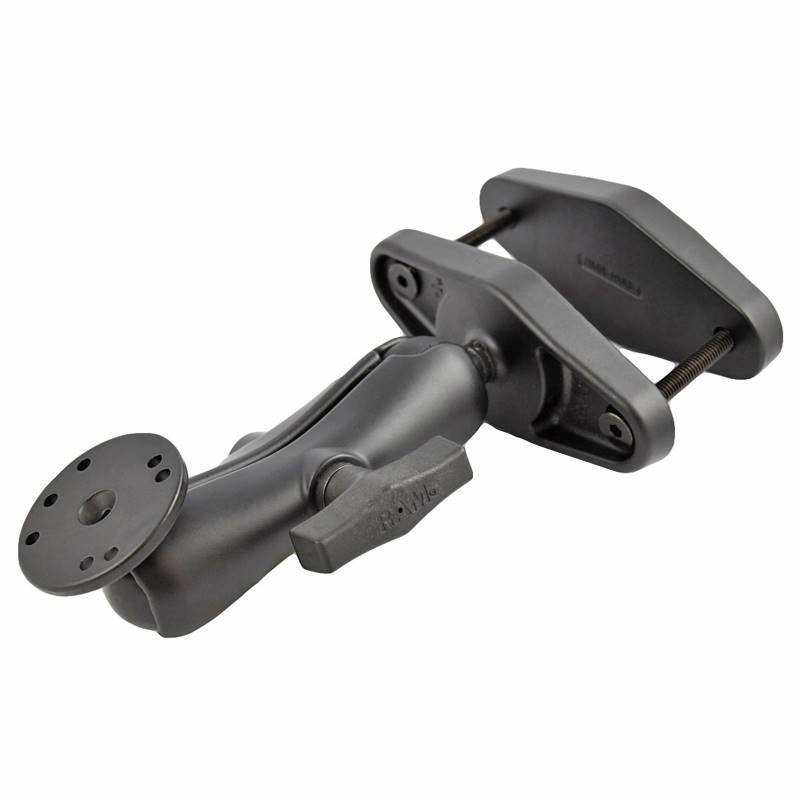

The RAM-101U-247-4 consists of a double socket arm, round 2.5" diameter round base with the
universal AMPS hole pattern and 4" clamp base. The clamp base will wrap around a maximum width of 4"
and is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball,
socket technology dampens shock and vibration, as well as allows for almost infinite adjustment,
perfect viewing angles.

HARDWARE INCLUDED
(2) 5/16"-18 x 3" Macine Screws
(2) 5/16"-18 Nylock Nuts

PRODUCT DIMENSIONS
Overall Height: 7.85"

CLAMP RANGE
4" max width

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern

Includes 4" clamping base for posts and a medium length, C size RAM double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
2.15 lbs.
