RAM Twist-Lock Triple Suction Mount wit
RAM Twist-Lock Triple Suction Mount wit
Regular price
$115.49 USD
Regular price
Sale price
$115.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442916137
Mfg Part #:
RAM-101U-B-SPX1
Availability:
In Stock
Part Number:
RAM-101U-B-SPX1
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

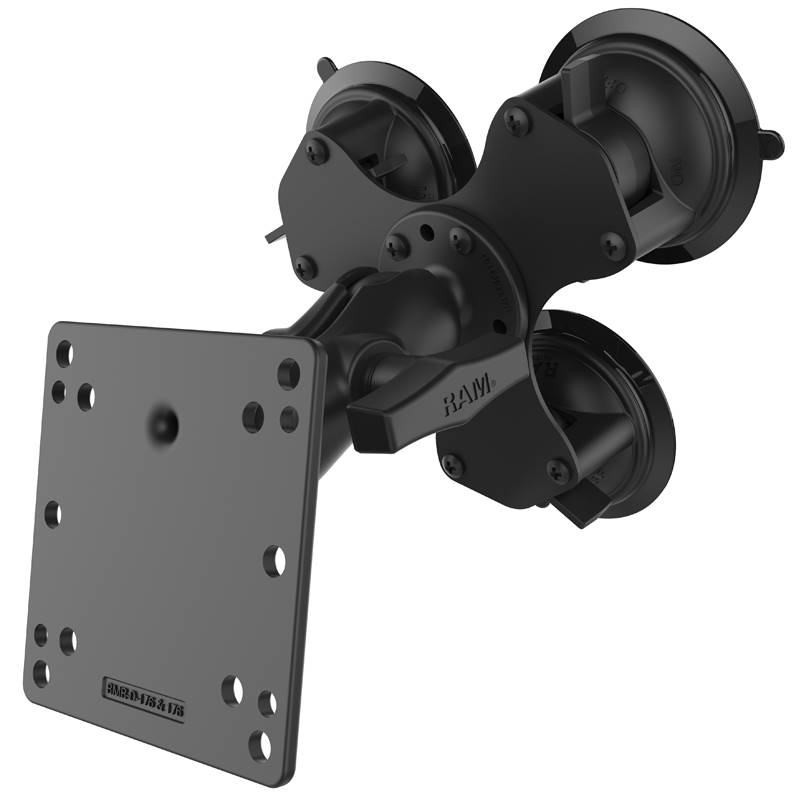

The RAM-101U-B-SPX1 consists of a triple 3.3" suction cup locking base, SHORT length double socket
arm and 4.75" square plate with the VESA hole pattern. The triple suction cup base is designed to
have a strong hold on glass and non-porous plastic surfaces. The VESA plate contains a 75mm X 75mm
and 100mm X 100mm hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball
and socket system that has adjustment points at both ends of the double socket arm.
HARDWARE INCLUDED
Assembly Hardware
(4) .312" x .187" Shoulder Washers
SUCTION SIZE
(3) 3.3" Diameter Bases, Total Width 7.95"
SOCKET-TO-SOCKET LENGTH
2.5"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
Powder coated steel
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
2.21 lbs.
arm and 4.75" square plate with the VESA hole pattern. The triple suction cup base is designed to
have a strong hold on glass and non-porous plastic surfaces. The VESA plate contains a 75mm X 75mm
and 100mm X 100mm hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball
and socket system that has adjustment points at both ends of the double socket arm.
HARDWARE INCLUDED
Assembly Hardware
(4) .312" x .187" Shoulder Washers
SUCTION SIZE
(3) 3.3" Diameter Bases, Total Width 7.95"
SOCKET-TO-SOCKET LENGTH
2.5"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
Powder coated steel
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
2.21 lbs.
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight Capacity:Up to 4 lbs
- Weight:2.21 lbs.
