RAM-101U-D-2461_RAM Double Ball Mount with 75x75mm VESA
RAM-101U-D-2461_RAM Double Ball Mount with 75x75mm VESA
Regular price
$85.99 USD
Regular price
Sale price
$85.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442902901
Mfg Part #:
RAM-101U-D-2461
Availability:
In Stock
Part Number:
RAM-101U-D-2461
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

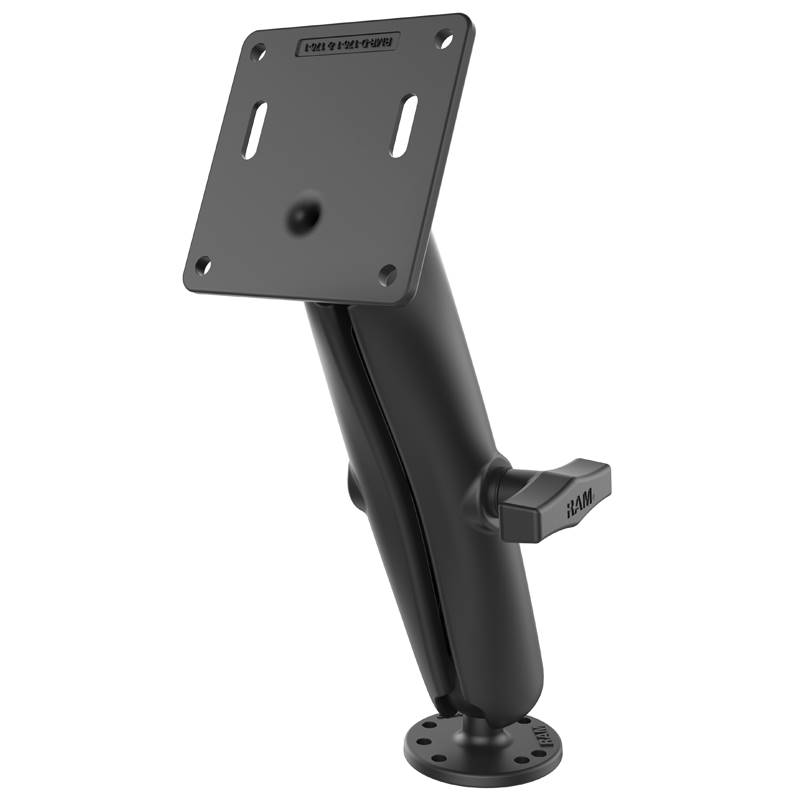

The RAM-101U-D-2461 consists of a LONG length double socket arm, 2.5" diameter round base with the
universal AMPS hole pattern and 3.625" square plate with the VESA hole pattern. The VESA plate
contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 10.85"
SOCKET-TO-SOCKET LENGTH
8"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.24 lbs.
universal AMPS hole pattern and 3.625" square plate with the VESA hole pattern. The VESA plate
contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 10.85"
SOCKET-TO-SOCKET LENGTH
8"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.24 lbs.
Dimensions:
- Overall Height: 10.85"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight Capacity:Up to 4 lbs
- Weight:2.24 lbs.
