RAM Double Ball Mount with 100x100mm VES
RAM Double Ball Mount with 100x100mm VES
Regular price
$90.49 USD
Regular price
Sale price
$90.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442010187
Mfg Part #:
RAM-101U-D-246
Availability:
In Stock
Part Number:
RAM-101U-D-246
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

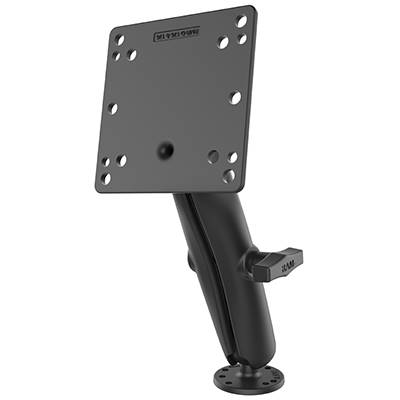

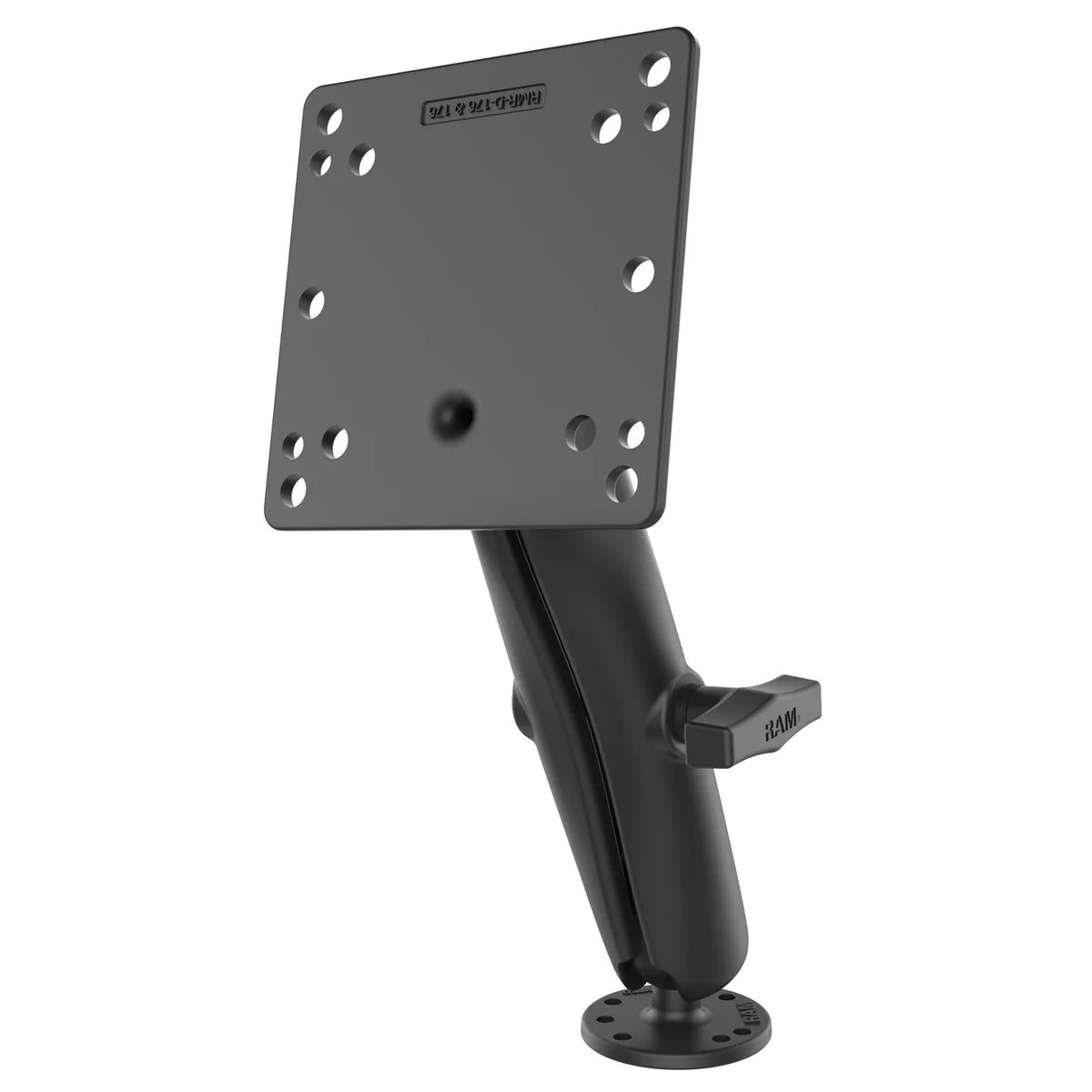

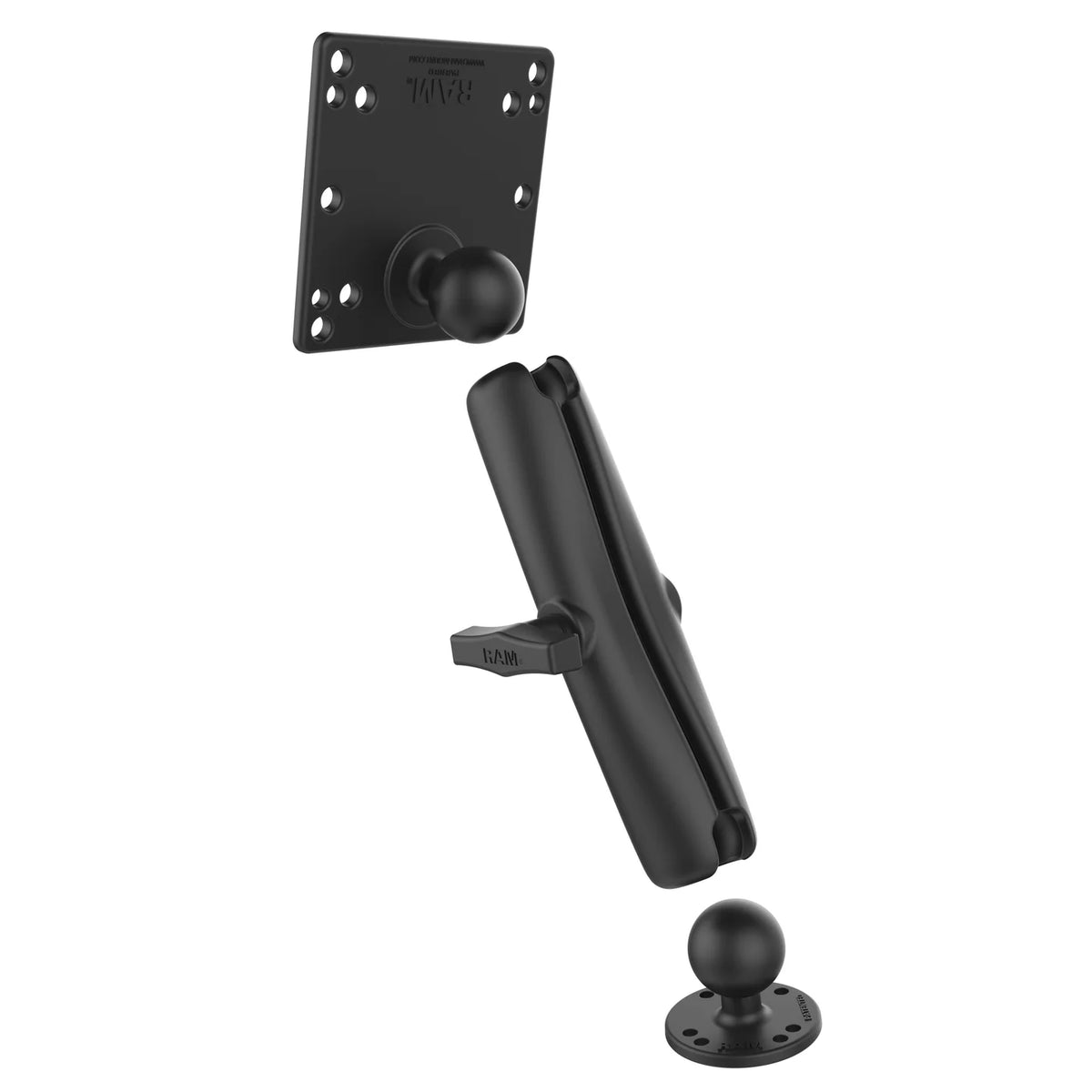

The RAM-101U-D-246 consists of a long double socket arm, 2.5" diameter round base with the universal
AMPS hole pattern and 4.75" square plate with the ESA hole pattern. The VESA plate contains a 75mm X
75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 10.85"
SOCKET-TO-SOCKET LENGTH
8"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.39 lbs.
AMPS hole pattern and 4.75" square plate with the ESA hole pattern. The VESA plate contains a 75mm X
75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 10.85"
SOCKET-TO-SOCKET LENGTH
8"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.39 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight Capacity:Up to 4 lbs
- Weight:2.39 lbs.
