RAM Flat Surface Mount for Zebra Printer D

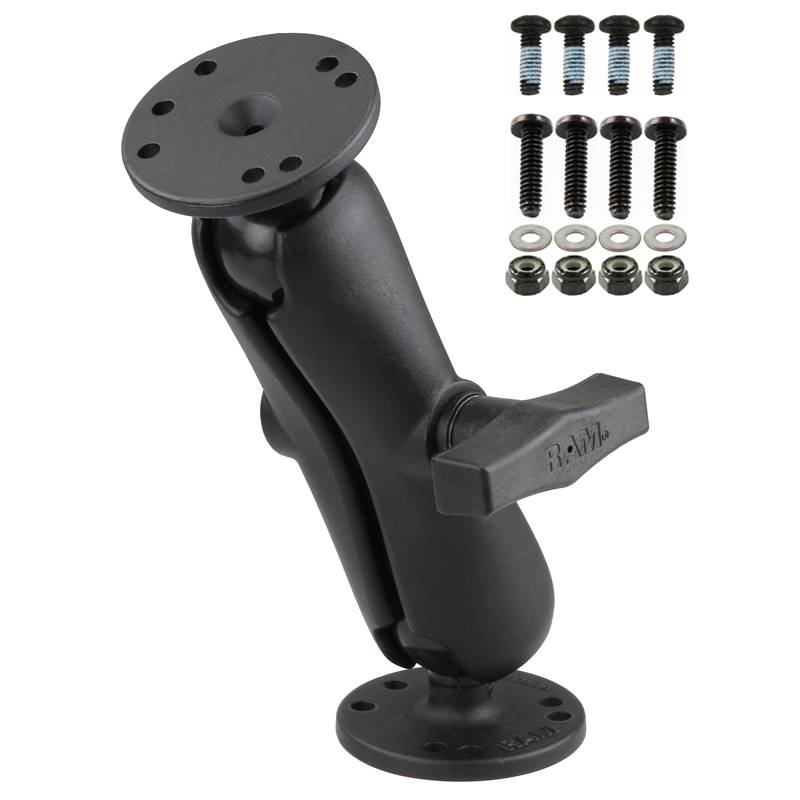

The RAM-101U-ZE1 consists of a double socket arm, two 2.5" diameter round bases that contain the
universal AMPS hole pattern and hardware to attach to the Zebra RW 420 printer. The mount is
designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life
of your device.

HARDWARE INCLUDED
(4) #10-24 x 3/4" Machine Screws
(4) #10 Stainless Steel Flat Washers
(4) #10-24 Nylock Nuts
(4) #8-32 x 1/2" Machine Screws

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
1.24 lbs.
