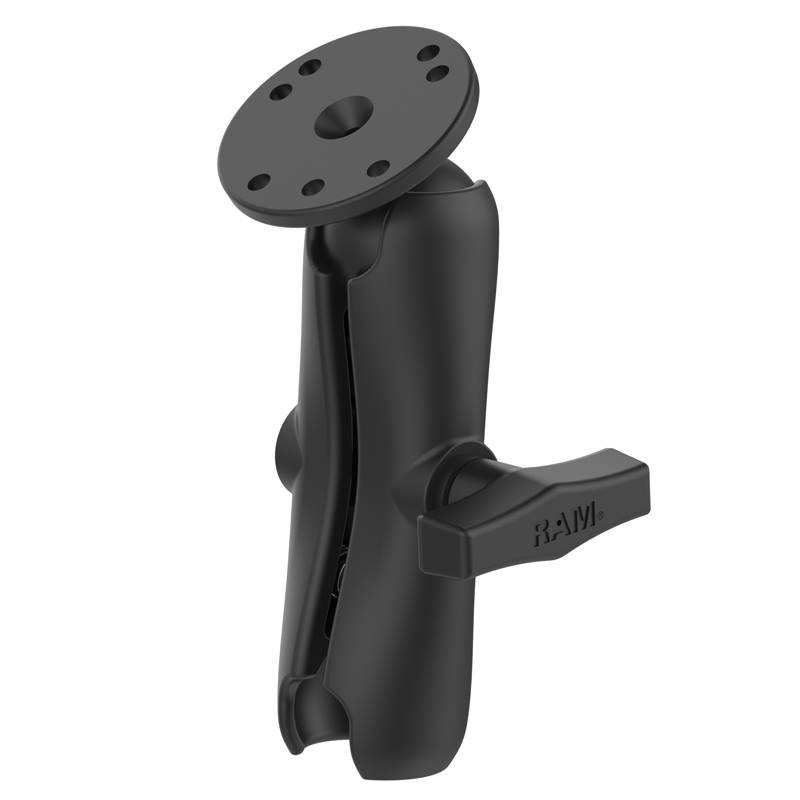

RAM-103U_RAM Double Socket Arm with Round Ball Plate -

The RAM-103U consists of the 1.5" diameter ball and socket system with one open socket end. This
mount is designed to be used with any of the RAM mounting bases or cradles with a 1.5" diameter
rubber ball. The RAM-202U round base has a 1.5" diameter rubber ball connected at right angles to a
2.5" diameter base. The plate has pre-drilled holes in the base, including the universal AMPS hole
pattern.

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern

Includes C size medium length double socket arm; ball and socket technology allows for near-infinite
adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.93 lbs.
