RAM-107U_RAM Fishfinder Mount for Humminbird Devices -
RAM-107U_RAM Fishfinder Mount for Humminbird Devices -
Regular price
$66.99 USD
Regular price
Sale price
$66.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442000119
Mfg Part #:
RAM-107U
Availability:
In Stock
Part Number:
RAM-107U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

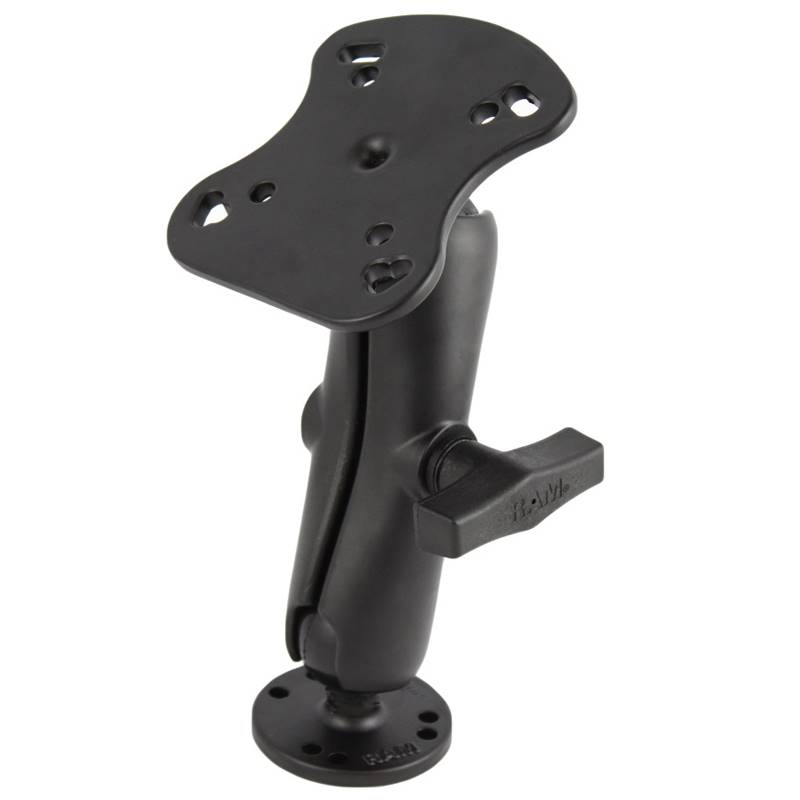

The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole
pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. Rubber
ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Top Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.3 lbs.
pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. Rubber
ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Top Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.3 lbs.
Dimensions:
- Overall Height: 7.35"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. The RAM-107U is a "rugged use" mount, designed to hold large marine electronic devices.
- Weight Capacity:Up to 4 lbs
- Weight:1.3 lbs.
