RAM Strap Hose Clamp Mount with 100x100mm
RAM Strap Hose Clamp Mount with 100x100mm
Regular price
$71.99 USD
Regular price
Sale price
$71.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442935107
Mfg Part #:
RAM-108B-246U
Availability:
In Stock
Part Number:
RAM-108B-246U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

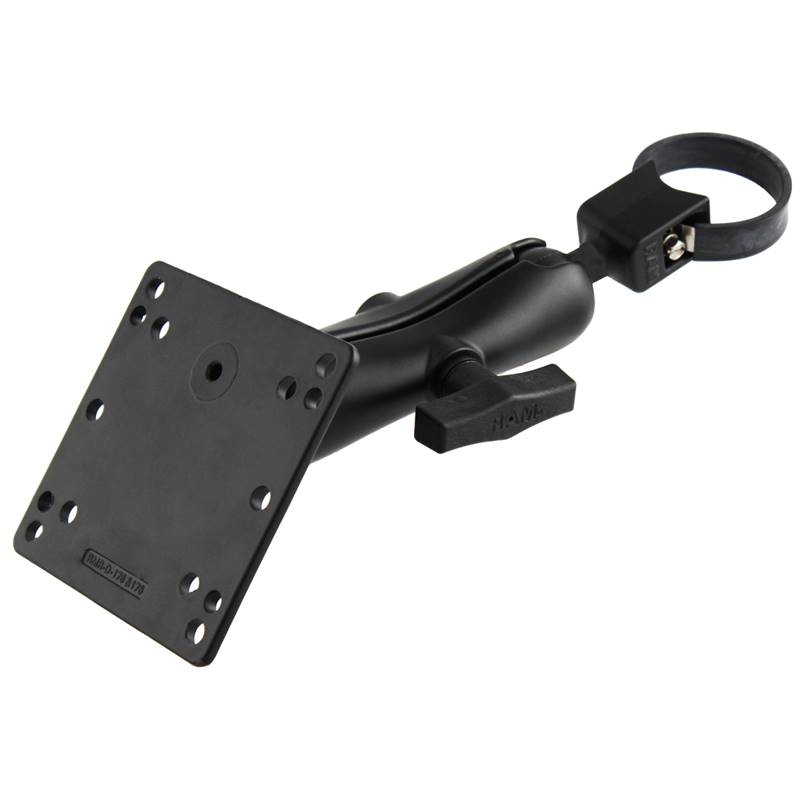

The RAM-108B-246U consists of a strap clamp 1.5" diameter ball base, standard length double socket
arm and VESA (4 X 75mm) (4 X 100mm) plate. The strap will accommodate rails from 1" to 2.1" in
diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching
of the mounting surface. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each
corner.
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 9"
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.68 lbs.
arm and VESA (4 X 75mm) (4 X 100mm) plate. The strap will accommodate rails from 1" to 2.1" in
diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching
of the mounting surface. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each
corner.
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 9"
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.68 lbs.
Strap Dimensions:
- 1" to 2.1"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.68 lbs.
RAM-246U
RAM-108BU
RAM-201U
