RAM-109H-1U_RAM Horizontal 12" Swing Arm Mount for Fish
RAM-109H-1U_RAM Horizontal 12" Swing Arm Mount for Fish
Regular price
$121.49 USD
Regular price
Sale price
$121.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442010927
Mfg Part #:
RAM-109H-1U
Availability:
In Stock
Part Number:
RAM-109H-1U
Quantity
Couldn't load pickup availability
Share
- Description
- Components

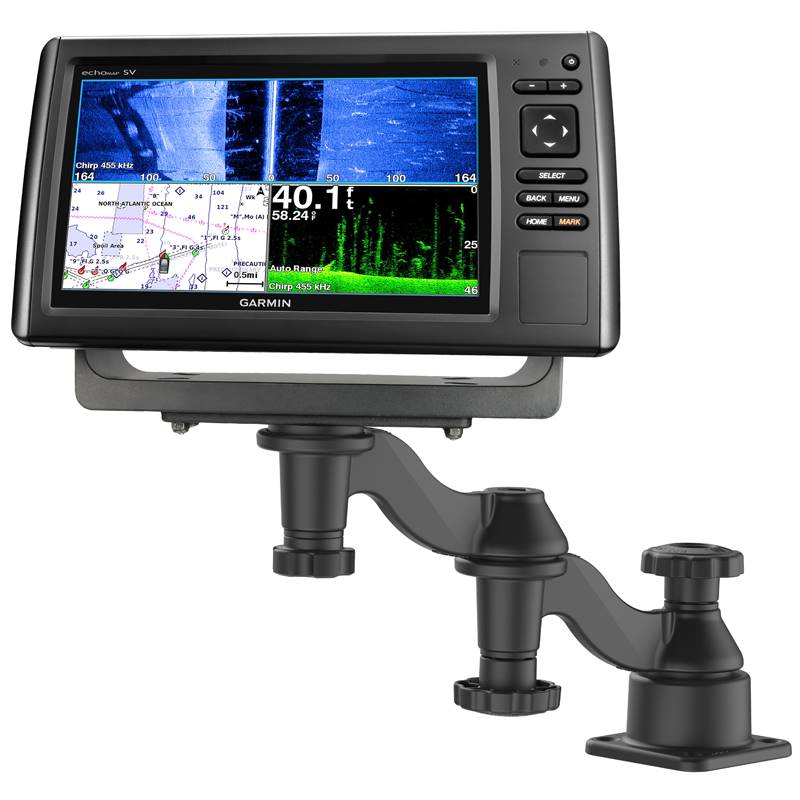

The RAM double swing arm mount includes two 6" long BENT swing arms mounted on a horizontal surface
mounting base. At the device mounting end of the mount is a rectangular 6.25 x 2" top base. The
pivoting points of the mount allow a complete 360 degree rotation.
PRODUCT DIMENSIONS
Overall Height: 8.58"
Total Swing Arm Length: 12"
HOLE PATTERN
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
WEIGHT CAPACITY
8 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
2.6 lbs.
