RAM-109H-2B-B-LO11_RAM Horizontal Swing Arm Mount for L

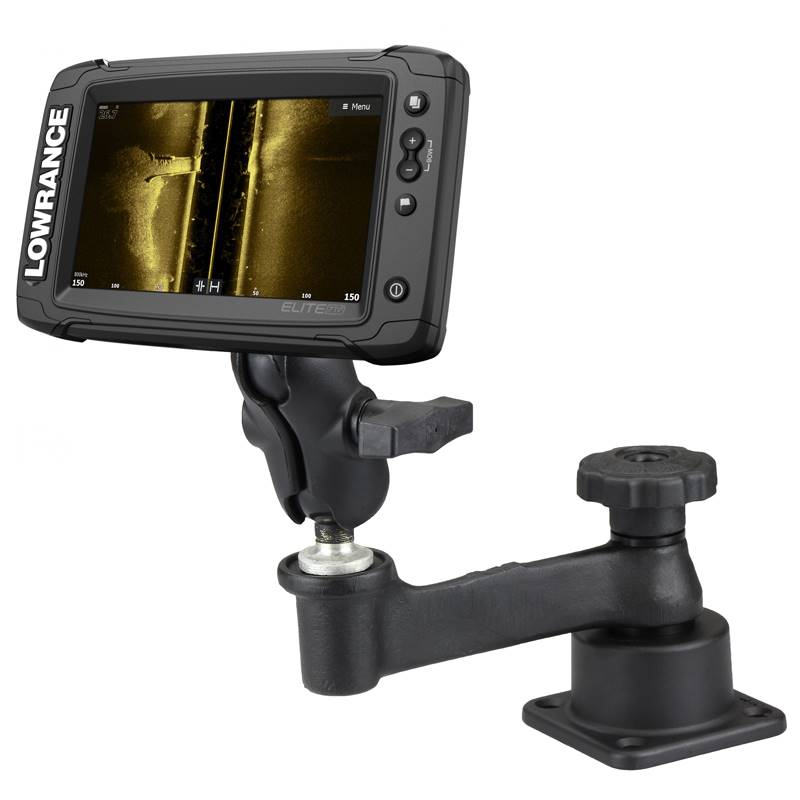

The RAM-109H-2B-B-LO11 consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface
mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between
the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM
ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball
and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short
length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5"
diameter rubber ball and inserts directly to the back of Lowrance Elite 5, Mark 5 and Hook 5
Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer
your Fishfinder in seconds.

SOCKET-TO-SOCKET LENGTH
3.56"

HOLE PATTERN
2.5" x 2.5"

PLATE SIZE
3.47" x 3.47"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This product is not compatible with the standard Lowrance Elite-7.
