RAM-111-247U-3_RAM Universal Marine Electronic Mount fo

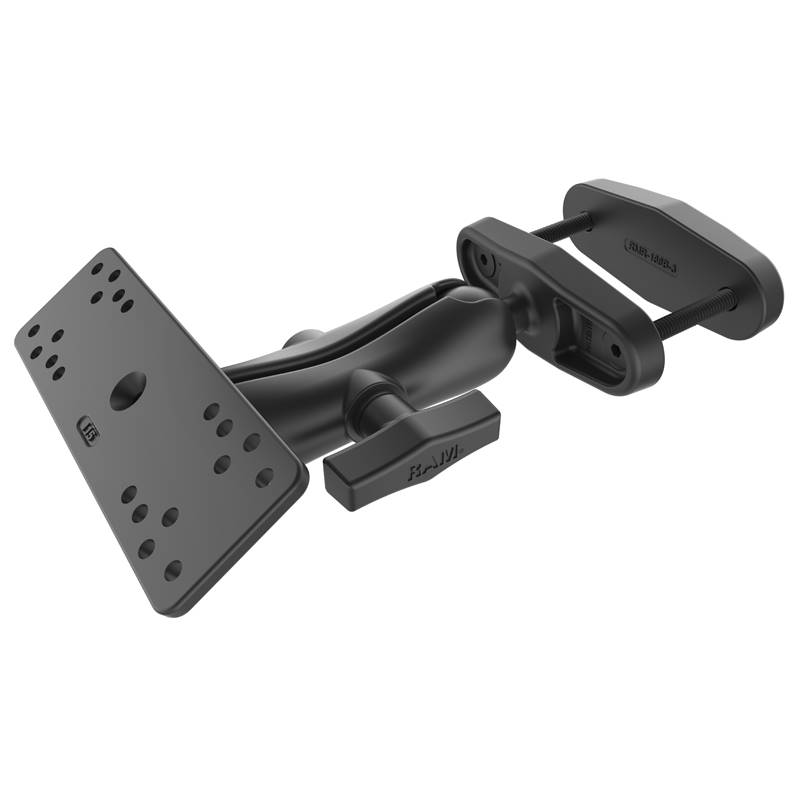

The RAM-111-247-2U with clamp base, consists of the 1.5 inch diameter ball and socket system with
RAM universal rectangular 6.25 x 2 inch base. This mount is designed to be a universal mounting
solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The
hole pattern found on the rectangular base will connect to a large variety of third party cradle,
gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame
work on a fork lift, or any other square post up to 3 inches square.

HARDWARE INCLUDED
(2) 5/16"-18 x 3" Macine Screws
(2) 5/16"-18 Nylock Nuts

CLAMP RANGE
3" max width

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
See Drawing

PLATE SIZE
6.25" x 2"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.

WEIGHT
1.59 lbs.
