RAM Drill-Down Marine Electronic Mount wit

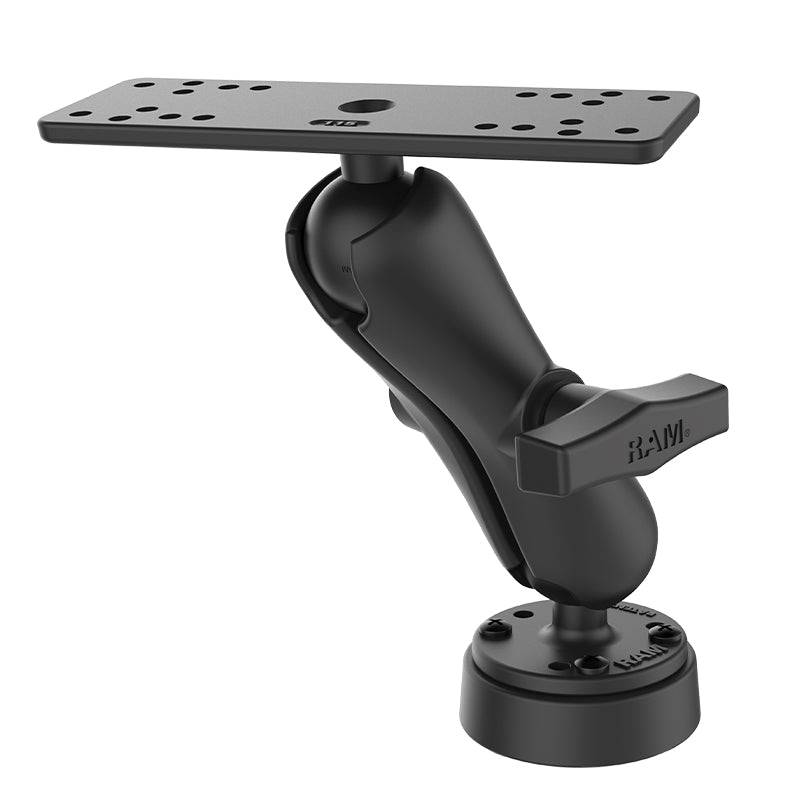

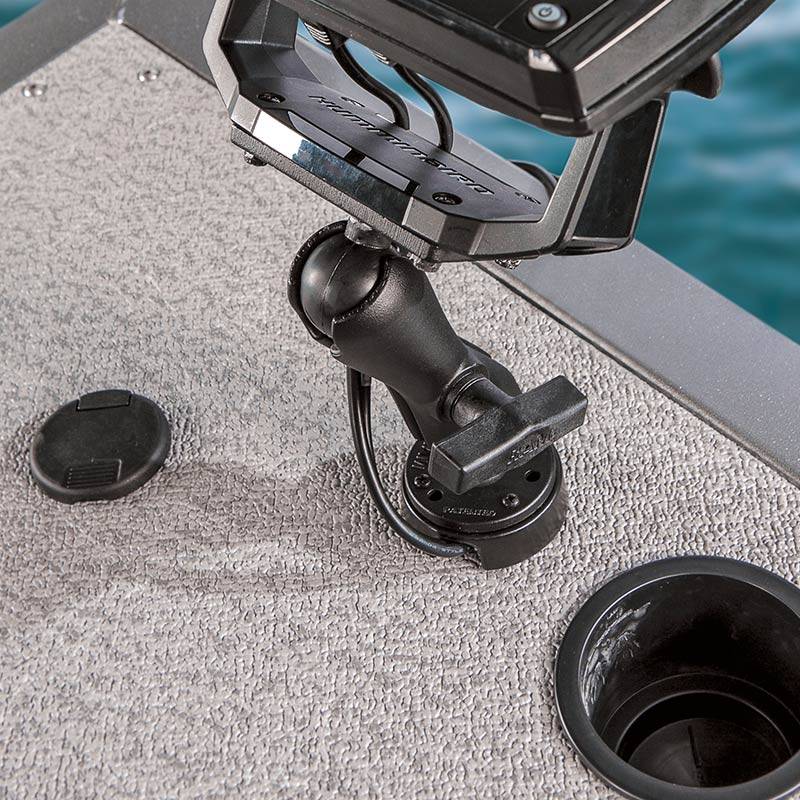

This marine electronic mounting kit consists of a medium double socket arm, 2.5" diameter round base, 6.25" x 2" rectangle base, and the RAM cable manager. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters. To route electrical wiring and cover installation holes cleanly, this kit also features the RAM cable manager. While creating a barrier between the surface mount and the attachment area, the cable manager helps to minimize vibration while reducing fiberglass and gel-coat damage.

FEATURES

Complete flat surface, drill-down mounting solution with an overall height of 7.35"; RAM ball and socket technology allows for near-infinite adjustability

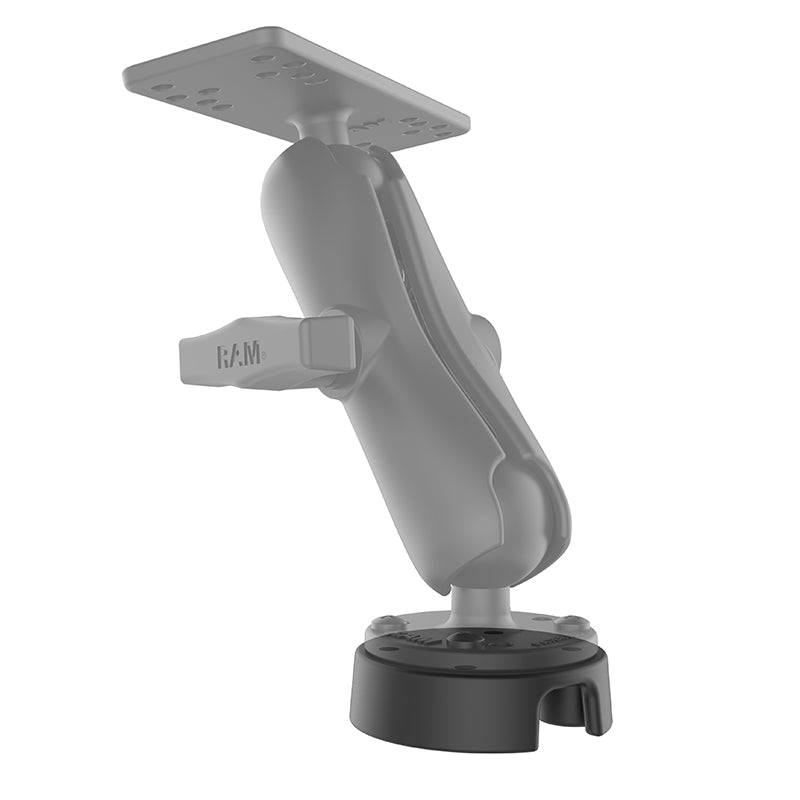

Includes RAM cable manager to route electrical wiring and cover installation holes

Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments

Backed by a lifetime warranty

hardware included
(4) #10-24 x 2" Machine Screws(4) #10-24 Nylock Nuts(4) #10 Fender Washers

product dimensions
Overall Height: 7.95"Cable Slot Height: .56"Cable Slot Width: .7"

clamp range
Max mounting surface thickness: .68"

socket to socket length
4.66"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" DiameterSee Drawing

plate size
Top Plate: 6.25" x 2"Bottom Plate: 2.5" Diameter

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumHigh strength composite

packaging type
Poly Bag

Weight
1.58 lb
