RAM-111BTU_RAM Rectangular Plate Adapter for Swing Arm
RAM-111BTU_RAM Rectangular Plate Adapter for Swing Arm
Regular price
$21.99 USD
Regular price
Sale price
$21.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442901713
Mfg Part #:
RAM-111BTU
Availability:
Out Of Stock
Part Number:
RAM-111BTU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info

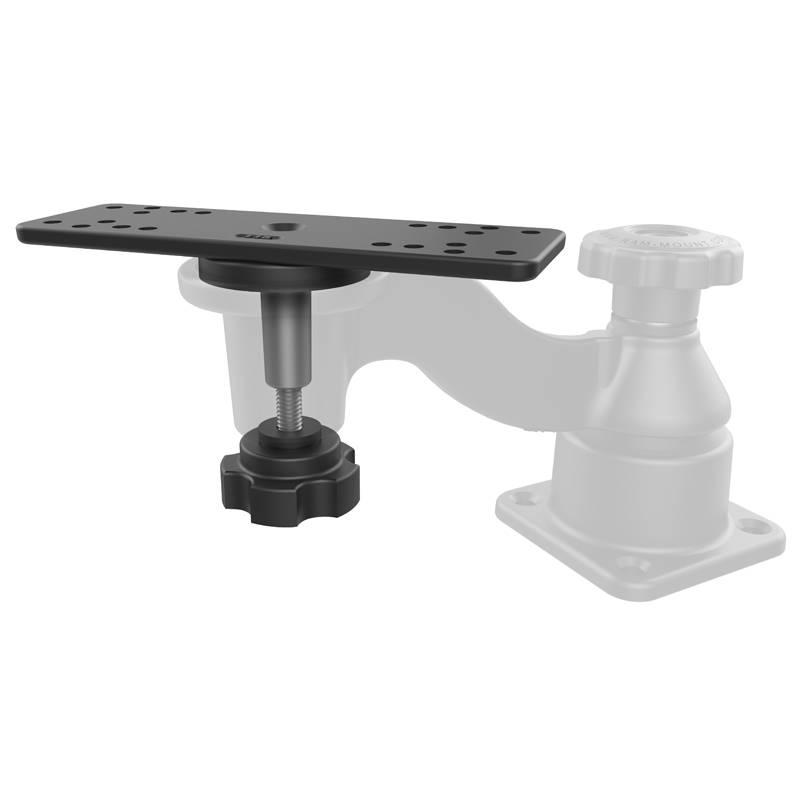

The RAM-111BT universal base has a short post connected at right angles to a flat 6.25 x 2 inch
rectangular base. The base has many different combinations of pre-drilled holes which will match up
to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets
and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on
the end of the post is a tightening knob for use when installed on the compatible RAM-109 series
arm.
HARDWARE INCLUDED
(1) 2" Nylon Washer
(1) 1.7" Nylon Washer
(1) 5/16" Stainless Steel Washer
(1) .77" Nylon Washer
(1) 5/16"-18 x 1.25" Knob
HOLE PATTERN
See Drawing
PLATE SIZE
6.25" x 2"
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
0.43 lbs.
rectangular base. The base has many different combinations of pre-drilled holes which will match up
to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets
and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on
the end of the post is a tightening knob for use when installed on the compatible RAM-109 series
arm.
HARDWARE INCLUDED
(1) 2" Nylon Washer
(1) 1.7" Nylon Washer
(1) 5/16" Stainless Steel Washer
(1) .77" Nylon Washer
(1) 5/16"-18 x 1.25" Knob
HOLE PATTERN
See Drawing
PLATE SIZE
6.25" x 2"
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
0.43 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight:0.43 lbs.
