RAM Large Marine Electronics Mount

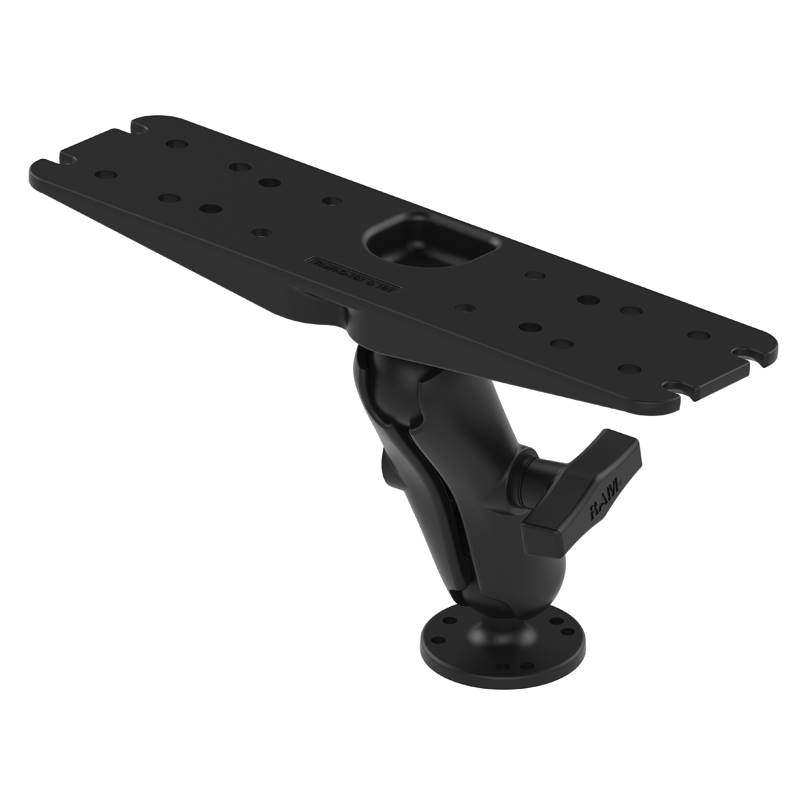

The RAM-137U, powder coated marine grade aluminum mount, consists of a double socket arm mount, one
2.5" diameter round base with 1.5" rubber ball and flat 11" x 3" rectangular plate. The plate
contains different combinations of pre-drilled holes which will match up to many electronic devices
and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball,
socket technology dampens shock and vibration, as well as allows for almost infinite adjustment,
perfect viewing angles.

HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain
applications additional holes may need to be drilled for proper fit with your electronic device.

WEIGHT
1.95 lbs.
