RAM Tab-Tite Large Tablet Holder wit

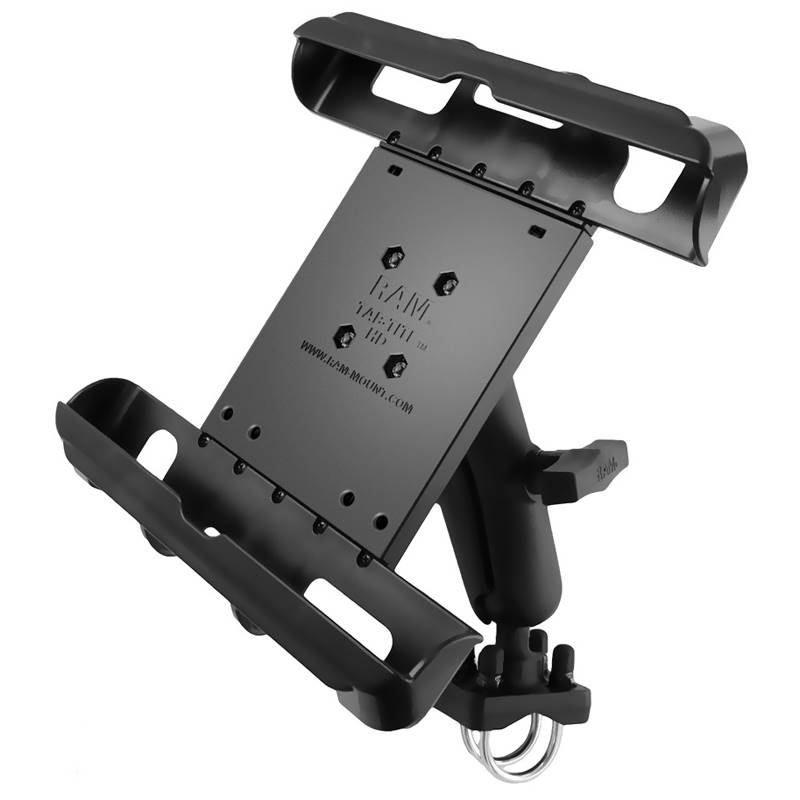

The RAM-138-235-TAB17U consists of a double u-bolt base with 1.5" dia. ball, double socket arm and
Tab-Tite universal clamping cradle. The spring loaded design makes it easy to load and unload your
tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to
optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other
ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any
tablet that will fit the dimensions listed below. It is important to verify the dimensions of your
tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

HOLDER DIMENSIONS
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

CLAMP RANGE
1" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
4.66"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.58 lbs.
