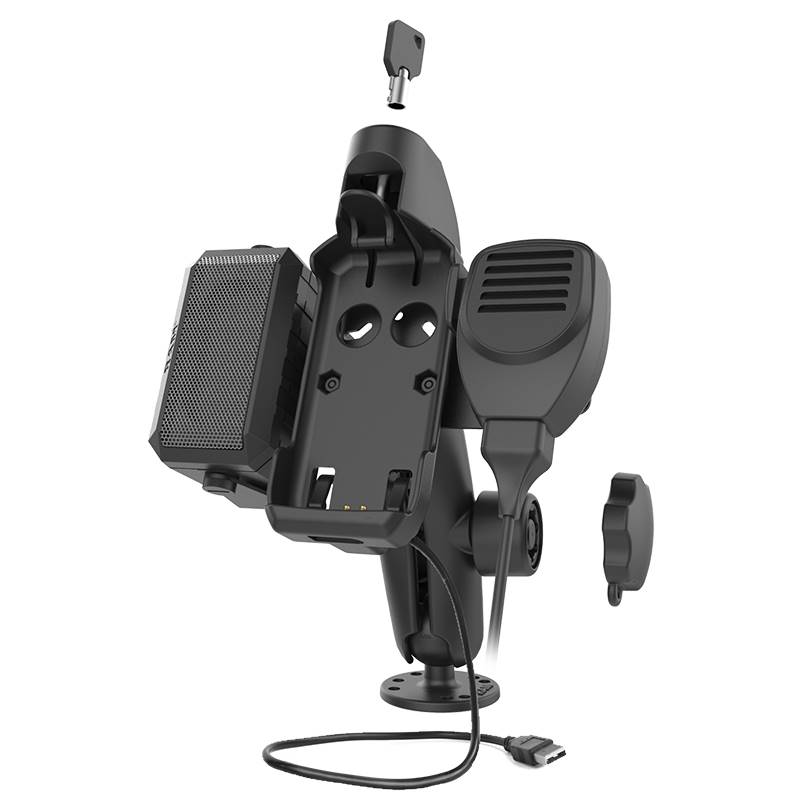

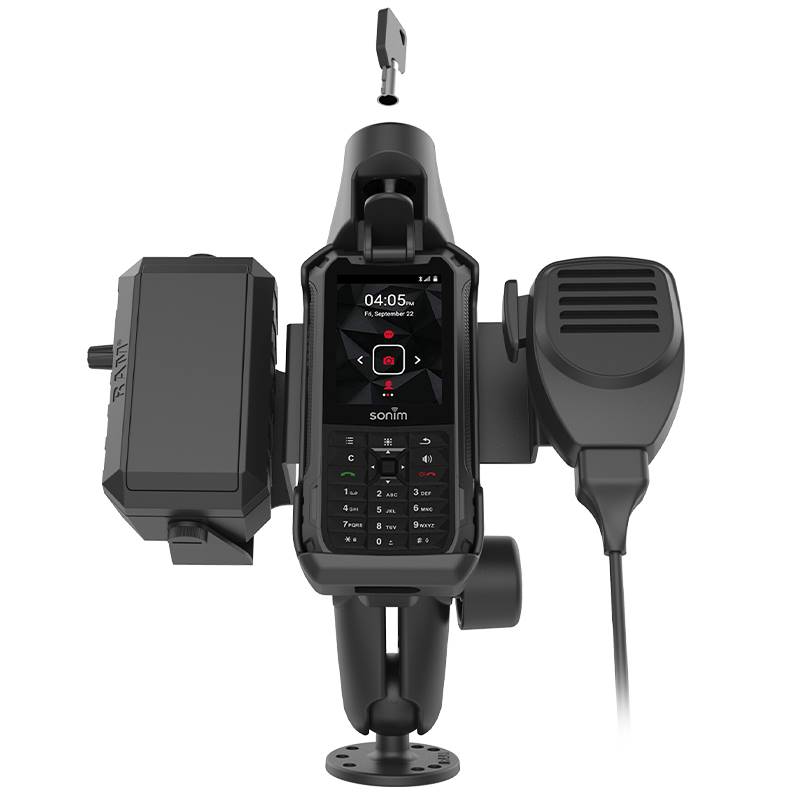

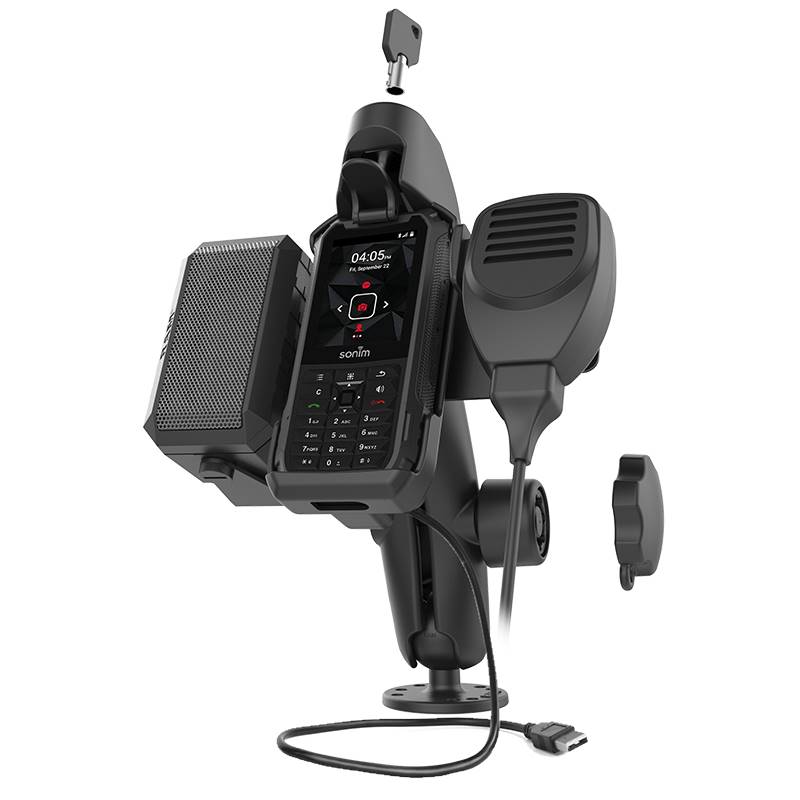

RAM Double Ball Mount for Sonim

This Sonim XP8 bundle includes the RAM EZ-Roll'r
Powered Key Locking Cradle for Sonim XP8, double ball mount with RAM Pin-Lock
Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your
Sonim XP8 and keeps your peripherals together and connected as one unit. The powered cradle features two
integrated pogo pins that provide charging capabilities to the device through a male USB Type A
connector, and includes key lock for extra security and peace of mind. The provided speaker connects to
the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is
a 10-30V modular vehicle hardwire charger.

FEATURES

Bundle for Sonim XP8 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

Spring-loaded, powered RAM EZ-Roll'r style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged

Key lock and RAM Pin-Lock for theft deterrence

RAM Components backed by lifetime warranty; cradle backed by a 3-year warranty

Hardware Included
Assembly Hardware (2) Keys for Holder (1) Key for Locking Knob (1) 10-pin
to 3.5 Audio Adapter Cable (1) Modular Hardwire Charger

Speaker Specifications
Independently adjustable volume knob Max volume level: 100dB 8? / 10W rated
speaker

Socket-to-Socket Length
4.66 INCHES

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameter

Plate Size
2.5 INCHES Diameter

Ball/Socket Size
C Size (1.5 INCHES)

Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

Materials
Marine-grade aluminum High strength composite Powder-Coated Steel

Packaging Type
Poly Bag

Input Voltage
10V - 30V DC

Output Voltage
5-9VDC

Output Current
2.5A max

Input Connector
Charger: Female USB Type A

Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length
.2 Meters

Operating Temperature
-10°C to +70°C

Storage Temperature
-40°C to +70°C

Compliance
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection
RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture
Resistant

Certifications
CE Certification e-Mark Certification RCM Certification FCC Certification

Weight
4.1 lbs.

Warranty Status
3 year warranty
