RAM Double Ball Mount for Sonim

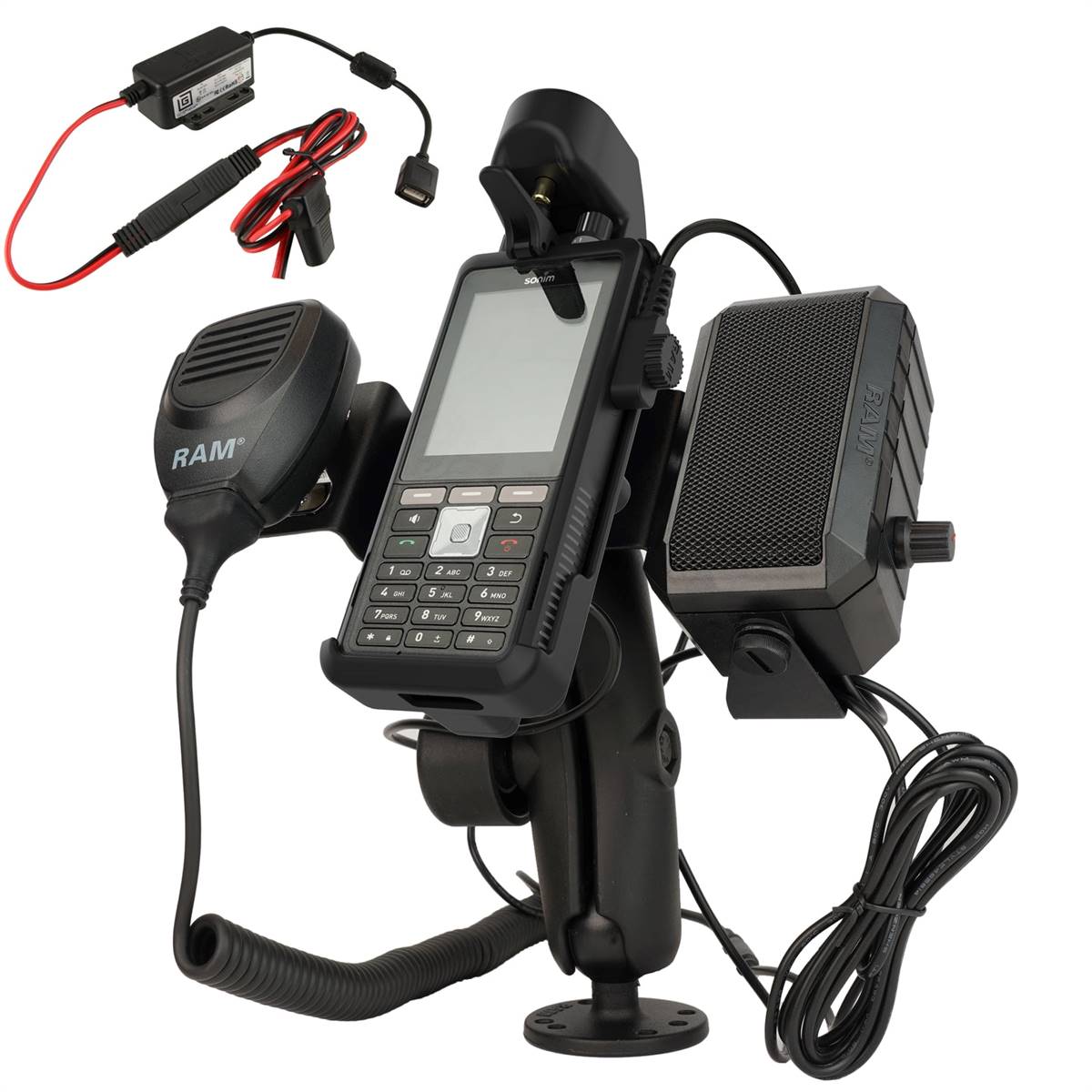

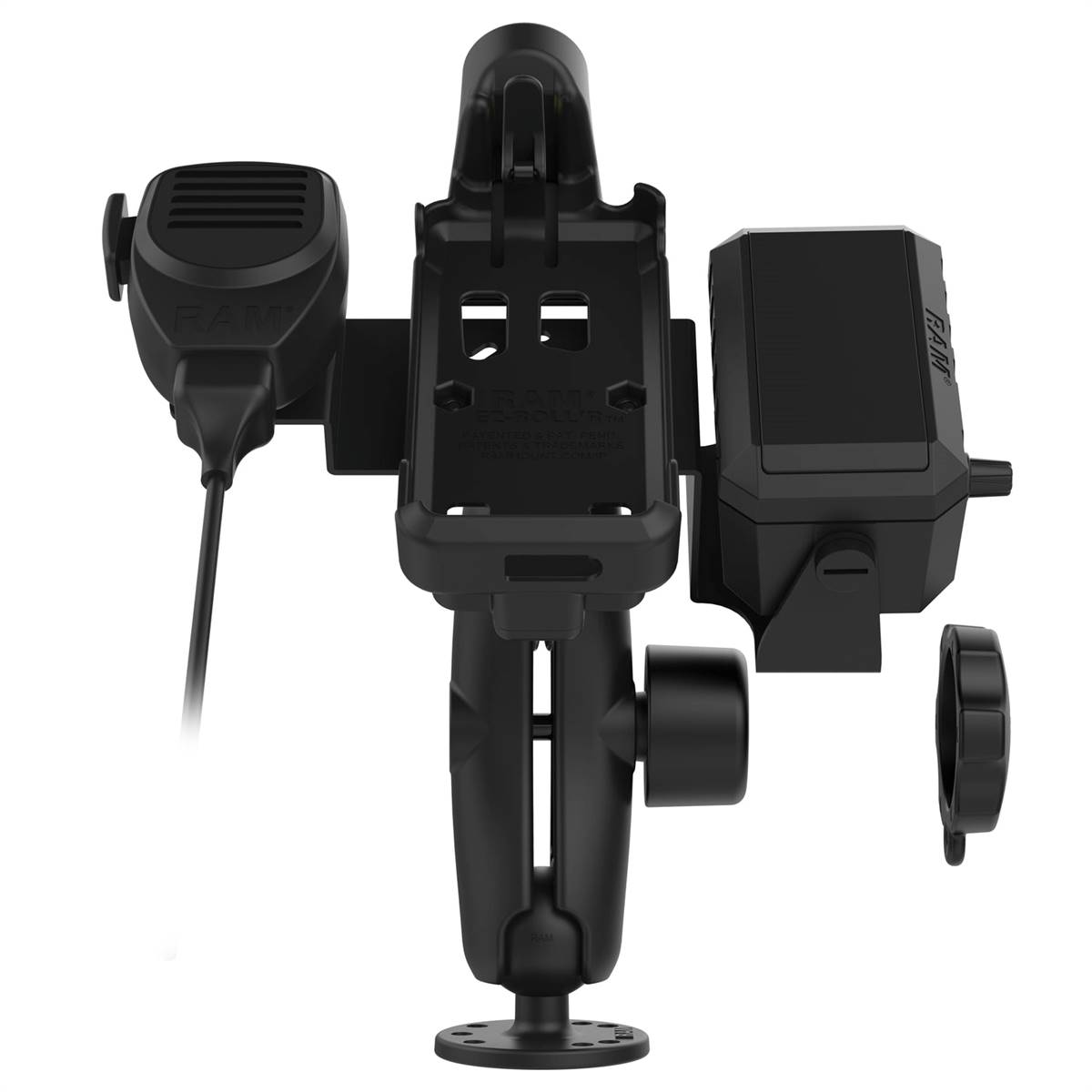

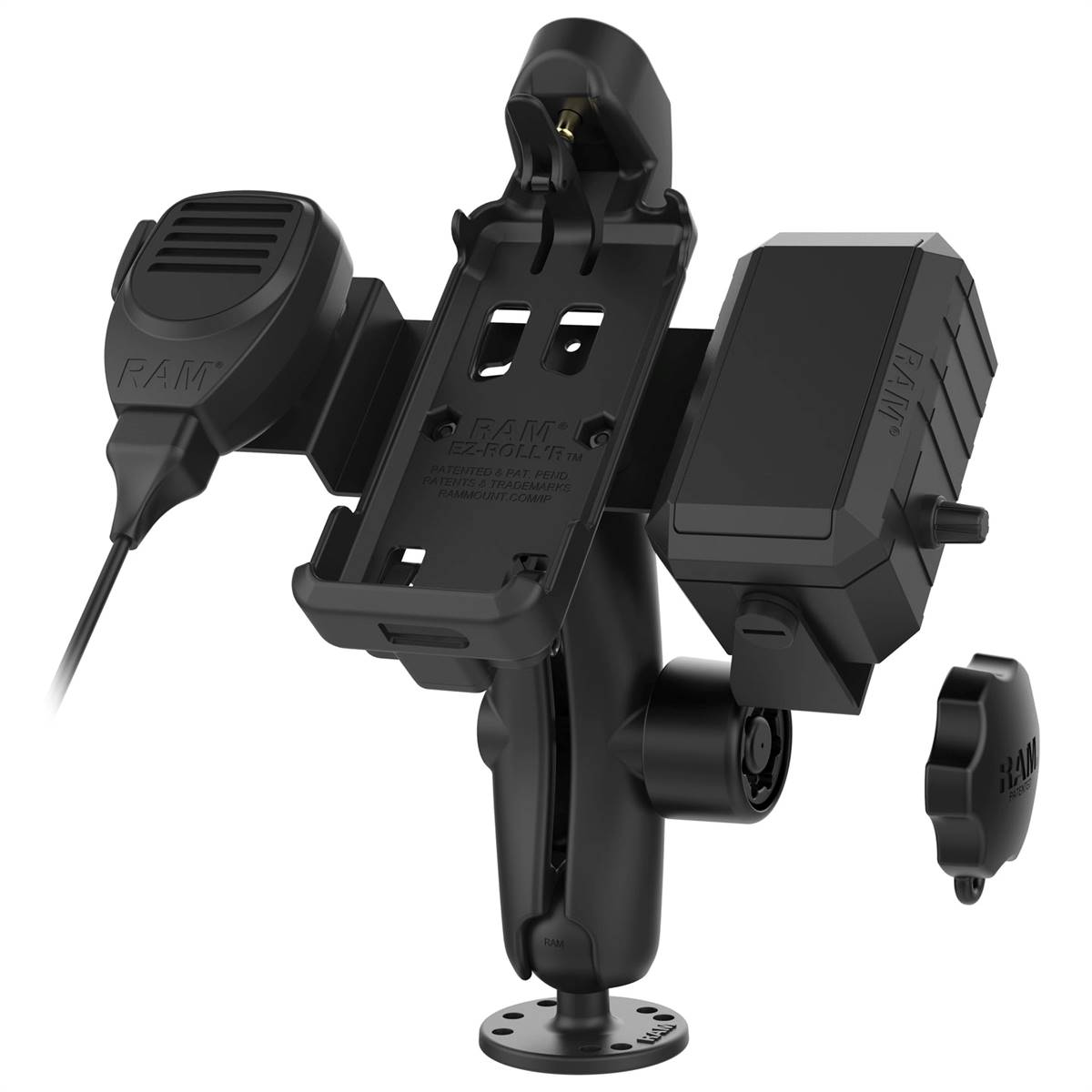

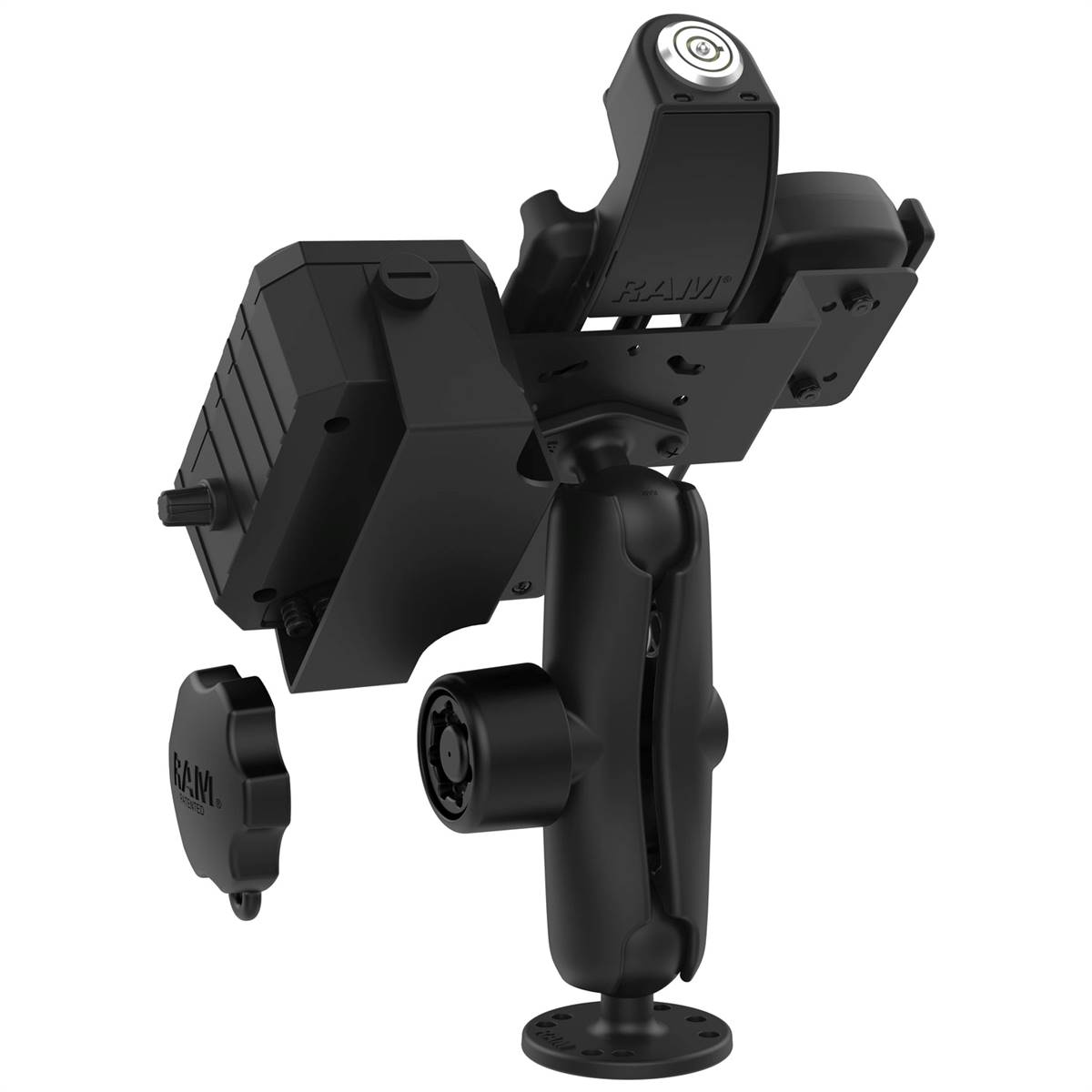

This Sonim XP5plus bundle includes the RAM EZ-Roll'r Powered Key Locking Dock for Sonim XP5plus, double ball mount with RAM Pin-Lock Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5plus and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. This dock will support both variations of the Sonim XP5plus; with and without PTT control knobs.

FEATURES

Bundle for Sonim XP5plus includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication; supports both versions with and without PTT control knobs

Powered RAM EZ-Roll'r style form-fit dock provides a perfect fit for your device while keeping the device charged

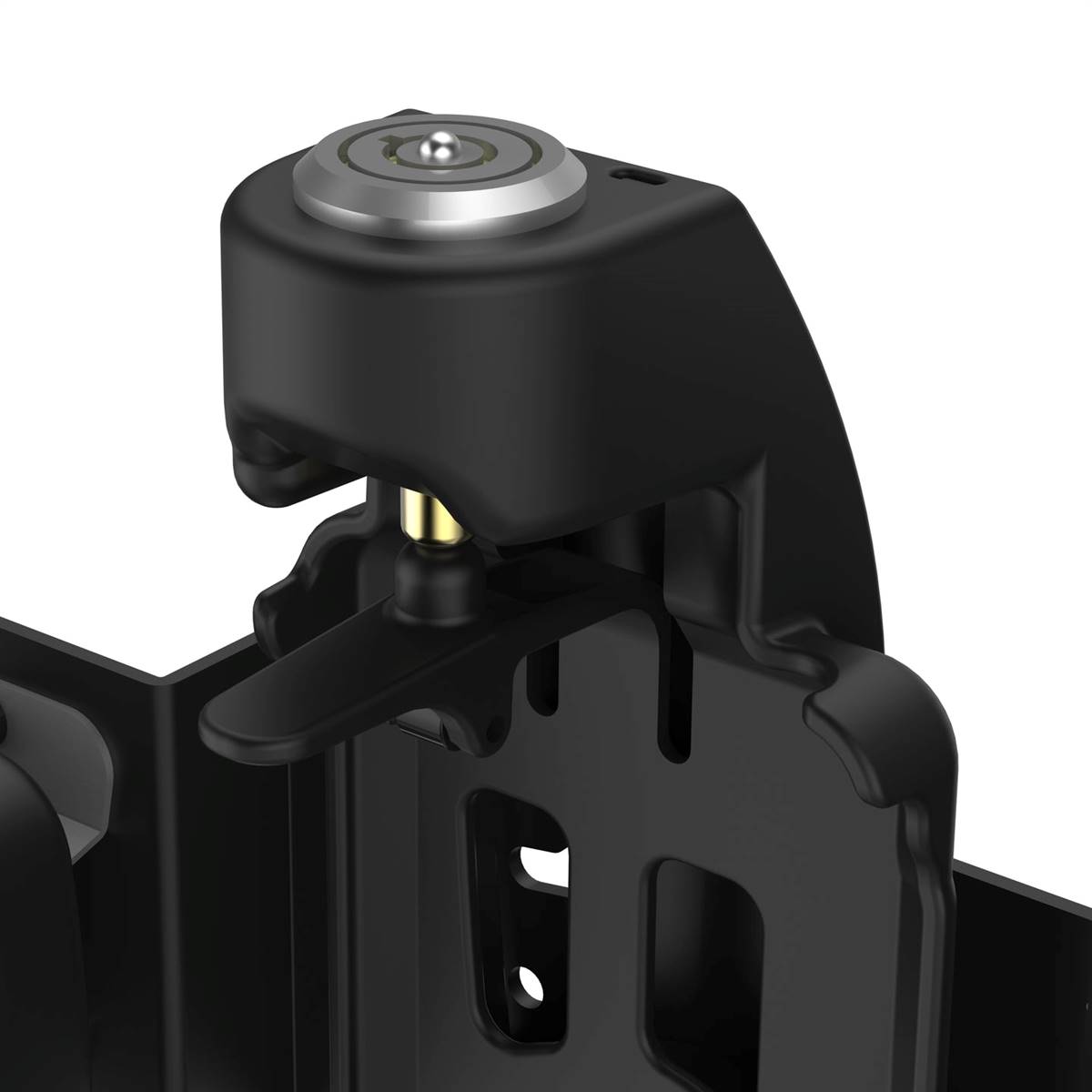

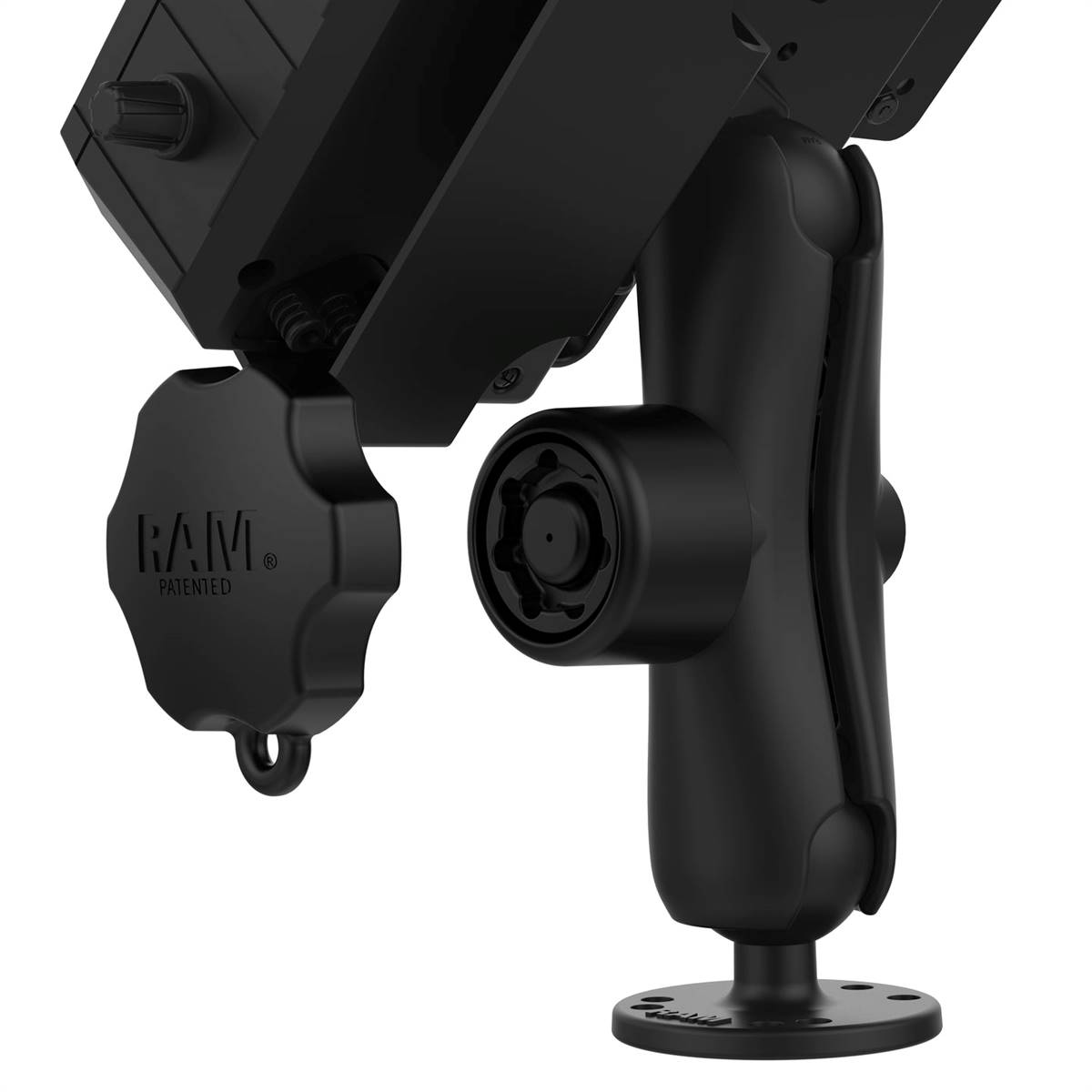

Key lock and RAM Pin-Lock for theft deterrence

RAM Components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

hardware included
Assembly Hardware(2) Keys for Holder(1) Key for Locking Knob(1) 10-pin to 3.5 Audio Adapter Cable(1) Modular Hardwire Charger

speaker specifications
Independently adjustable volume knobMax volume level: 100dB8? / 10W rated speaker

socket to socket length
4.66"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

plate size
2.5" Diameter

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumHigh strength compositePowder-Coated Steel

packaging type
Poly Bag

input voltage
10V - 30V DC

output voltage
5-9VDC*

output current
2.5A max

input connector
Charger: Female USB Type A

input cable length
1.2 Meters including 2 Pole Flat Marine Connector

output cable length
.2 Meters

operating temperature
-10°C to +70°C

storage temperature
-40°C to +70°C

compliance
Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture Resistant

certifications
CE Certificatione-Mark CertificationRCM CertificationFCC Certification

Warranty
3 year warranty

Weight
3.84 lb
