RAM Tab-Tite Flat Surface Mount for iPad

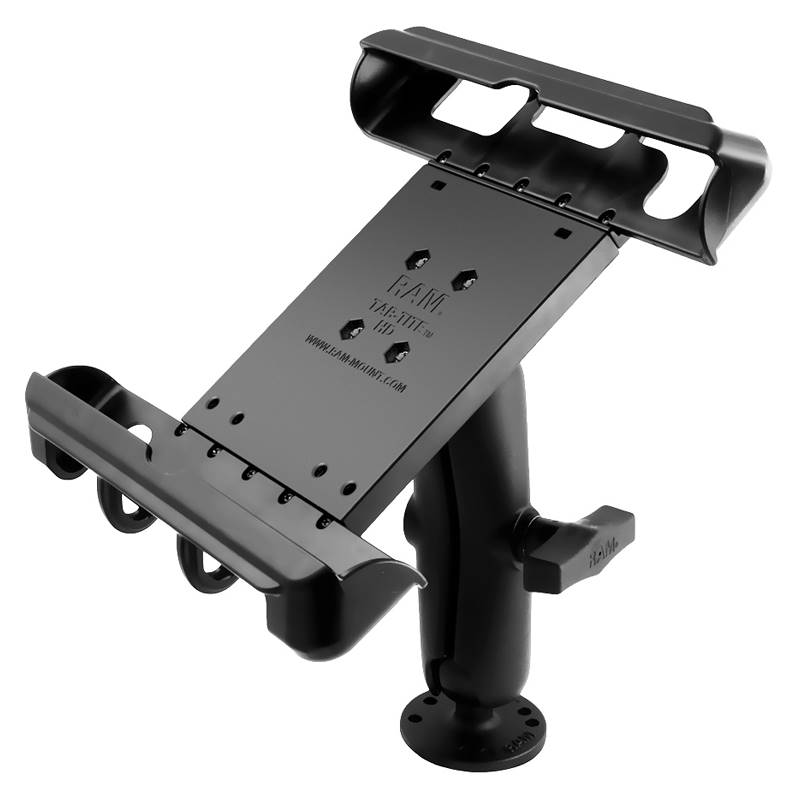

The RAM-138-TAB17U consists of a 2.5" diameter round base with 1.5" dia. ball, double socket arm,
round base adapter and Tab-Tite universal clamping cradle. The mount is designed with a RAM 1.5"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The
spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it
secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your
tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as
it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions
listed below. It is important to verify the dimensions of your tablet when determining the overall
size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more;
interchangeable end cups allow you to modify the holder when upgrading devices

Includes C size medium length double socket arm and 2.5" diameter round base; ball and socket
technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.64 lbs.
