RAM-138-TAB20U RAM Tab-Tite 9"-10.5" Tablet Holder with
RAM-138-TAB20U RAM Tab-Tite 9"-10.5" Tablet Holder with
Regular price
$90.99 USD
Regular price
Sale price
$90.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442013652
Mfg Part #:
RAM-138-TAB20U
Availability:
In Stock
Part Number:
RAM-138-TAB20U
Quantity
Couldn't load pickup availability
Share
- Description

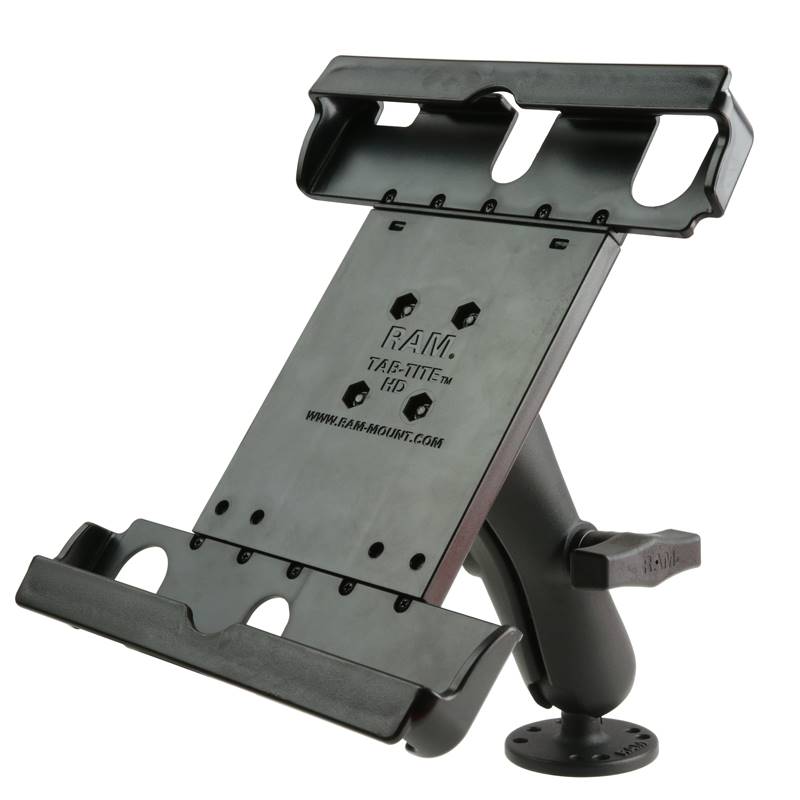

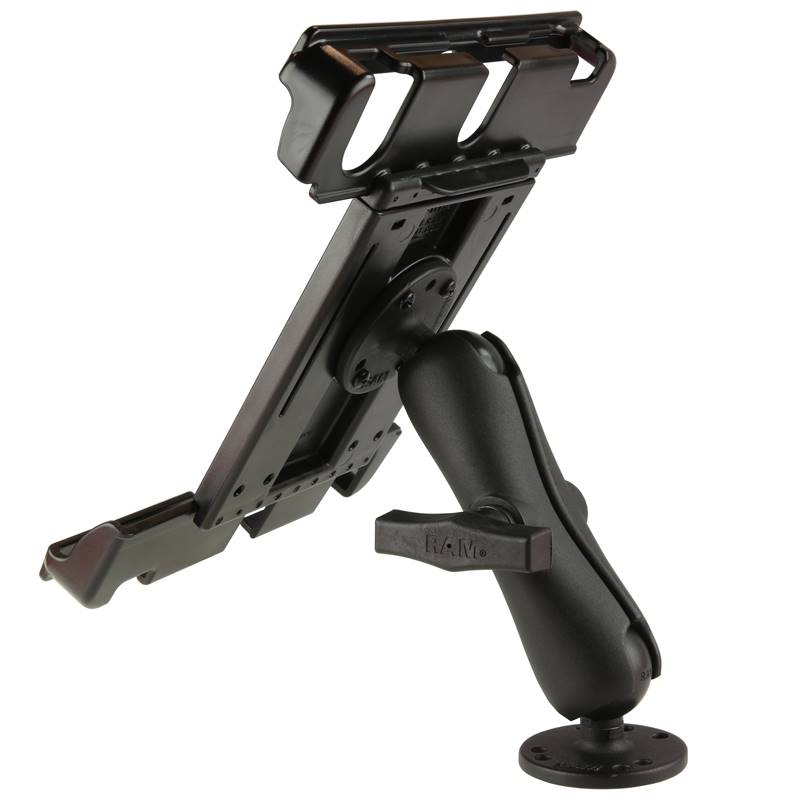

The RAM Tab-Tite drill-down mount for large
tablets consists of a 2.5 INCHES diameter C size round base with the universal AMPS hole pattern, double
socket arm, round base adapter and RAM Tab-Tite universal clamping cradle. The
mount is designed with a RAM 1.5 INCHES diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment
and perfect viewing angles. The included Tab-Tite cradle includes a spring loaded back plate
and custom support cups for 10 INCHES screen tablets with heavy duty cases. The spring loaded design makes it
easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup
ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb,
power, and other ports, your tablet can be used just as it was intended. The RAM
Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It
is important to verify the dimensions of your tablet when determining the overall size.
FEATURES
Spring-loaded holder secures most 10 INCHES tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
Includes C size double ball and socket mount with drill-down base; 4-hole AMPS pattern
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 9 INCHES - 11.5 INCHES Width Range: 6.38 INCHES - 8.31 INCHES Depth Range: .13 INCHES - 1.12 INCHES
Socket-to-Socket Length
4.66 INCHES
Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameter
Plate Size
2.5 INCHES Diameter
Ball/Socket Size
C Size (1.5 INCHES)
Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
Materials
Marine-grade aluminum High strength composite
Packaging Type
Poly Bag
