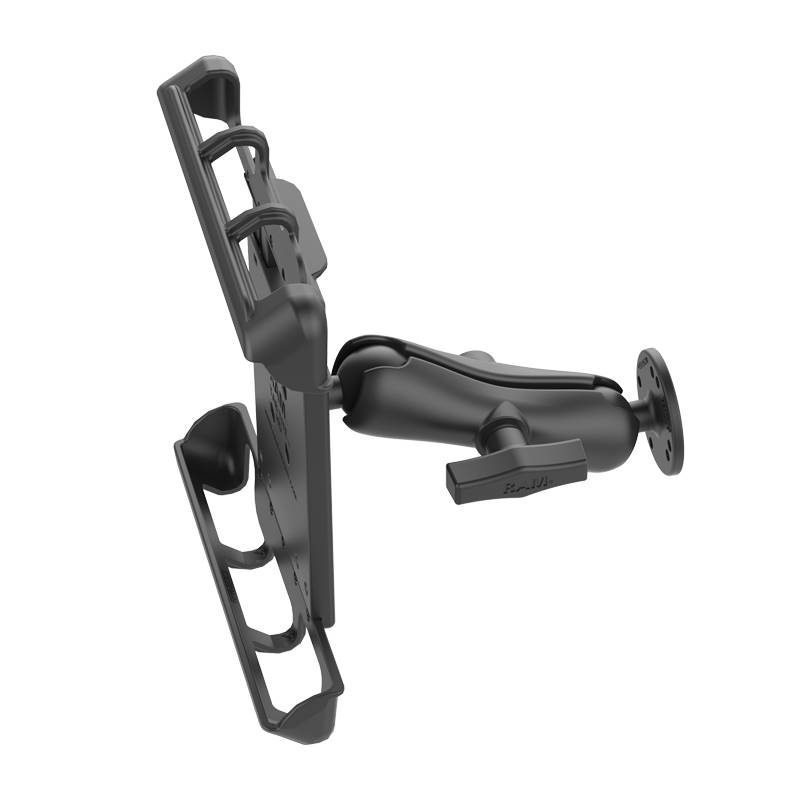

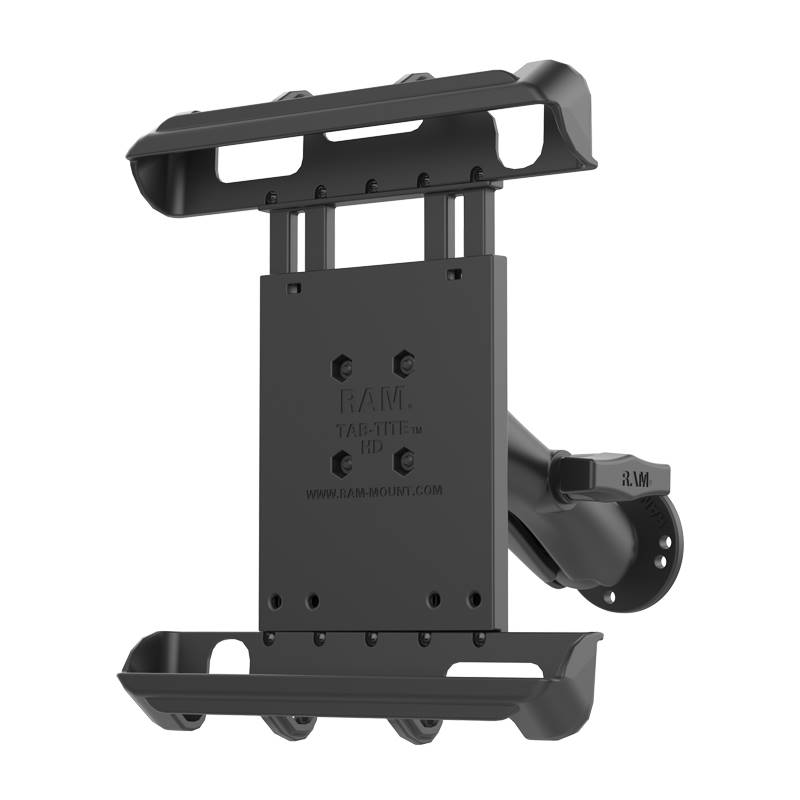

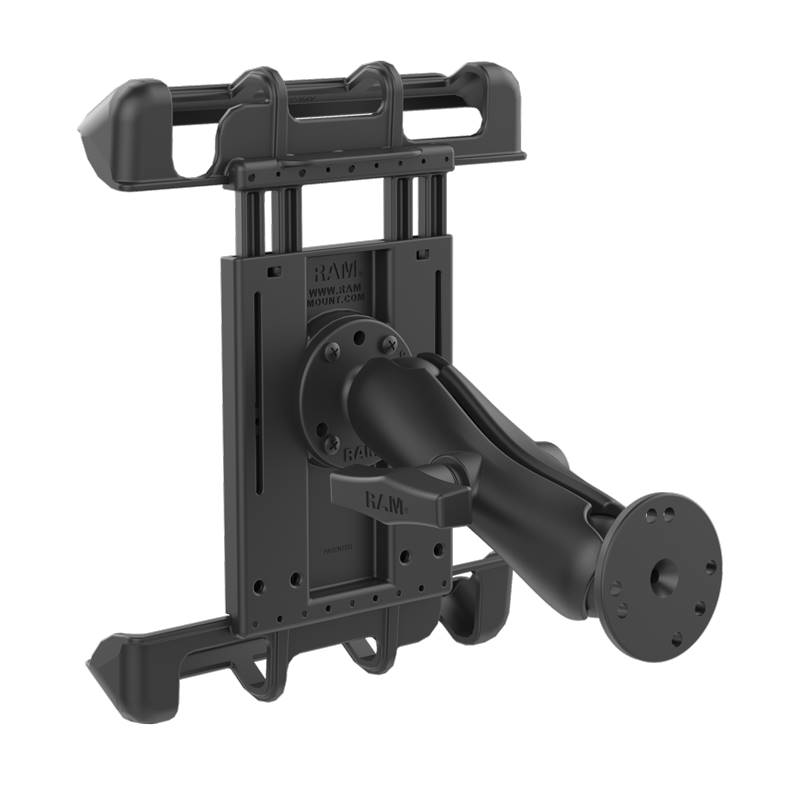

RAM-138-TAB8U RAM Tab-Tite Flat Surface Mount for iPad
RAM-138-TAB8U RAM Tab-Tite Flat Surface Mount for iPad
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442012815
Mfg Part #:
RAM-138-TAB8U
Availability:
In Stock
Part Number:
RAM-138-TAB8U
Quantity
Couldn't load pickup availability
Share
- Description
The RAM Handlebar U-Bolt Double Ball Mount with Round Plate
consists of a C size (1.5 INCHES) zinc coated u-bolt base, short C size double socket arm and C size
RAM round base adapter for attaching a tablet holder. The round base adapter has a hole
pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of
RAM Mount and/or third party tablet holders. Included in this package is hardware that will
accommodate handlebars and rails from 0.50 INCHES to 1.25 INCHES in diameter. A composite rail adapter can narrow
the rail to a minimum width of 0.5”. The mount is designed with a RAM C size 1.5 INCHES diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket arm;
this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for
securley mounting a tablet to a motorcycle or ATV/UTV vehicle.
FEATURES
Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder; connects to RAM device holders containing the universal AMPS hole pattern
Includes, C size (1.5 INCHES) 4-hole round RAM ball adapter, U-bolt base that accommodates rails from .5 INCHES to 1.25 INCHES in diameter and a short length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
Backed by a lifetime warranty
Hardware Included
(1) 1/4 INCHES-20 U-Bolt for .5 INCHES - 1 INCHES Rails (1) 1/4 INCHES-20 U-Bolt for 1 INCHES - 1.25 INCHES Rails
(2) 1/4 INCHES-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
Clamp Range
.5 INCHES - 1.25 INCHES diameter
Socket-to-Socket Length
2.5 INCHES
Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameter
Ball/Socket Size
C Size (1.5 INCHES)
Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
consists of a C size (1.5 INCHES) zinc coated u-bolt base, short C size double socket arm and C size
RAM round base adapter for attaching a tablet holder. The round base adapter has a hole
pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of
RAM Mount and/or third party tablet holders. Included in this package is hardware that will
accommodate handlebars and rails from 0.50 INCHES to 1.25 INCHES in diameter. A composite rail adapter can narrow
the rail to a minimum width of 0.5”. The mount is designed with a RAM C size 1.5 INCHES diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket arm;
this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for
securley mounting a tablet to a motorcycle or ATV/UTV vehicle.
FEATURES
Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder; connects to RAM device holders containing the universal AMPS hole pattern
Includes, C size (1.5 INCHES) 4-hole round RAM ball adapter, U-bolt base that accommodates rails from .5 INCHES to 1.25 INCHES in diameter and a short length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
Backed by a lifetime warranty
Hardware Included
(1) 1/4 INCHES-20 U-Bolt for .5 INCHES - 1 INCHES Rails (1) 1/4 INCHES-20 U-Bolt for 1 INCHES - 1.25 INCHES Rails
(2) 1/4 INCHES-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
Clamp Range
.5 INCHES - 1.25 INCHES diameter
Socket-to-Socket Length
2.5 INCHES
Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameter
Ball/Socket Size
C Size (1.5 INCHES)
Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
