RAM-166-202U_RAM Twist-Lock Suction Cup Mount with Roun
RAM-166-202U_RAM Twist-Lock Suction Cup Mount with Roun
Regular price
$66.49 USD
Regular price
Sale price
$66.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442937163
Mfg Part #:
RAM-166-202U
Availability:
In Stock
Part Number:
RAM-166-202U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

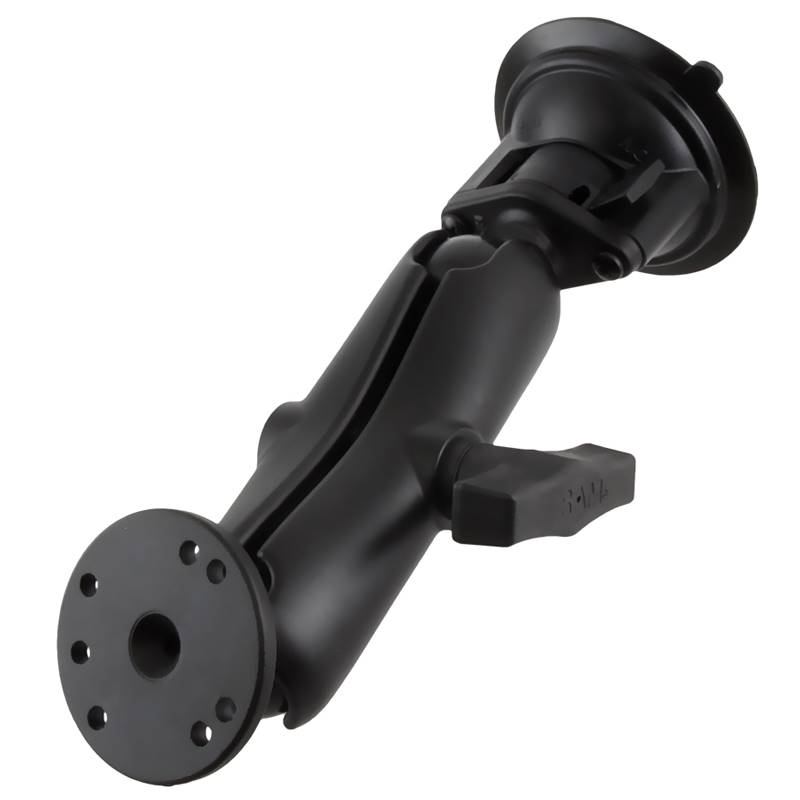

The RAM-166-202U consists of a 3.3" diameter suction cup twist lock base, 1.5" diameter double
socket arm and round base adapter that contains the universal AMPs hole pattern. The suction cup,
twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces,
including adhesive disks. The hole pattern found on the round base adapter will connect to many RAM
cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that
has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.23 lbs.
socket arm and round base adapter that contains the universal AMPs hole pattern. The suction cup,
twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces,
including adhesive disks. The hole pattern found on the round base adapter will connect to many RAM
cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that
has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.23 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. This mount does not require any drilling for installation.
- Weight:1.23 lbs.
