RAM Tab-Tite Large Tablet Mount with RAM

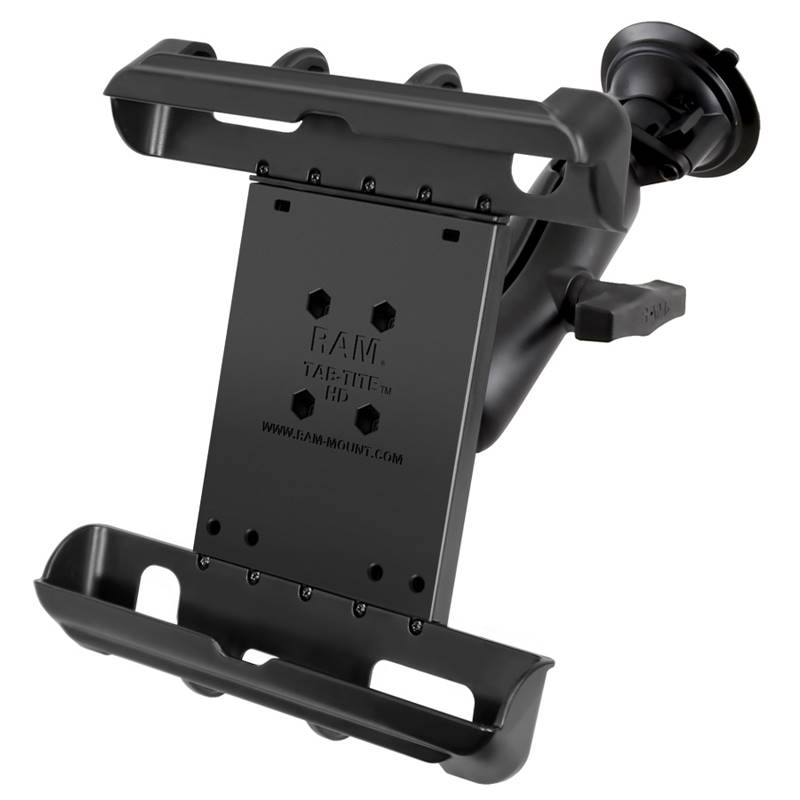

The RAM-B-166-TAB17U consists of a 3.3" diameter suction cup twist lock base with 1.5" dia. ball,
double socket arm, round base adapter and Tab-Tite universal clamping cradle. The suction cup base
is designed to have a strong hold on glass and non-porous plastic surfaces. The spring loaded Tab-
Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the
go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing
access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is
important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
4.66"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.48 lbs.
