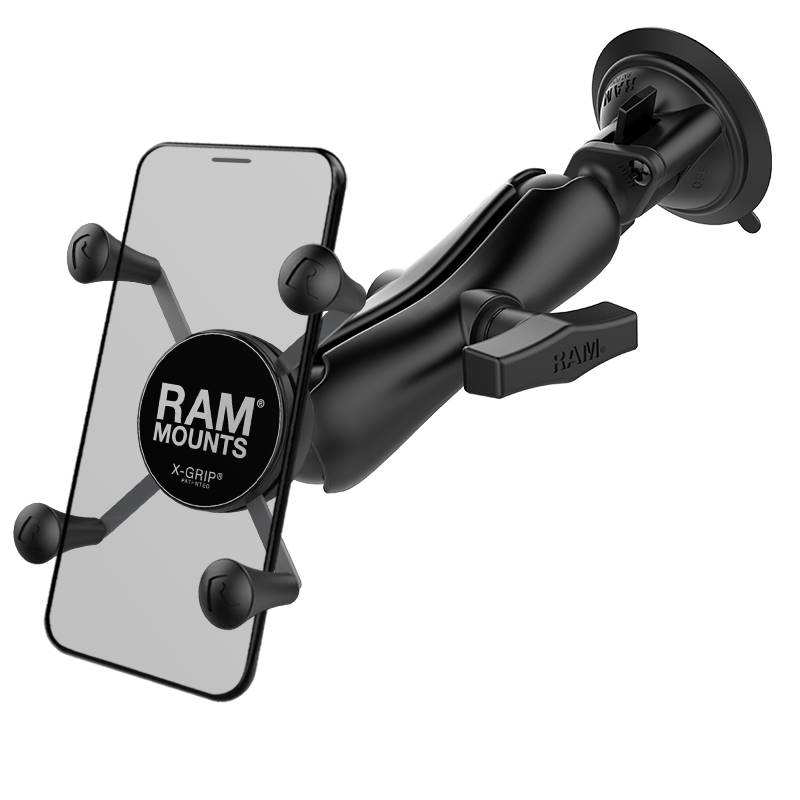

The RAM-166-UN7U consists of a 3.3" diameter suction cup twist lock base, 1.5" diameter double
socket arm and universal spring loaded X-Grip cradle for cell phones. The suction cup, twist lock
base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM
adhesive disks. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. The included X-Grip cradle has a clean and clever
four leg design that sports great holding power without hiding your phone behind foam pads and
plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit
of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM
X-Grip is the cell phone cradle evolved.
HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
4.66"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.3 lbs.
socket arm and universal spring loaded X-Grip cradle for cell phones. The suction cup, twist lock
base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM
adhesive disks. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. The included X-Grip cradle has a clean and clever
four leg design that sports great holding power without hiding your phone behind foam pads and
plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit
of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM
X-Grip is the cell phone cradle evolved.
HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
4.66"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.3 lbs.
Purchase Includes:
- (QTY. 1), Optional Tether Included
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:C Size 1.5" Rubber Ball
- Note:The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.The "U" in the part number reflects product packaged in poly bag.
- Weight:1.3 lbs.
