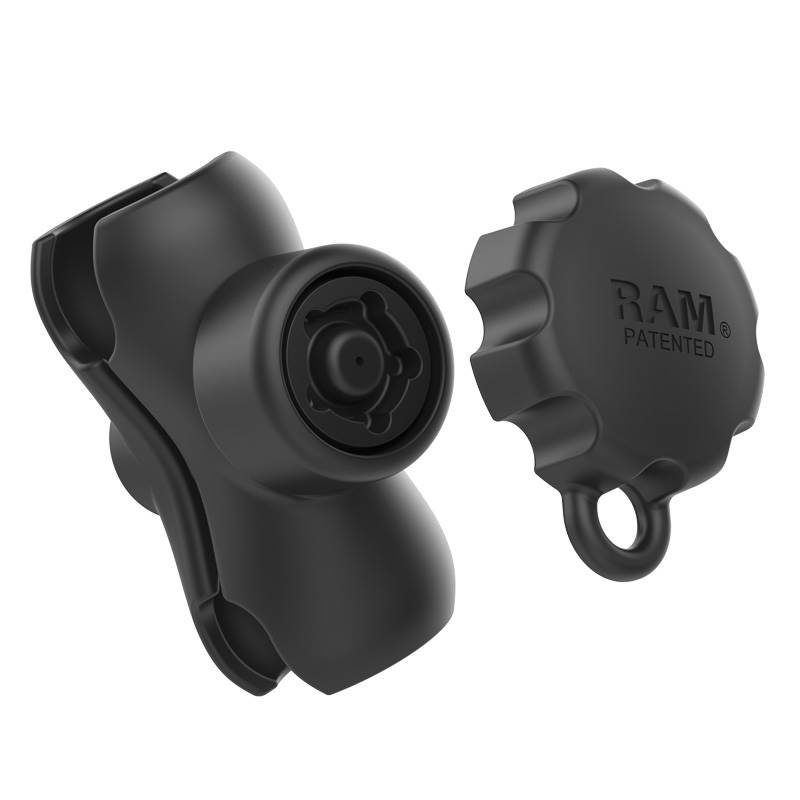

RAM Double Socket Arm with RAM Pin-Loc

This heavy duty ATV/UTV mount is the perfect solution for securing most
9 INCHES tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose
clamp base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the
RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry
about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt,
allowing you to modify the mount to accommodate mounting location. The base also includes black cover
caps to be placed over the exposed ends of the u-bolt. The included RAM Tab-Lock
tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes
it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The
custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports
and tablet functions. The Tab-Lock cradle is compatible with any tablet that will fit the
dimensions listed below. It is important to verify the dimensions of your tablet when determining the
overall size.

FEATURES

Spring-loaded holder secures most 9 INCHES-10.5 INCHES tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices

Includes rail and bar base for UTVs and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Hardware Included
Assembly Hardware (1) Strap Clamp Adapter (2) 1/4 INCHES-20 x 1 INCHES Machine Screws
(2) 1/4 INCHES-20 Nylock Nuts (1) Zinc Worm Drive Strap Clamp (1) 6 INCHES Rubber Strip (1) 1/4 INCHES-20
U-Bolt for .5 INCHES - 1 INCHES Rails (1) 1/4 INCHES-20 U-Bolt for 1 INCHES - 1.25 INCHES Rails (2) Rubber Caps (1) U-Bolt
Spacer

Holder Dimensions
Height Range: 9.25 INCHES - 12.125 INCHES Width Range: 6.55 INCHES - 7.43 INCHES Depth Range: .3 INCHES -
.875 INCHES

Clamp Range
U-Bolt: .5 INCHES - 1.25 INCHES diameter Strap Clamp: 1.57 INCHES - 3.15 INCHES diameter

Socket-to-Socket Length
4.66 INCHES

Ball/Socket Size
C Size (1.5 INCHES)

Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

Materials
Marine-grade aluminum High strength composite

Packaging Type
Poly Bag

Weight
2.8 lbs.
