RAM-202-400U RAM Tough-Claw Small Clamp Mount with Round
RAM-202-400U RAM Tough-Claw Small Clamp Mount with Round
Regular price
$85.99 USD
Regular price
Sale price
$85.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442949562
Mfg Part #:
RAM-200-400U
Availability:
In Stock
Part Number:
RAM-200-400U
Quantity
Couldn't load pickup availability
Share
- Description
- Components

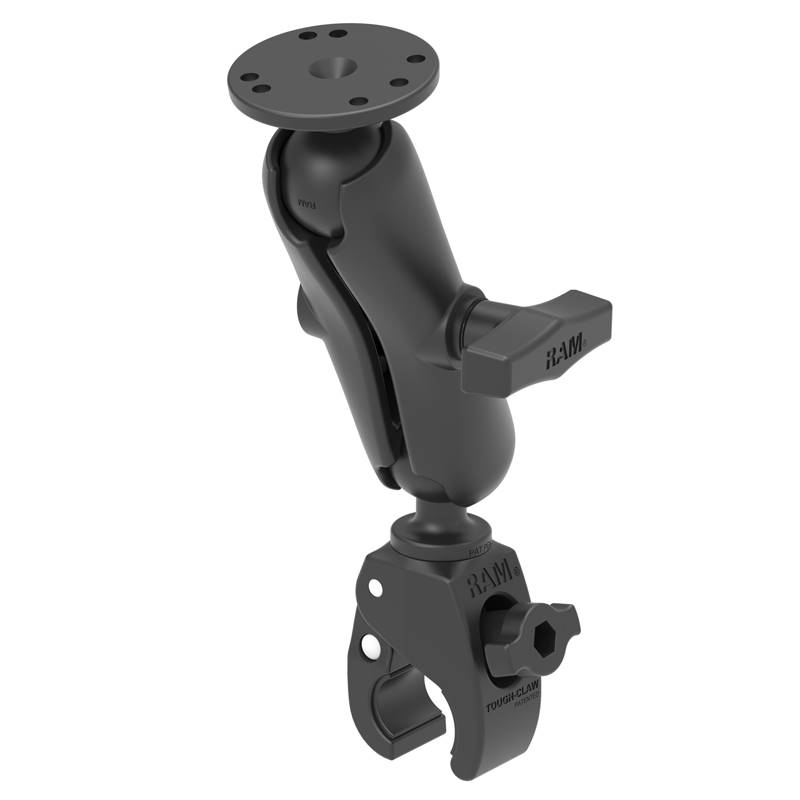

The RAM-202-400 consists of the small Tough-Claw base, double socket arm and round base adapter.
The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and
removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from
0.625" - 1.5" outer diameter. The round base adapter contains the industry standard universal AMPS
hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount
is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles.
CLAMP RANGE
.625" - 1.5" diameter
0" - 1.14" flat surfaces
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
WEIGHT
1.42 lbs.
The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and
removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from
0.625" - 1.5" outer diameter. The round base adapter contains the industry standard universal AMPS
hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount
is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles.
CLAMP RANGE
.625" - 1.5" diameter
0" - 1.14" flat surfaces
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
WEIGHT
1.42 lbs.
