RAM Tough-Claw Small Clamp Mount with Ro

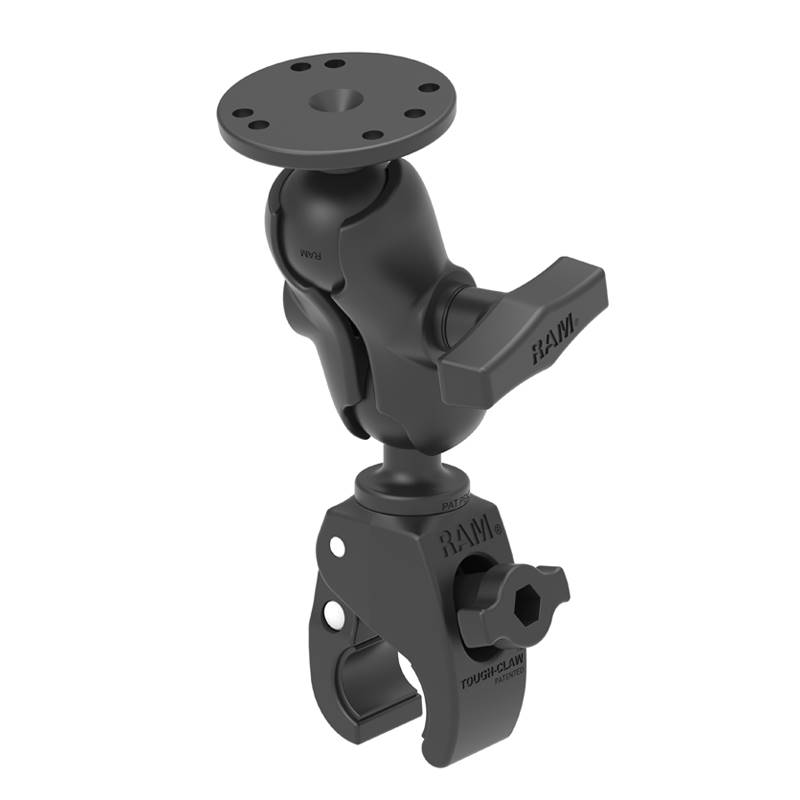

The RAM-202-B-400U consists of the small Tough-Claw base, short double socket arm and round base
adapter. The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation
and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails
from 0.625" - 1.5" outer diameter. The round base adapter contains the industry standard universal
AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The
mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.

CLAMP RANGE
.625" - 1.5" diameter
0" - 1.14" flat surfaces

SOCKET-TO-SOCKET LENGTH
2.5"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.09 lbs.
