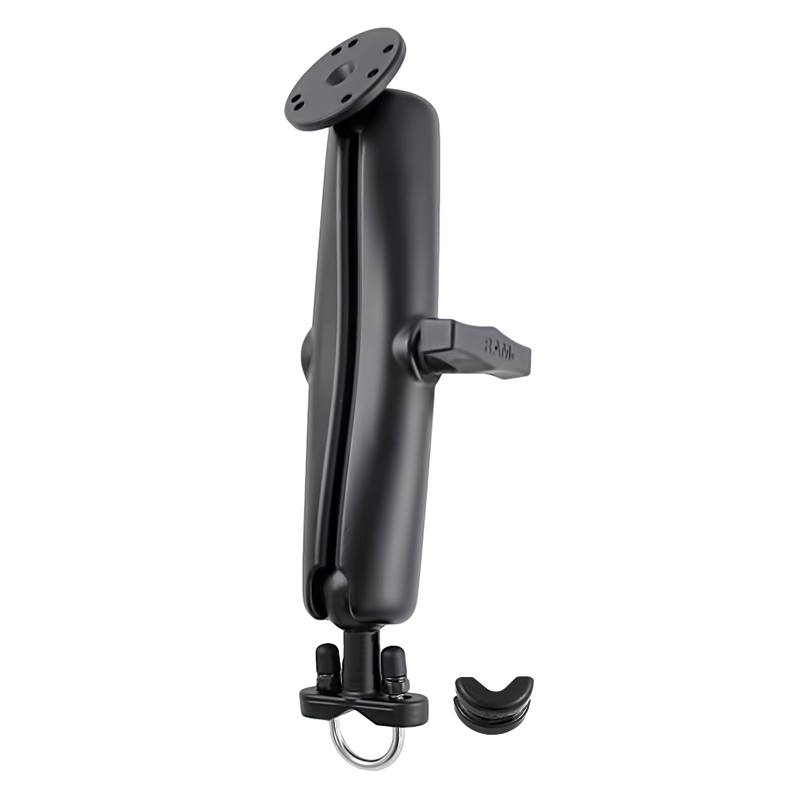

RAM Handlebar U-Bolt Double Ball Mount -

The RAM-231-D-202U consists of a stainless steel u-bolt base, 1.5" diameter LONG double socket arm
and round base adapter that contains the universal AMPs hole pattern. Included in this package is
hardware that will accommodate rails from 0.50" to 1" in diameter. The base includes black cover aps
to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the
rail to a minimum width of 0.5". The mount is designed with a RAM 1.5" diameter patented rubber ball
and socket system that has adjustment points at both ends of the double socket arm; this allowing
for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1" diameter

SOCKET-TO-SOCKET LENGTH
8"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
2.11 lbs.
