RAM ATV/UTV Rail Ball Base

Designed for a clean installation, RAM-231Z-2U base accommodates most common tubing sizes on UTV’s
and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp
in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening.
Included in the kit is a zinc coated metal u-bolt, this allowing you to modify the mount to
accommodate mounting location. The base also includes black cover caps to be placed over the exposed
ends of the u-bolt.

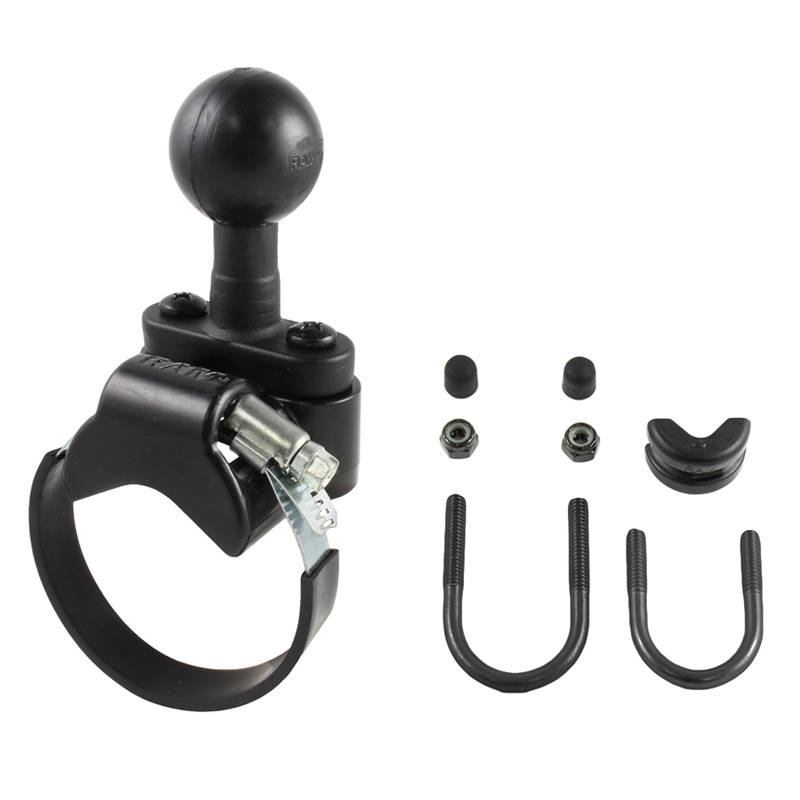

HARDWARE INCLUDED
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components

Included C size 1.5" RAM rubber ball allows for connection to any C size RAM double socket arm;
ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.45 lbs.
