RAM-234-PAN1P-2RF RAM Tough-Dock with Dual RF for Panas

RAM-234-PAN1P-2RF RAM Tough-Dock with Dual RF for Panas

$735.99 USD
$735.99 USD
Sale Sold out
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442944291
Mfg Part #:
RAM-234-PAN1P-2RF
Availability:
Out Of Stock
Part Number:
RAM-234-PAN1P-2RF
View full details
  • Description
  • Additional Info

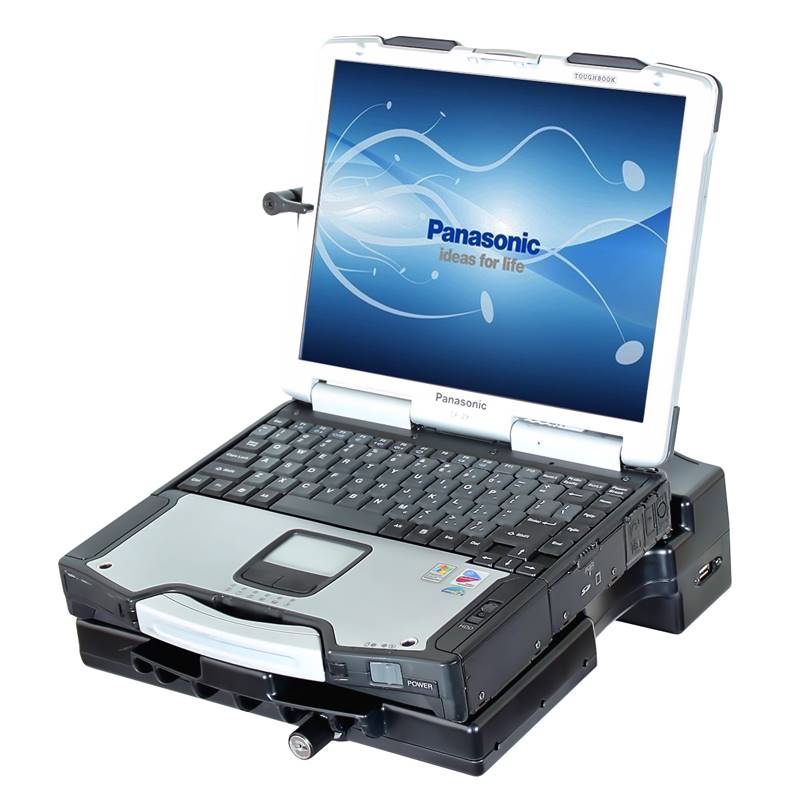

RAM Tough-Dock Powered Docking Station with Port Replication and DUAL RF PASS THROUGH for Panasonic
Toughbook CF-28, CF-29, CF-30 and CF-31 Rugged Laptops.

MATERIALS
High strength composite

PACKAGING TYPE
Box

INPUT RANGE
12-30V DC

PORTS
(1) RJ45 LAN
(1) DC Input
(5) USB 2.0
(1) VGA Output
(1) DB9 Serial Connection
(1) Speaker Out

CERTIFICATIONS
Overcurrent/Surge Protection
Reverse Polarity Protection
Radio Frequency Isolation
Dual RF Pass Through

WARRANTY STATUS
3 year warranty

WEIGHT
7.05 lbs.

  • Material:High Strength Composite Enclosure and Powder Coated Marine Grade Aluminum
  • Weight:7.05 lbs.
Standard Features:
  • Integrated Power Supply
  • Integrated Screen Support
  • Tamper Proof Lock
  • 12-30 Volt DC Input
  • Overcurrent / Surge Protection
  • Reverse Polarity Protection
  • Radio Frequency Isolation
  • Dual RF Pass Through
  • Military Grade Construction
  • External Fuse
  • External Power Switch
  • Docked/Powered LED Indicators
Port Replication:
  • (1 qty) RJ-45 LAN
  • (1 qty) DC Input
  • (4 qty) USB 2.0 on Replicator Board
  • (1 qty) USB 2.0 on Side of Dock
  • (1 qty) VGA Output
  • (1 qty) DB-9 Serial Connection
  • (1 qty) Speaker Out
Warranty Information:
  • 3 year warranty on electrical and electronic parts
  • Lifetime warranty on mechanical parts
  • Lifetime warranty on all metal parts
