RAM-234-PAN7P RAM Tough-Dock for Panasonic Toughbook CF
RAM-234-PAN7P RAM Tough-Dock for Panasonic Toughbook CF
Regular price
$611.49 USD
Regular price
Sale price
$611.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442931796
Mfg Part #:
RAM-234-PAN7P
Availability:
Out Of Stock
Part Number:
RAM-234-PAN7P
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

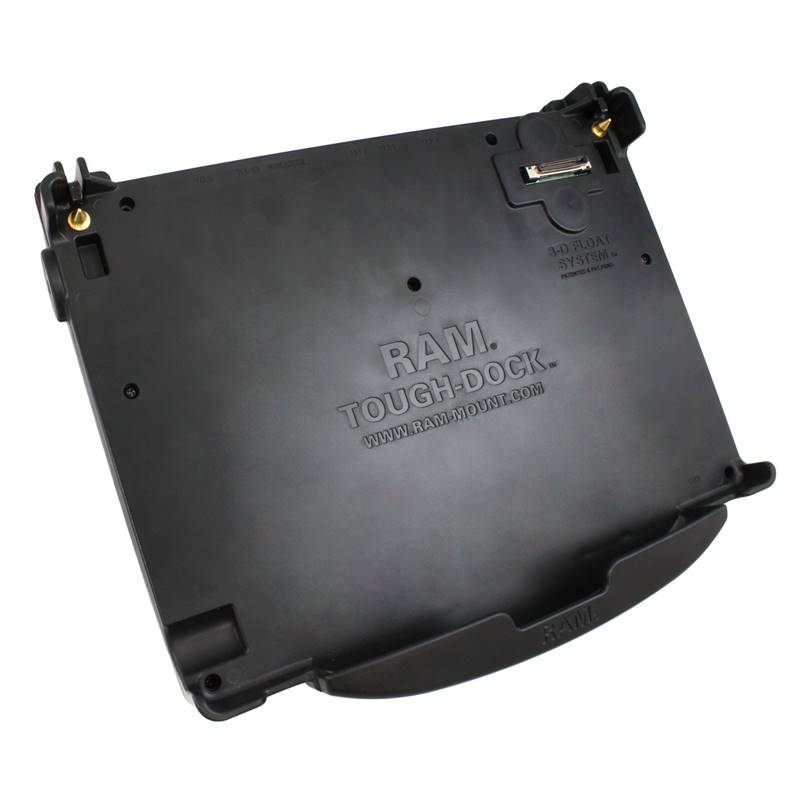

RAM Tough-Dock Powered Dock with port replication for the Panasonic Toughbook CF-52.
HARDWARE INCLUDED
(4) 1/4"-20 x 3/4" Machine Screws
MATERIALS
High strength composite
PACKAGING TYPE
Box
INPUT RANGE
12-30V DC
PORTS
(1) RJ45 LAN
(1) DC Input
(5) USB 2.0
(1) VGA Output
(1) DB9 Serial Connection
(1) Speaker Out
CERTIFICATIONS
Overcurrent/Surge Protection
Reverse Polarity Protection
Radio Frequency Isolation
Dual RF Pass Through
WARRANTY STATUS
3 year warranty
WEIGHT
8.15 lbs.
HARDWARE INCLUDED
(4) 1/4"-20 x 3/4" Machine Screws
MATERIALS
High strength composite
PACKAGING TYPE
Box
INPUT RANGE
12-30V DC
PORTS
(1) RJ45 LAN
(1) DC Input
(5) USB 2.0
(1) VGA Output
(1) DB9 Serial Connection
(1) Speaker Out
CERTIFICATIONS
Overcurrent/Surge Protection
Reverse Polarity Protection
Radio Frequency Isolation
Dual RF Pass Through
WARRANTY STATUS
3 year warranty
WEIGHT
8.15 lbs.
- Material:High Strength Composite Enclosure
- Note:75mm x 75mm VESA ball/base adapter not included with purchase.
- Weight:8.15 lbs.
Standard Features:
- Integrated Power Supply
- Tamper Proof Lock
- 12-30 Volt DC Input
- Overcurrent / Surge Protection
- Reverse Polarity Protection
- Radio Frequency Isolation
- Dual RF Pass Through
- Integrated Screen Support
- Military Grade Construction
- External Fuse
- External Power Switch
- 75 x 75 VESA Mounting Hole Pattern
- Integrated Screen Support
Port Replication:
- (1 qty) RJ-45 LAN
- (2 qty) DC Input
- (4 qty) USB 2.0 on Replicator Board
- (1 qty) USB 2.0 on Side of Dock
- (1 qty) VGA Output
- (1 qty) DB-9 Serial Connection
- (1 qty) Speaker Out
Warranty Information:
- 3 year warranty on electrical and electronic parts
- Lifetime warranty on mechanical parts
