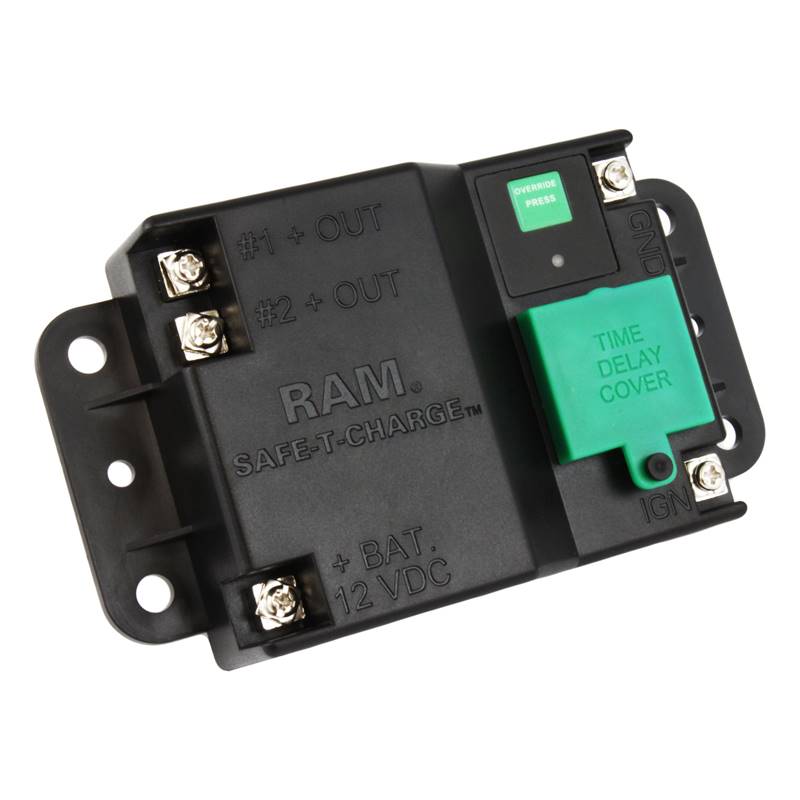

RAM Safe-T-Charge Battery Protection Syst
RAM Safe-T-Charge Battery Protection Syst
Regular price
$65.49 USD
Regular price
Sale price
$65.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442928802
Mfg Part #:
RAM-234-VCP1U
Availability:
In Stock
Part Number:
RAM-234-VCP1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
The RAM Safe-T-Charge is feature rich and affordable making it the best choice in protecting your
vehicle or boat’s electrical system and battery. With multiple configurations available through
onboard dip switches, the Safe-T-Charge can be configured to shut down connected devices either by
a trigger coming from the ignition of the vehicle or by sensing a drop in the DC voltage below a
level capable of starting your engine. Easily select a predetermined duration of time to have your
connected devices shut down to assure you will always be able to start your vehicle. The RAM Safe-T-
Charge offers a audible tone starting five minutes before the timer shuts off power to your
devices, and continuing every minute until the power is shut down. The on board over-ride switch
enables the user to by pass the timed shut off feature in the case of an emergency or other event
which requires immediate access to device power.
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
PORTS
Battery + 12V Input Terminal
Output Terminal
Ground Terminal
IGN Terminal
Override Switch
CERTIFICATIONS
30AMP Rating
24V Jump Start Protection
WEIGHT
0.44 lbs.
vehicle or boat’s electrical system and battery. With multiple configurations available through
onboard dip switches, the Safe-T-Charge can be configured to shut down connected devices either by
a trigger coming from the ignition of the vehicle or by sensing a drop in the DC voltage below a
level capable of starting your engine. Easily select a predetermined duration of time to have your
connected devices shut down to assure you will always be able to start your vehicle. The RAM Safe-T-
Charge offers a audible tone starting five minutes before the timer shuts off power to your
devices, and continuing every minute until the power is shut down. The on board over-ride switch
enables the user to by pass the timed shut off feature in the case of an emergency or other event
which requires immediate access to device power.
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
PORTS
Battery + 12V Input Terminal
Output Terminal
Ground Terminal
IGN Terminal
Override Switch
CERTIFICATIONS
30AMP Rating
24V Jump Start Protection
WEIGHT
0.44 lbs.
Dimensions:
- L x W x H = (95 mm/3.74”) x (80mm/3.15”) x (32mm/1.26”)
- Material:ABS, flame retardant plastic construction
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.44 lbs.
Standard Features:
- Battery + 12V input terminal
- Output terminal (More outputs can be connected by overlapping the wires and fastening.)
- Ground terminal
- IGN terminal
- Over ride switch
- Timer start LED
- Selector for DC or IGN sense
- 3-dip switch for time set
- Mounting holes
- Sticker on turning cover for indication of time setting
- Water-proof for use in marine environments
- 30AMP Rating
- 24V jump start protection
