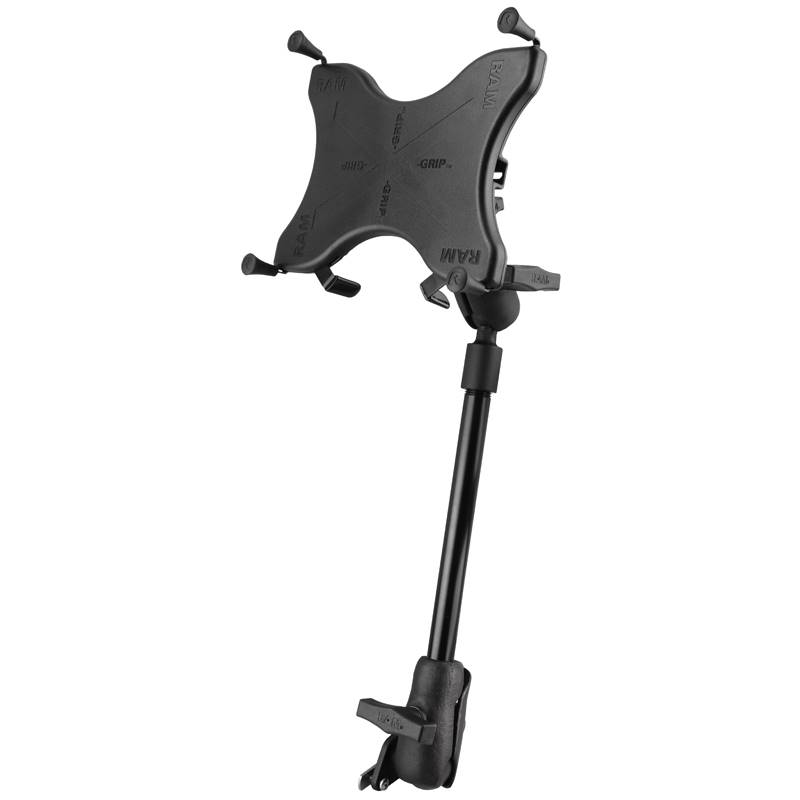

RAM-238-WCT-9-UN9 RAM X-Grip Wheelchair Seat Track Moun

This kit includes a C size RAM diamond ball base with a universal hardware pack that accommodates
the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the
included short single socket arm, pipe extension, and double socket arm, connect the RAM X-Grip
universal holder for 9”-10” tablets. The spring-loaded RAM X-Grip provides a perfect fit for your
tablet and can be easily adjusted to the ideal position.

HARDWARE INCLUDED
Assembly Hardware
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

T-BOLT DIMENSIONS
Large: .48" x .95"
Small: .375" x .593"

HOLE PATTERN
2-Hole AMPS 1.912"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Retail Bag

ADDITIONAL INFORMATION


WEIGHT
2.81 lbs.
