RAM Pod III Double Ball Vehicle Mount wi

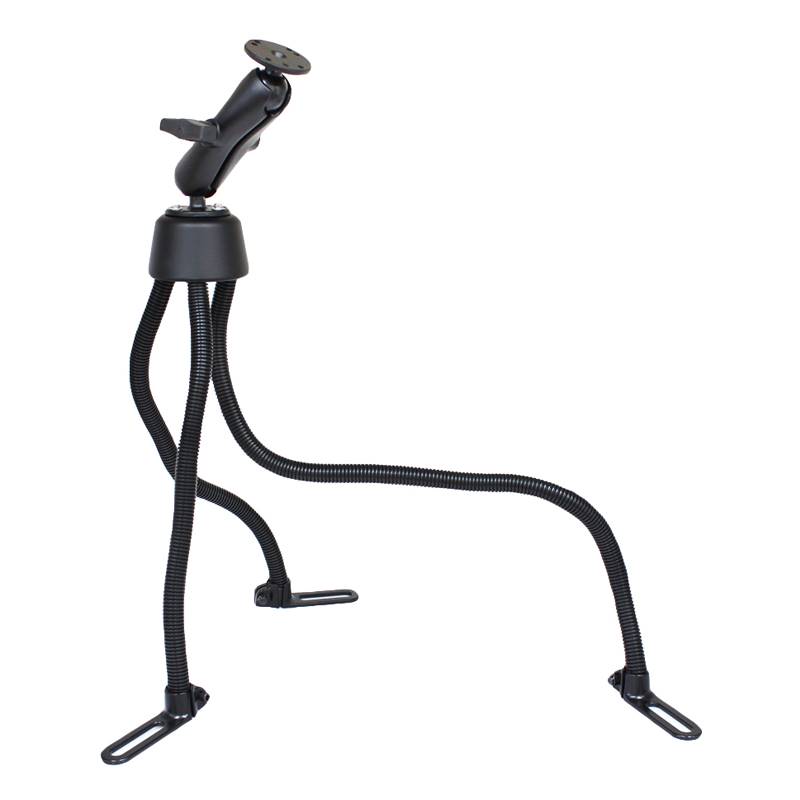

The RAM-316-3-202U consists of the RAM POD III No-Drill vehicle base, three rigid aluminum rod
legs, double socket arm and two 2.5" round bases that contain the universal AMPs hole pattern. The
base of the mount connects to your seat rail without any drilling necessary. The rigid aluminum rod
legs can be bent to position your device to its optimum viewing location. The mount is designed with
a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends
of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The universal AMPs hole pattern found on the round base adapter will connect to many RAM cradles.

HARDWARE INCLUDED
Assembly Hardware

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
6.0 lbs.
