RAM Pod HD Vehicle Mount for ’07
RAM Pod HD Vehicle Mount for ’07
Regular price
$233.49 USD
Regular price
Sale price
$233.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442008504
Mfg Part #:
RAM-316-HD-18-202-SPRU
Availability:
In Stock
Part Number:
RAM-316-HD-18-202-SPRU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

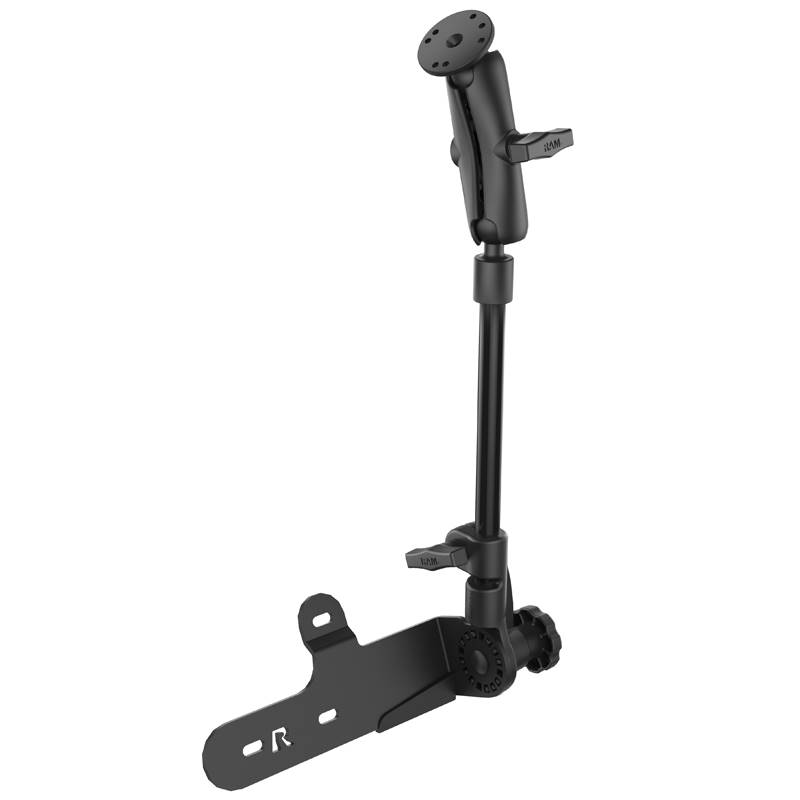

Blending the best of versatility, strength and installation ease, the RAM Pod HD is a workhorse
for fleet transportation and serious consumers alike. This version of the RAM Pod HD vehicle mount
is designed for 2007-2019 Mercedes Sprinter vans, and is RAM Mounts Compatible with device holders
for tablets, small laptops, and other devices. Requiring minimal space in the vehicle cab, the RAM
Pod HD can be removed without the use of tools.
HARDWARE INCLUDED
Assembly Hardware
(3) 1.68" Stand-Offs
(3) M8-1.25 x 70mm Hex Bolts
(4) M8 Steel Washers
(3) 5/16" Lock Washers
(1) M8-1.25 Nut
Stabilizer Foot
PRODUCT DIMENSIONS
Height Range: 24.75" - 31.75"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Powder coated steel
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
4.72 lbs.
for fleet transportation and serious consumers alike. This version of the RAM Pod HD vehicle mount
is designed for 2007-2019 Mercedes Sprinter vans, and is RAM Mounts Compatible with device holders
for tablets, small laptops, and other devices. Requiring minimal space in the vehicle cab, the RAM
Pod HD can be removed without the use of tools.
HARDWARE INCLUDED
Assembly Hardware
(3) 1.68" Stand-Offs
(3) M8-1.25 x 70mm Hex Bolts
(4) M8 Steel Washers
(3) 5/16" Lock Washers
(1) M8-1.25 Nut
Stabilizer Foot
PRODUCT DIMENSIONS
Height Range: 24.75" - 31.75"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Powder coated steel
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
4.72 lbs.
Pole Length:
- Minimum: 24.75”
- Maximum: 31.75”
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:4.72 lbs.
RAM-PA8218
RAM-201U
RAM-218-1U
RAM-202U
RAM-284U
