RAM Double U-Bolt Mount with 75x75mm VESA Pl
RAM Double U-Bolt Mount with 75x75mm VESA Pl
Regular price
$79.49 USD
Regular price
Sale price
$79.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442905100
Mfg Part #:
RAM-334-1U
Availability:
Out Of Stock
Part Number:
RAM-334-1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

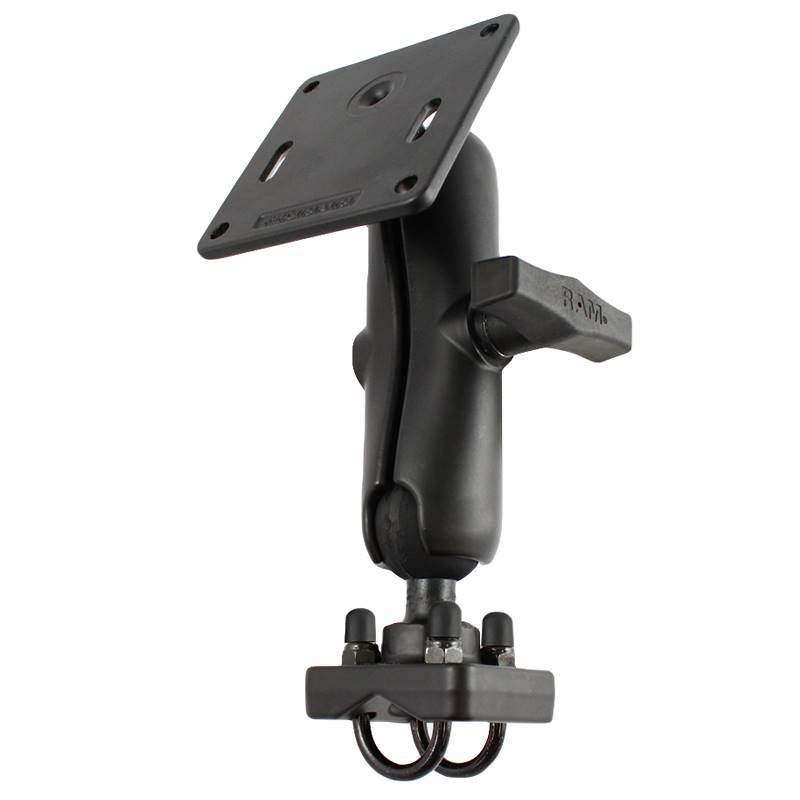

The RAM-334-1U consists of a double socket arm, 3.625" square base with the VESA hole pattern and
stainless steel double u-bolt base that will fit pipes from 0.75" to 1" in diameter. The VESA base
contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for .75" - 1" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
CLAMP RANGE
.75" - 1" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.6 lbs.
stainless steel double u-bolt base that will fit pipes from 0.75" to 1" in diameter. The VESA base
contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for .75" - 1" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
CLAMP RANGE
.75" - 1" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.6 lbs.
U-Bolt Dimensions:
- Accommodates rails from 0.75" to 1" in diameter
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.6 lbs.
