RAM Double U-Bolt Mount with 75x75mm VESA Plat
RAM Double U-Bolt Mount with 75x75mm VESA Plat
Regular price
$75.99 USD
Regular price
Sale price
$75.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442913471
Mfg Part #:
RAM-334U
Availability:
In Stock
Part Number:
RAM-334U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

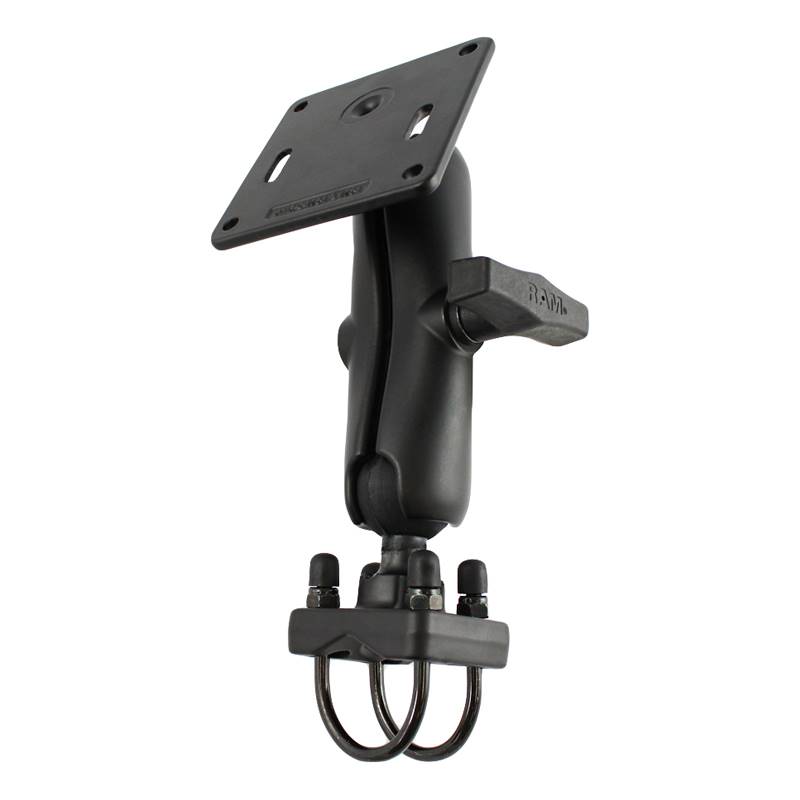

The RAM-334U consists of a double socket arm, 3.625" square plate with a 75mm X 75mm VESA hole
pattern and stainless steel double u-bolt base that will fit pipes from .75" to 1.25" in diameter.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment
points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite
adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
CLAMP RANGE
1" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.65 lbs.
pattern and stainless steel double u-bolt base that will fit pipes from .75" to 1.25" in diameter.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment
points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite
adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
CLAMP RANGE
1" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.65 lbs.
U-Bolt Dimensions:
- Accommodates rails from 1" to 1.25" in diameter
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.65 lbs.
