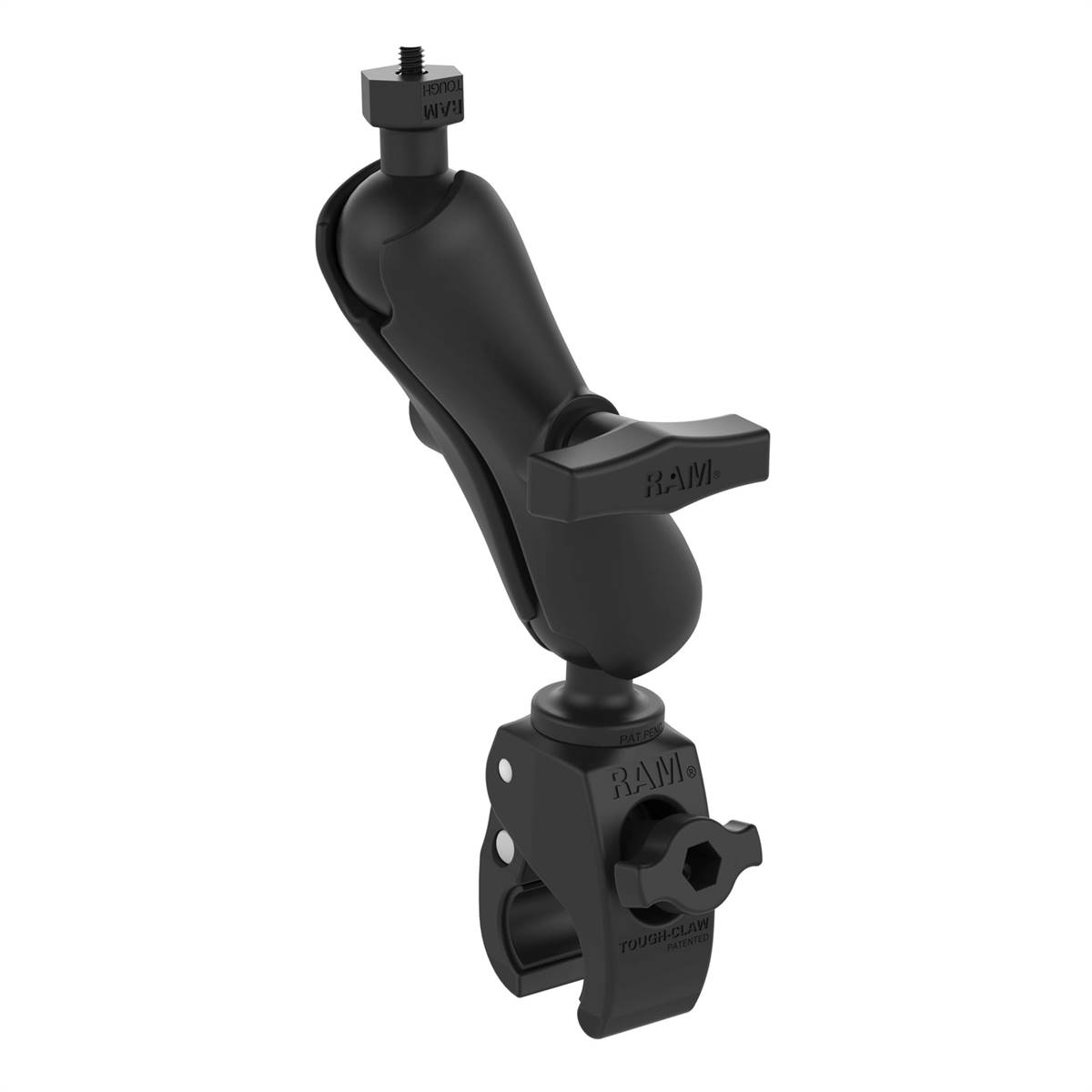

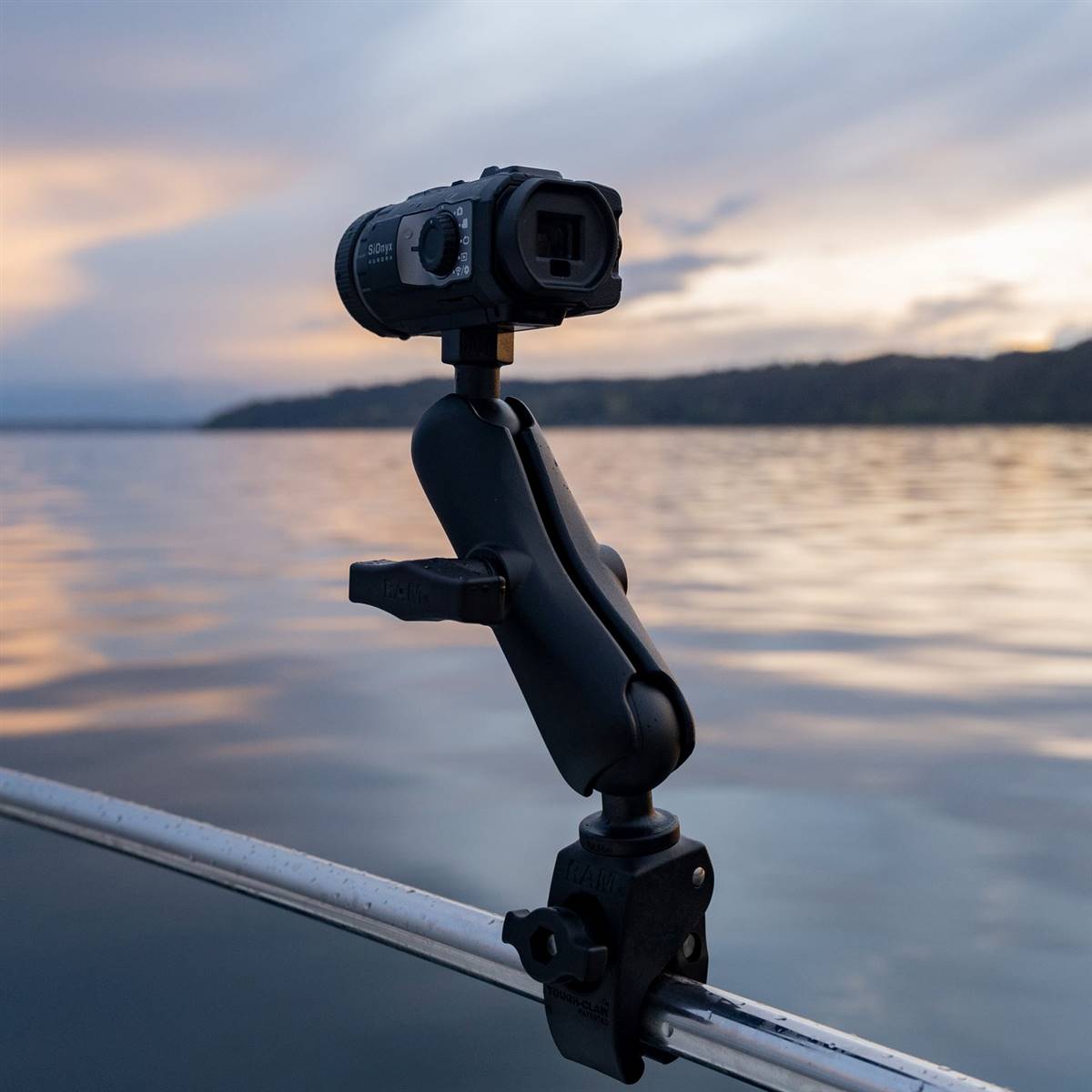

RAM-400-379-252025U RAM Tough-Ball Camera Mount with RA

The RAM Tough-Claw and Tough-Ball are the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM Tough-Claw can quickly be clamped on rails ranging from .625" to 1.14" in outer diameter and is ideal for mounting heavy duty cameras including SIONYX night vision cameras. Perfectly suited for mounting on handlebars, rails or any flat edge. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball. Consists of a 1.5" diameter rubber ball, connected to a 1/4"-20 x .25" male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

FEATURES

Small version of the RAM Tough-Claw base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface.

Medium length double socket arm has an overall length of 5.69" and a socket-to-socket length of 4.66". RAM Tough-Ball features a 1/4"-20 x .25" male threaded post for connection to a variety of devices

Included C size 1.5" RAM rubber balls allows for connection to any C size RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Backed by a lifetime warranty

clamp range
.625" - 1.14" diameter

socket to socket length
4.66"

thread pitch
1/4"-20 x .25"

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumHigh strength composite

packaging type
Poly Bag

Weight
1.21 lb
