RAM Aluminum Track Ball with T-Bolt Attac

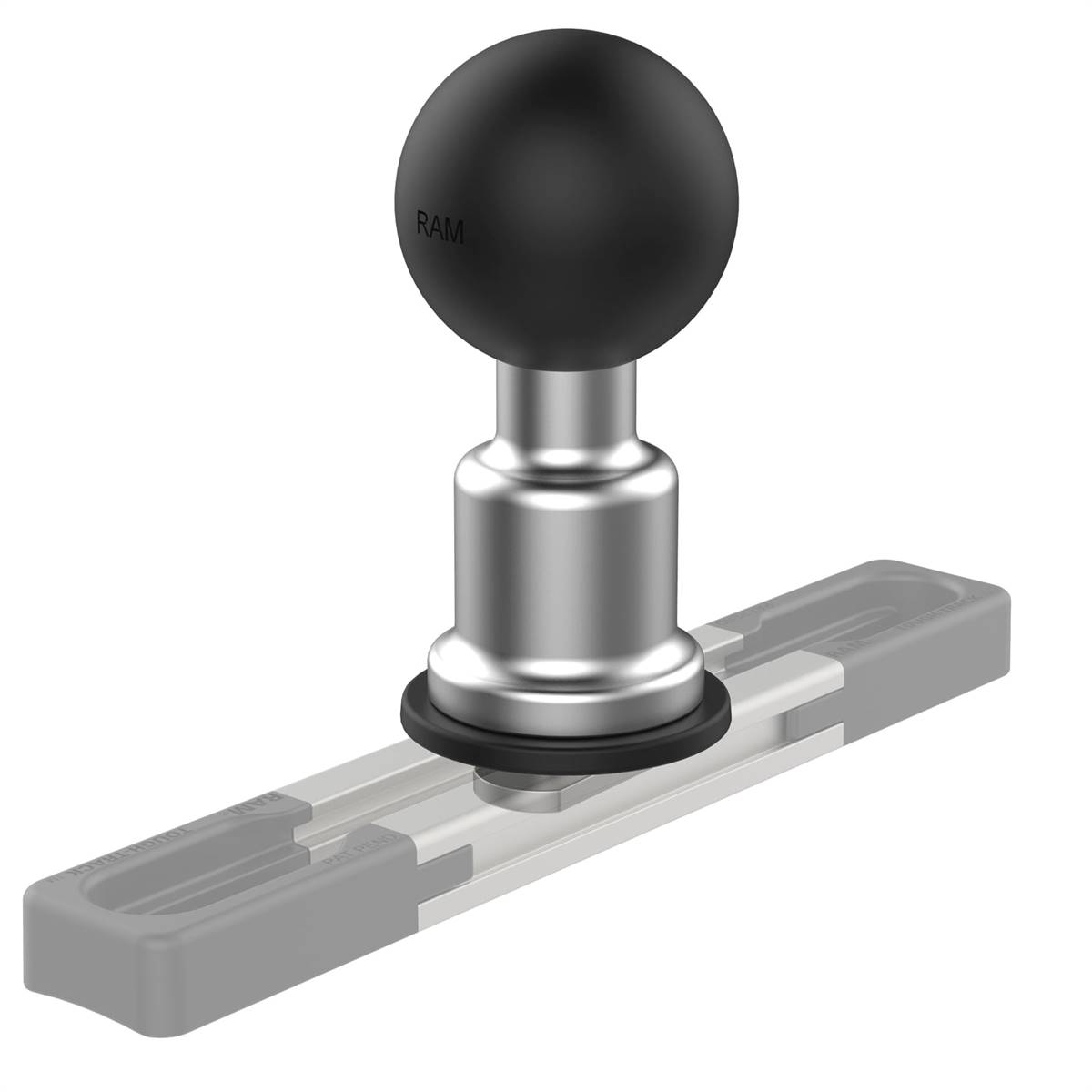

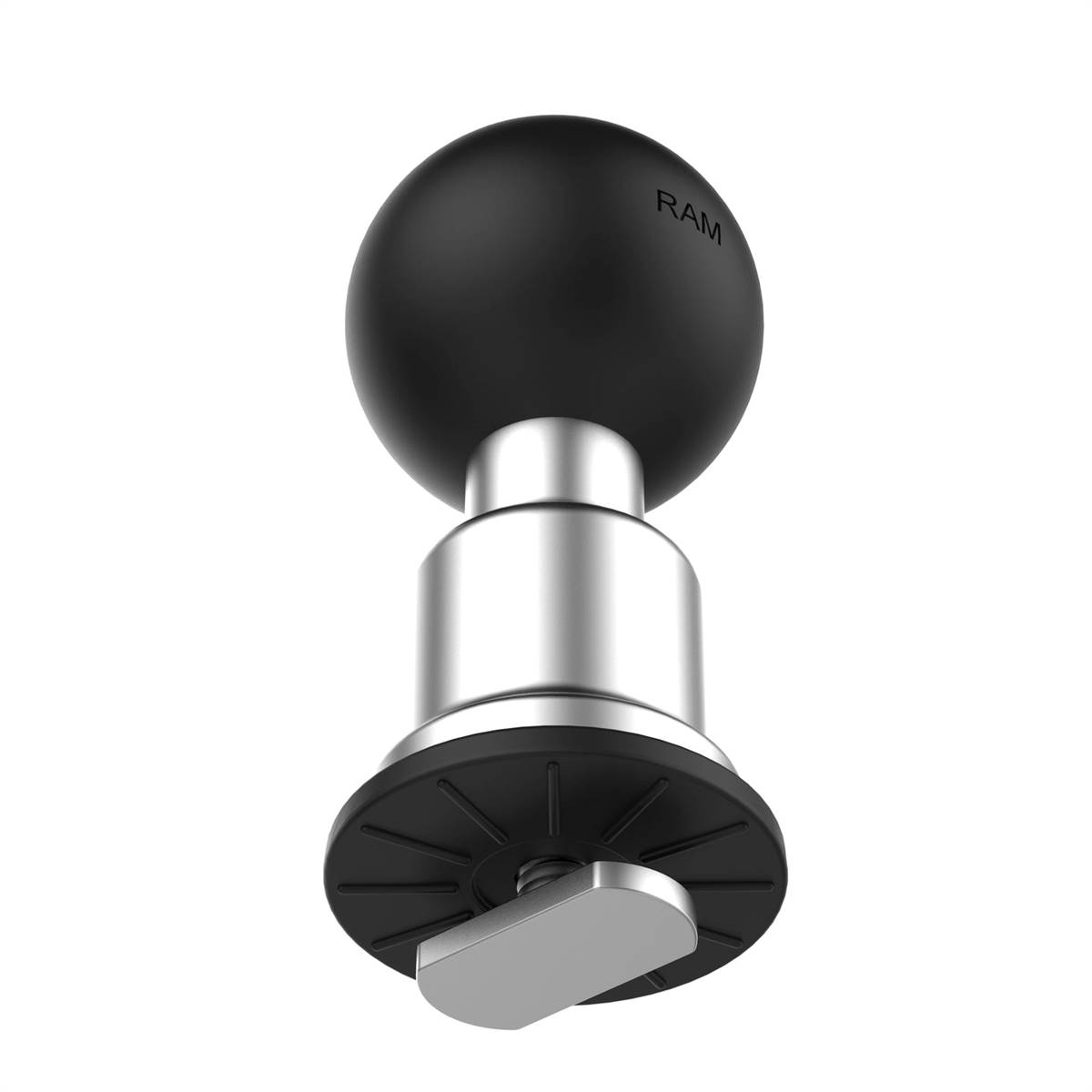

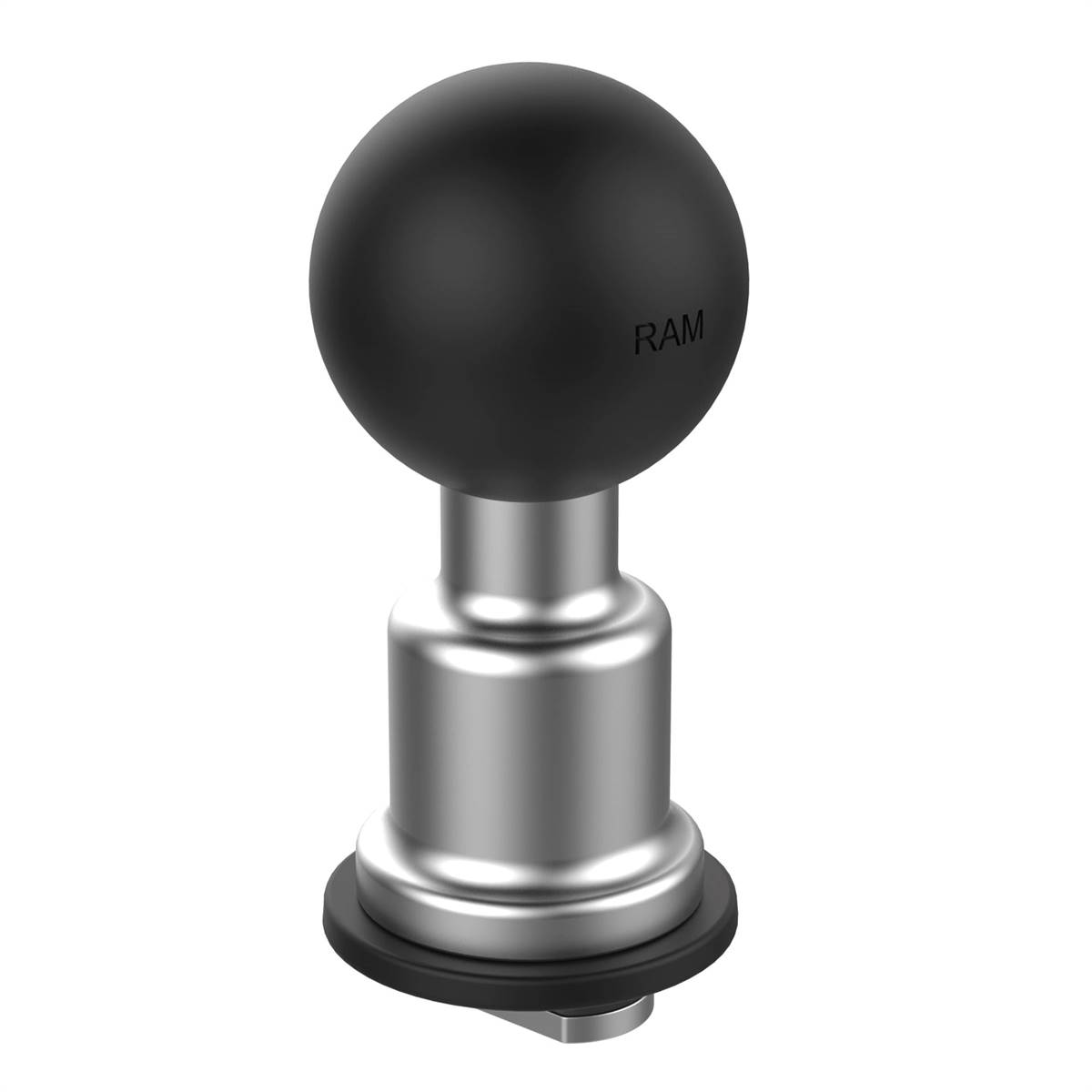

The RAM Track Ball is made up of a C size 1.5" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

FEATURES

Designed for track mounting systems including the RAM Tough-Track; includes 1.5" C size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt

Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten

Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments

Backed by a lifetime warranty

hardware included
(1) Friction Washer(1) 1/4"-20 x 7/8" T-Bolt

product dimensions
Plate Diameter: 1.25"Thread Depth: .875"

t bolt dimensions
.48" x .95"

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumStainless steel

packaging type
Poly Bag

Weight
0.26 lb
