RAM-A-101U-B_RAM Double Ball Diamond Plate Mount - A Si
RAM-A-101U-B_RAM Double Ball Diamond Plate Mount - A Si
Regular price
$56.49 USD
Regular price
Sale price
$56.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
A Size 9/16"
UPC:
793442410116
Mfg Part #:
RAM-A-101U-B
Availability:
In Stock
Part Number:
RAM-A-101U-B
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

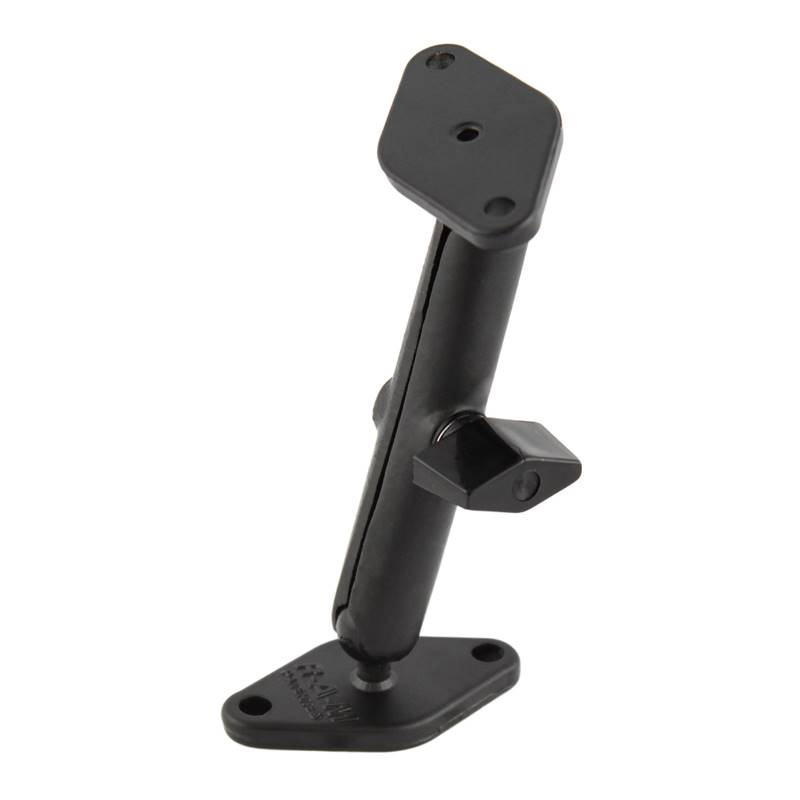

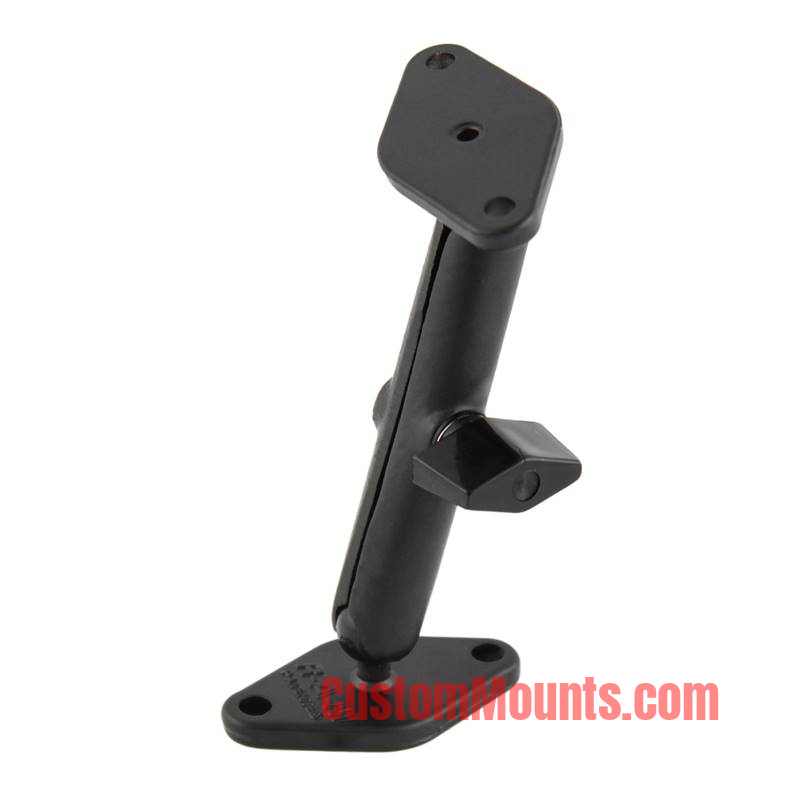

The RAM-A-101U-B consists of a long length double socket arm and two diamond bases. The diamond
bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center,
positioned at both ends of the diamond base. The hole pattern found on the diamond bases will
connect to many RAM cradles, as well as third party cradles including mounts with the industry
standard AMPS hole pattern. Designed into the mount is a 0.56" diameter patented rubber ball and
socket system with adjustment points at both socket ends of the arm.
SOCKET-TO-SOCKET LENGTH
3.12"
HOLE PATTERN
2-Hole AMPS 1.912"
BALL/SOCKET SIZE
A Size (9/16")
WEIGHT CAPACITY
.5 lb
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.22 lbs.
bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center,
positioned at both ends of the diamond base. The hole pattern found on the diamond bases will
connect to many RAM cradles, as well as third party cradles including mounts with the industry
standard AMPS hole pattern. Designed into the mount is a 0.56" diameter patented rubber ball and
socket system with adjustment points at both socket ends of the arm.
SOCKET-TO-SOCKET LENGTH
3.12"
HOLE PATTERN
2-Hole AMPS 1.912"
BALL/SOCKET SIZE
A Size (9/16")
WEIGHT CAPACITY
.5 lb
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.22 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:0.56" Rubber Ball Size
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.22 lbs.
