RAM-A-101U_RAM Double Ball Diamond Plate Mount - A Size
RAM-A-101U_RAM Double Ball Diamond Plate Mount - A Size
Regular price
$36.99 USD
Regular price
Sale price
$36.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
A Size 9/16"
UPC:
793442401015
Mfg Part #:
RAM-A-101U
Availability:
In Stock
Part Number:
RAM-A-101U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

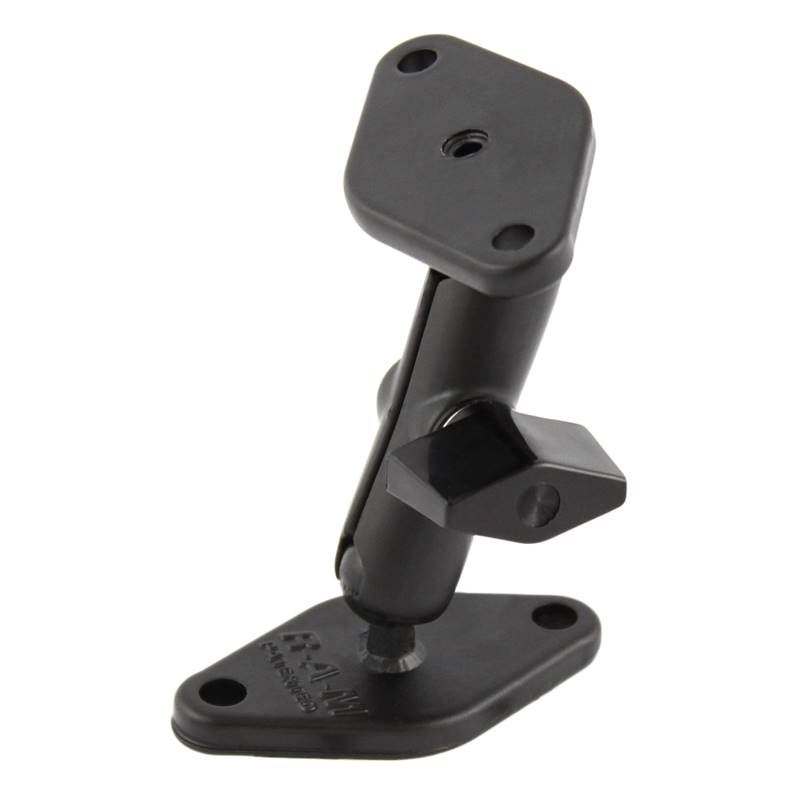

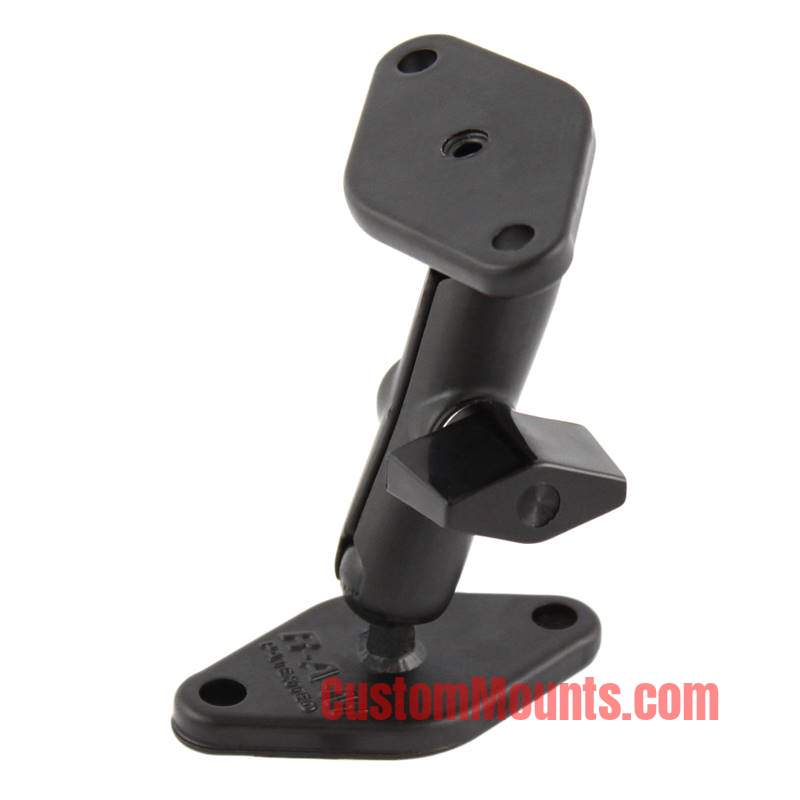

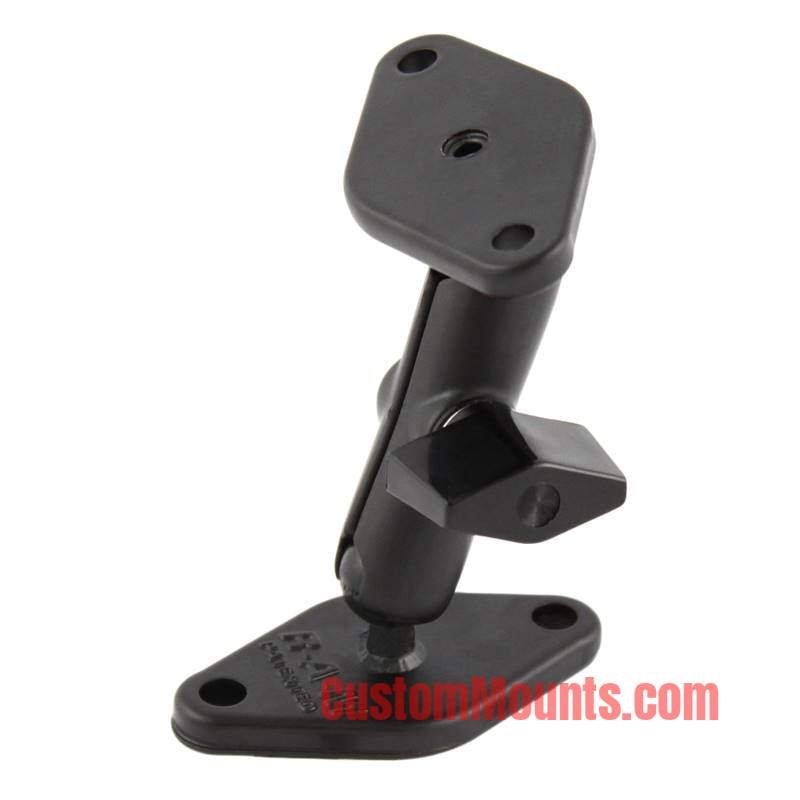

The RAM-A-101U consists of a double socket arm and two diamond bases. The diamond bases measure
2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both
ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM
cradles, as well as third party cradles including mounts with the industry standard AMPS hole
pattern. Designed into the mount is a 0.56" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm.
SOCKET-TO-SOCKET LENGTH
1.67"
HOLE PATTERN
2-Hole AMPS 1.912"
BALL/SOCKET SIZE
A Size (9/16")
WEIGHT CAPACITY
.5 lb
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.17 lbs.
2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both
ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM
cradles, as well as third party cradles including mounts with the industry standard AMPS hole
pattern. Designed into the mount is a 0.56" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm.
SOCKET-TO-SOCKET LENGTH
1.67"
HOLE PATTERN
2-Hole AMPS 1.912"
BALL/SOCKET SIZE
A Size (9/16")
WEIGHT CAPACITY
.5 lb
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.17 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:0.56" Rubber Ball Size
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.17 lbs.
