RAM Double U-Bolt Rail Mount for Smaller

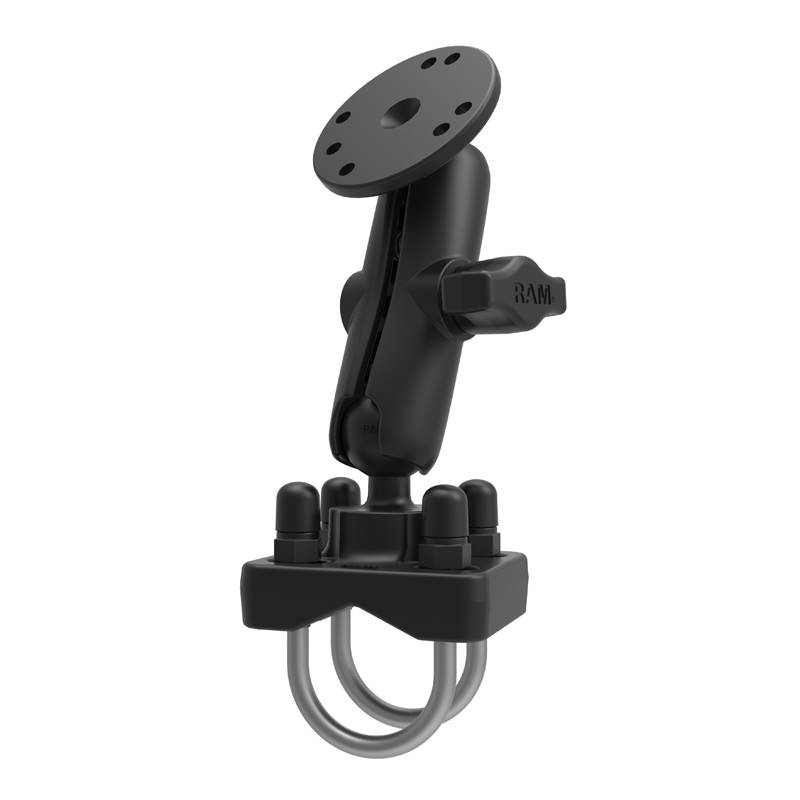

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the
universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to
1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system
with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for
almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

CLAMP RANGE
1" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.87 lbs.
