RAM Adhesive Double Ball Mount with 1

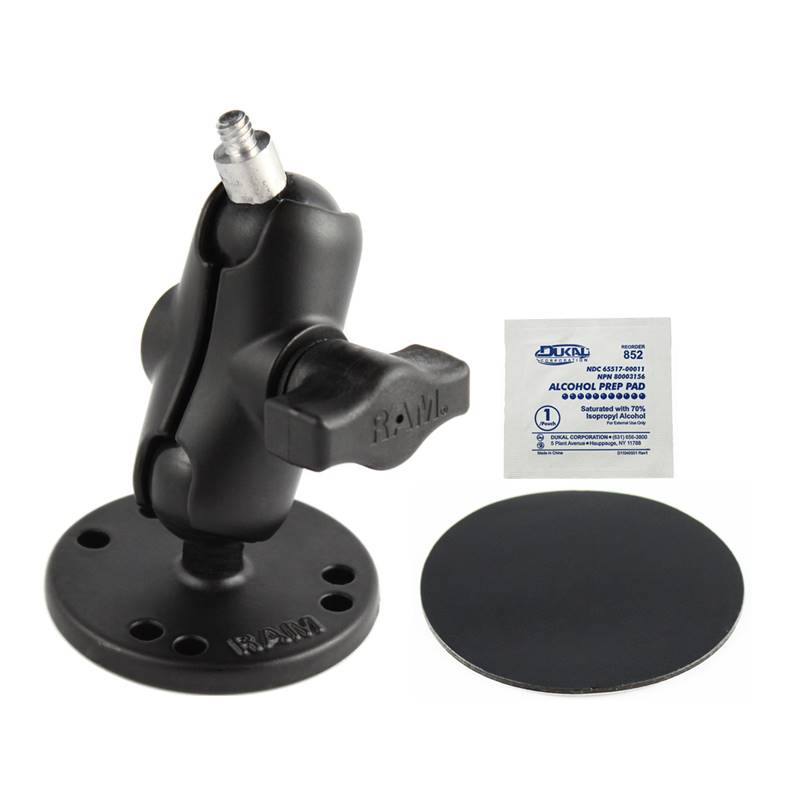

The RAM-B-101-A-237PU consists of a short double socket arm, 2.5" diameter round base, 2.5" round
PDA stick base and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. The male thread
matches most standard camera and camcorder female threads found on the bottom of the camera. The
round base contains pre-drilled holes, including the universal AMPs hole pattern. Designed into the
mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of
the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum
viewing angles.

HARDWARE INCLUDED
(1) 2 7/16" Double Adhesive Pad
(1) Alcohol Prep Pad

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.35 lbs.
