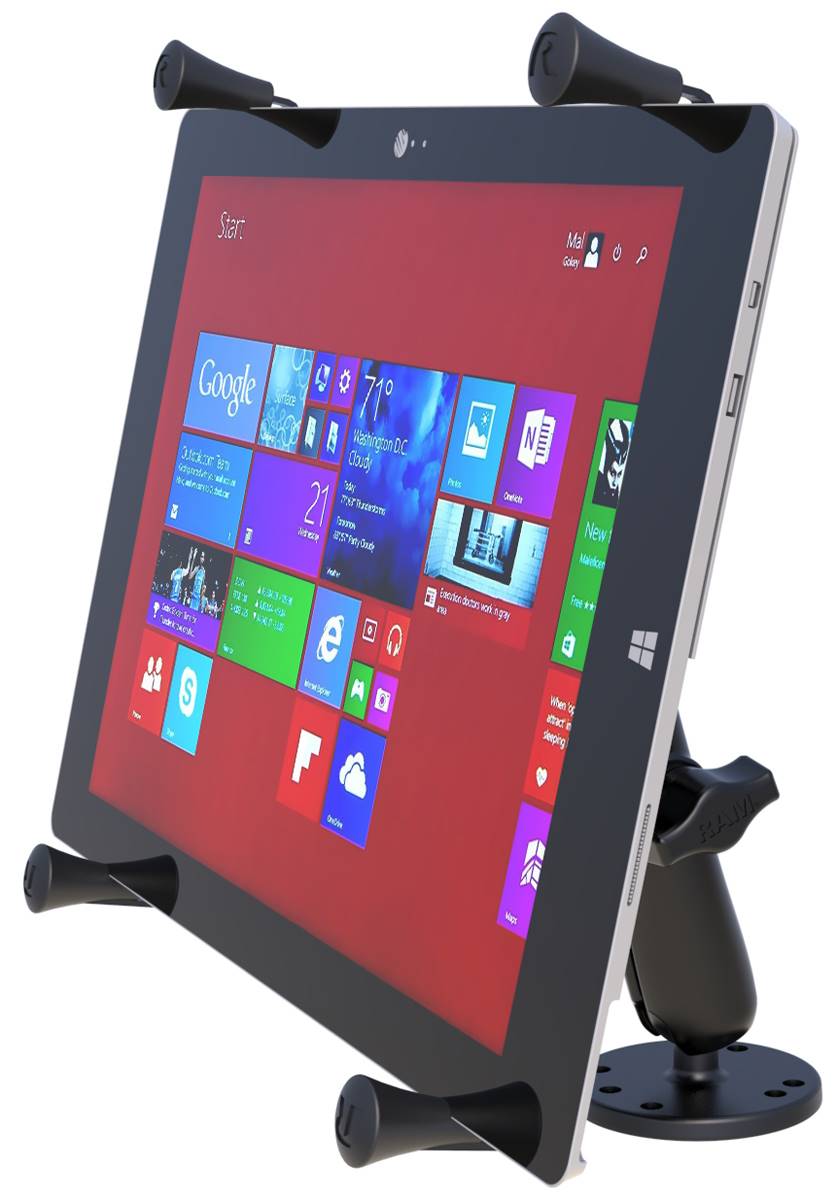

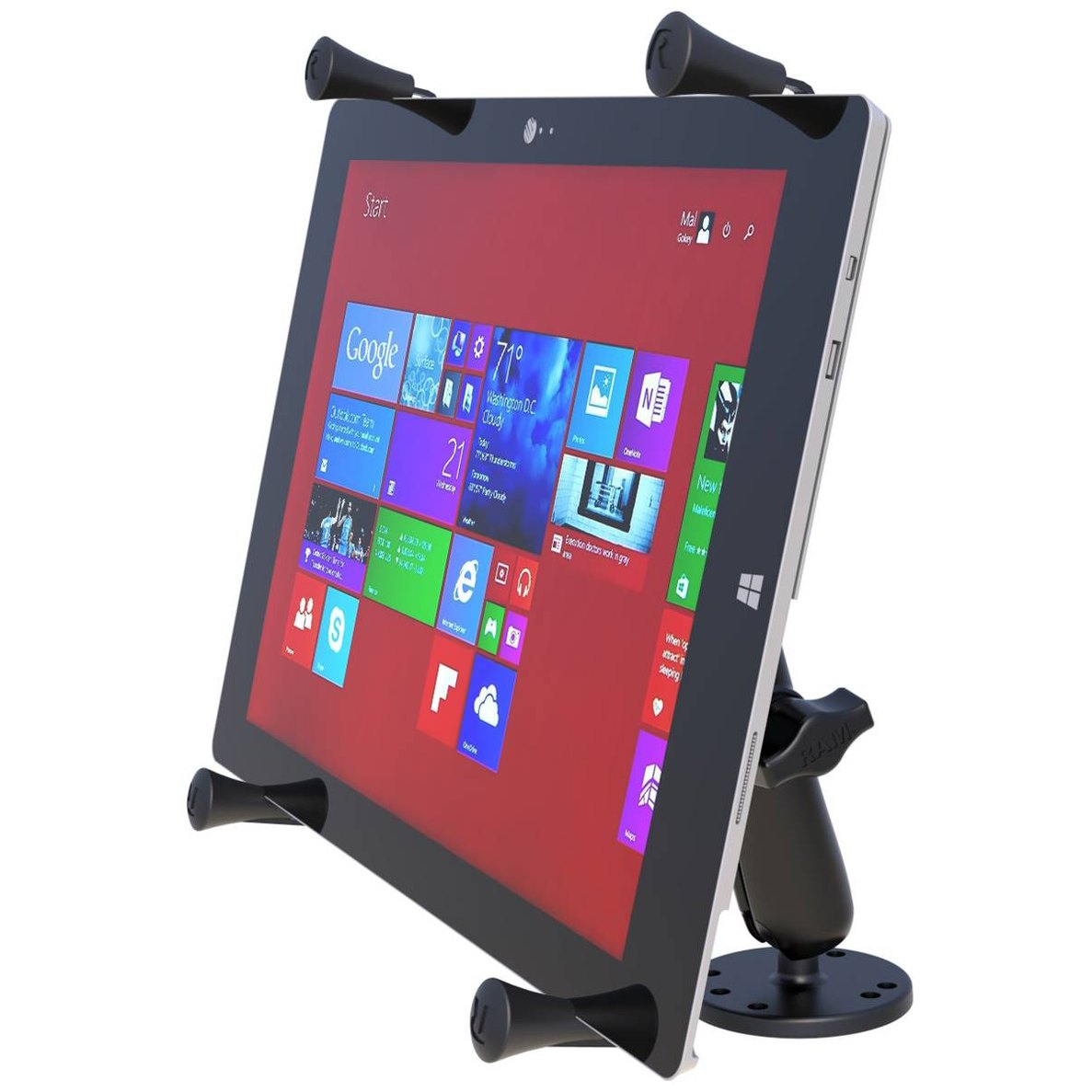

RAM X-Grip Drill-Down Double Ball Mou

The RAM-B-101-C-UN11U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole
pattern, LONG double socket arm and universal X-Grip clamping cradle for 12" tablets. The X-Grip
clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional
bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle
for quick release of your tablet. The X-Grip clamping cradle expands and contracts for perfect fit
of most 12" tablets with or without sleeves, as well as some smaller tablets. The X-Grip cradle is
compatible with handheld devices that will fit the dimensions listed below. It is important to
verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall
size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This holder is compatible with the iPad Pro 12.9 without case only.

FEATURES:
Complete flat surface, drill-down mounting solution for the RAM X-Grip 12" tablet holder

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
easy access grip knobs on the back of the holder allow for the quick release of your device

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.85 lbs.
