RAM-B-101-G2U_RAM Double Ball Mount with #6-32 Hardware
RAM-B-101-G2U_RAM Double Ball Mount with #6-32 Hardware
Regular price
$36.99 USD
Regular price
Sale price
$36.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442000836
Mfg Part #:
RAM-B-101-G2U
Availability:
In Stock
Part Number:
RAM-B-101-G2U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

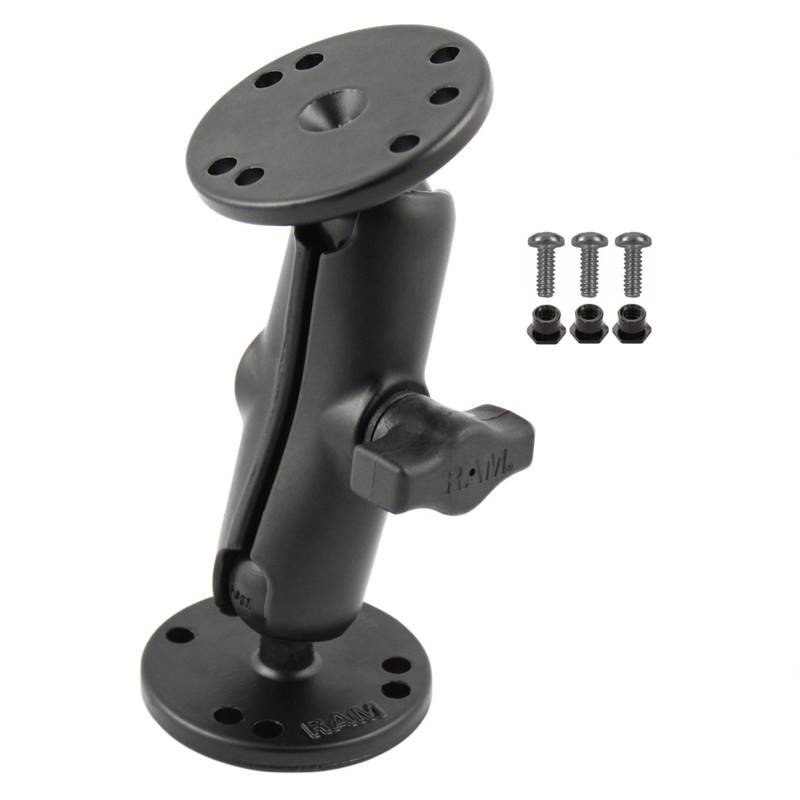

The RAM-B-101-G2U consists of a double socket arm and two 2.5" diameter round bases with the
universal AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and
socket system with adjustment points at both ends of the double socket arm. With a twist of the arm
knob, you can move the RAM-B-101-G2 mount to your optimum viewing position.
HARDWARE INCLUDED
(3) #6-32 x 3/8" Machine Screws
(3) #6-32 Nut Inserts
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.56 lbs.
universal AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and
socket system with adjustment points at both ends of the double socket arm. With a twist of the arm
knob, you can move the RAM-B-101-G2 mount to your optimum viewing position.
HARDWARE INCLUDED
(3) #6-32 x 3/8" Machine Screws
(3) #6-32 Nut Inserts
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.56 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.56 lbs.
