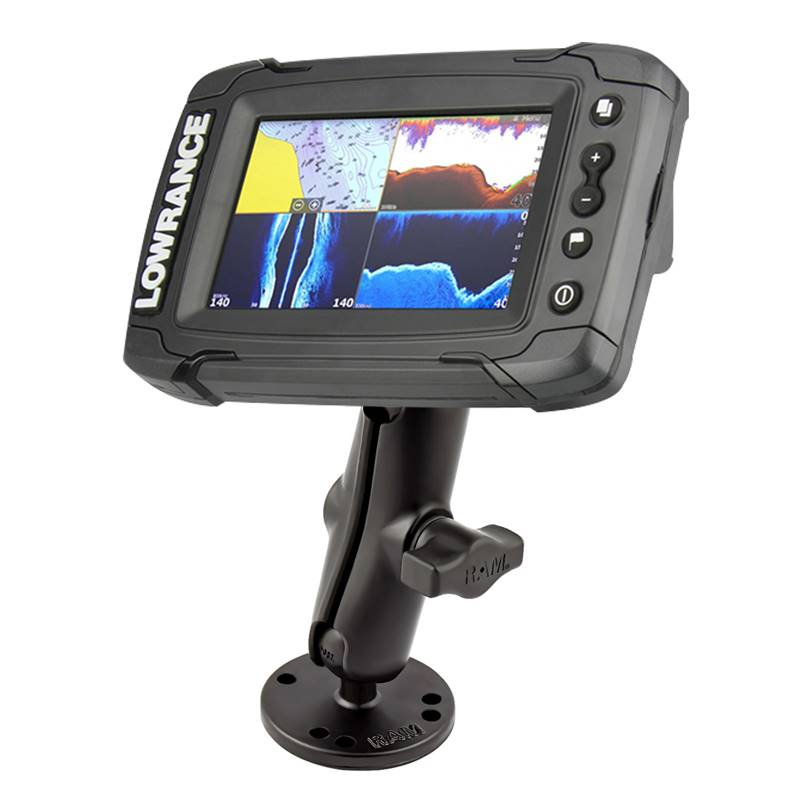

RAM Double Ball Mount for Lowrance Elite

The RAM-B-101-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern,
double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and
Hook-4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or
transfer your Fishfinder in seconds. Designed into the mount is a 1" diameter patented rubber ball
and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball
and socket technology allows for almost infinite adjustment and perfect viewing angles.

PRODUCT DIMENSIONS
Overall Height: 5"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail Box

ADDITIONAL INFORMATION
This product is not compatible with the standard Lowrance Elite-7.

WEIGHT
0.58 lbs.
