RAM Dashboard Mount with Backing Pla

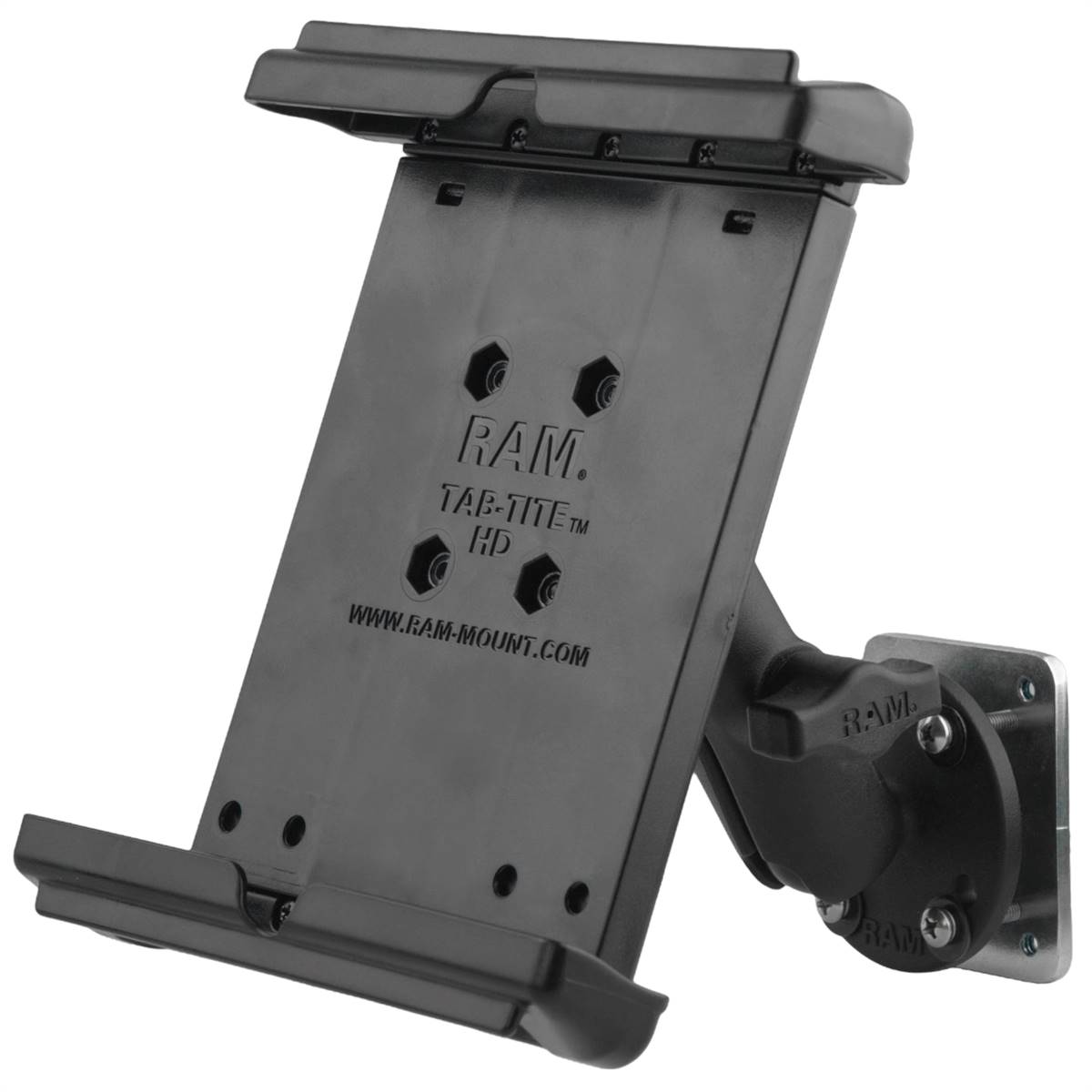

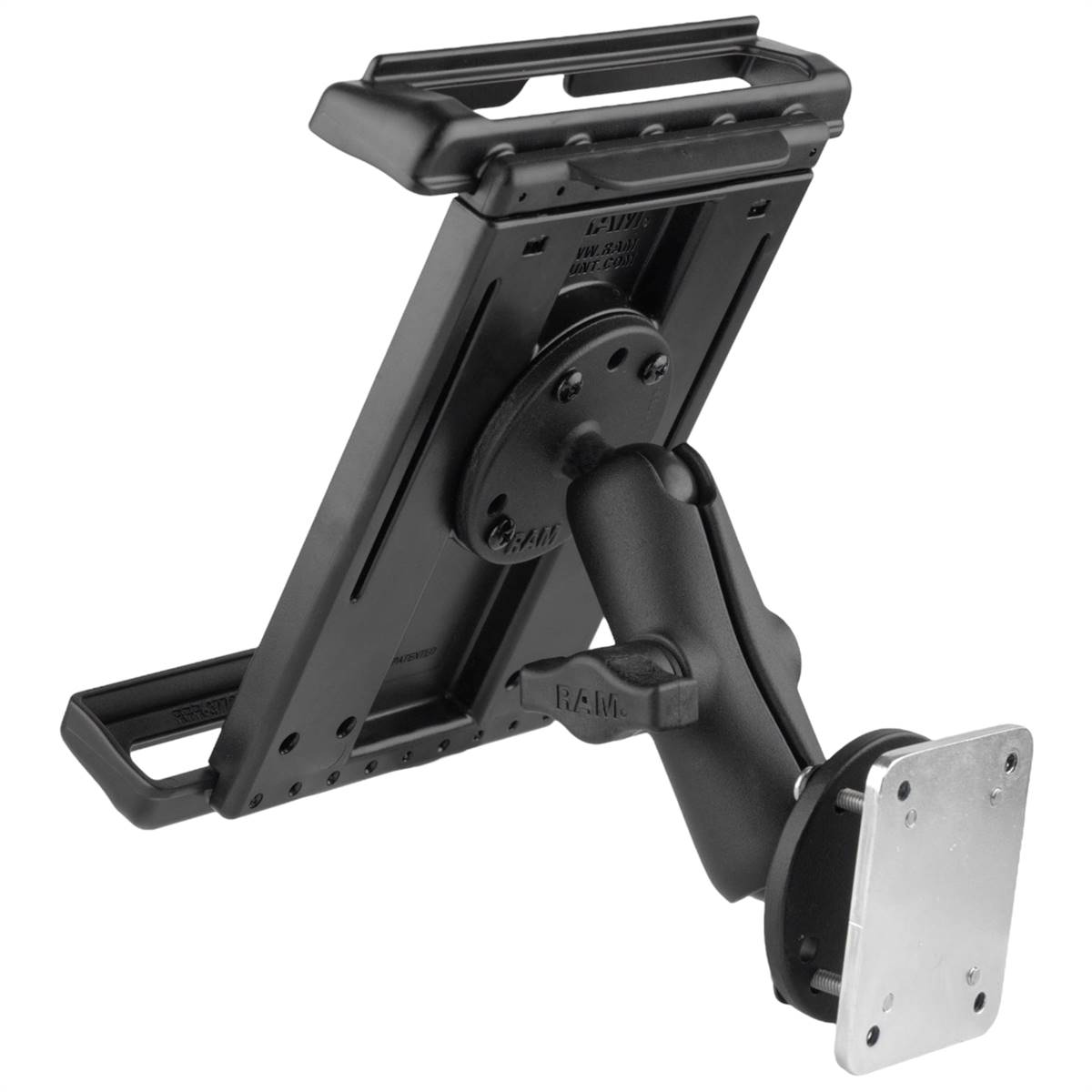

This vehicle kit consists of a RAM Tab-Tite spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

FEATURES

Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices

Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

hardware included
Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

holder dimensions
Height Range: 7.125" - 9.5"Width Range: 5.06" - 5.68"Depth Range: .13" - 1"

socket to socket length
3"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

plate size
2.5" Diameter

ball size
B Size (1")

weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lb

materials
Marine-grade aluminumHigh strength compositePowder coated steel

packaging type
Poly Bag

Weight
1.04 lb
