RAM Universal Double Ball Mount with Two R

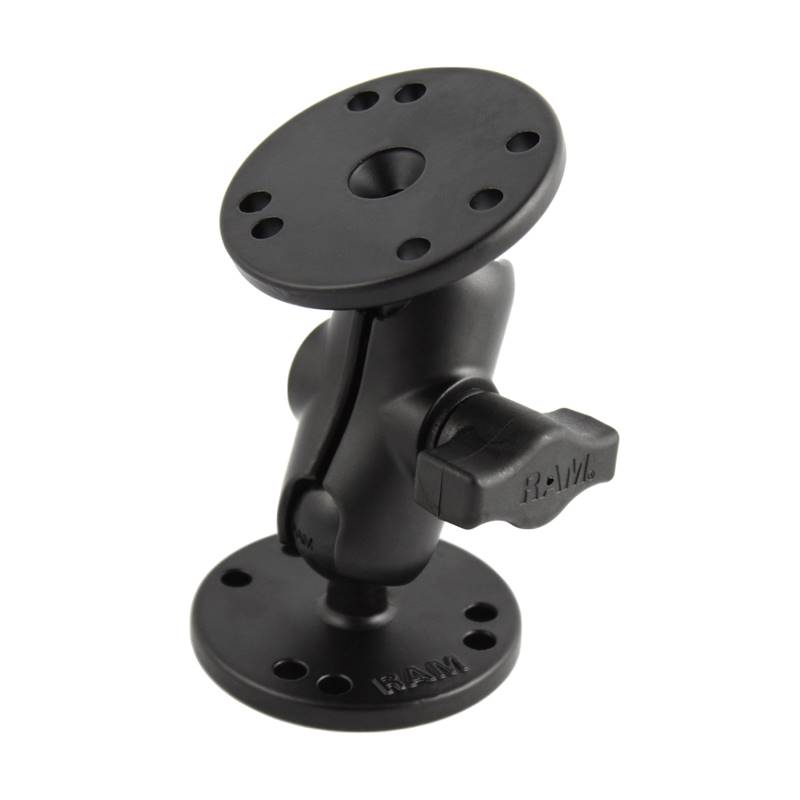

The RAM-B-101U-A consists of a SHORT double socket arm and two 2.5" diameter round bases that
contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber
ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the
round base adapter will connect to many RAM cradles, including all iPad cradles. The included RAM’s
patented design dampens shock and vibration, helping to extend the life of your device.

PRODUCT DIMENSIONS
Overall Height: 3.75"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for
attachment to compatible device holders

Includes two round ball bases and B size short length double socket arm; ball and socket technology
allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.44 lbs.
