RAM Double Ball Mount with Diamond Pla

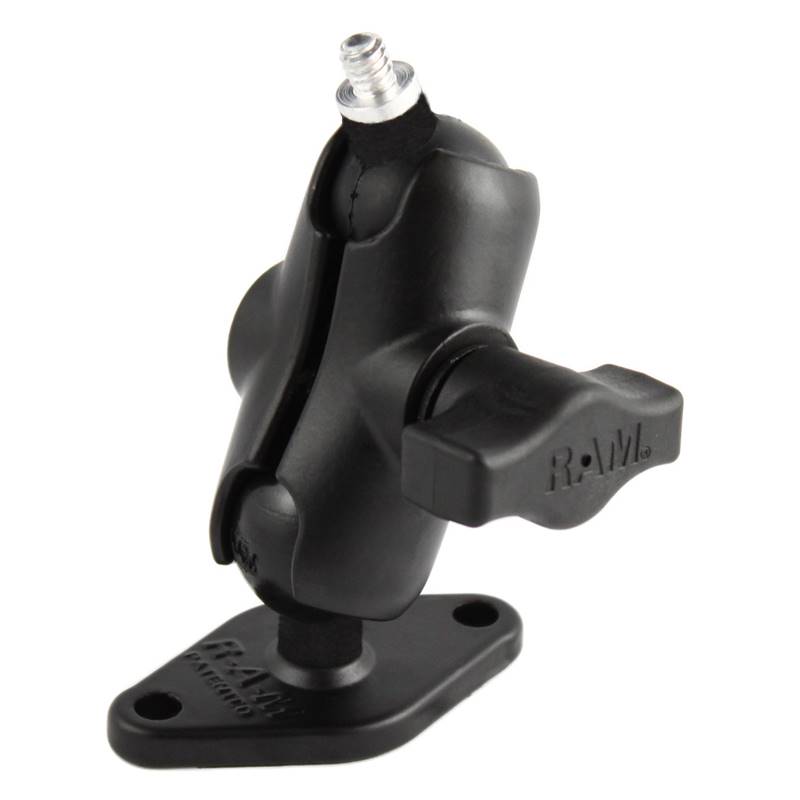

The RAM-B-102-A-237U consists of a short double socket arm, diamond base and 1" diameter rubber
ball, connected to a 1/4"-20 camera thread. The male thread matches most standard camera and
camcorder female threads found on the bottom of the camera. The diamond bases measure 2.43" x 1.31"
diamond base and contain two holes 1.912" from center to center, positioned at both ends of the
diamond base. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for
infinite articulation and optimum viewing angles.

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.31 lbs.
